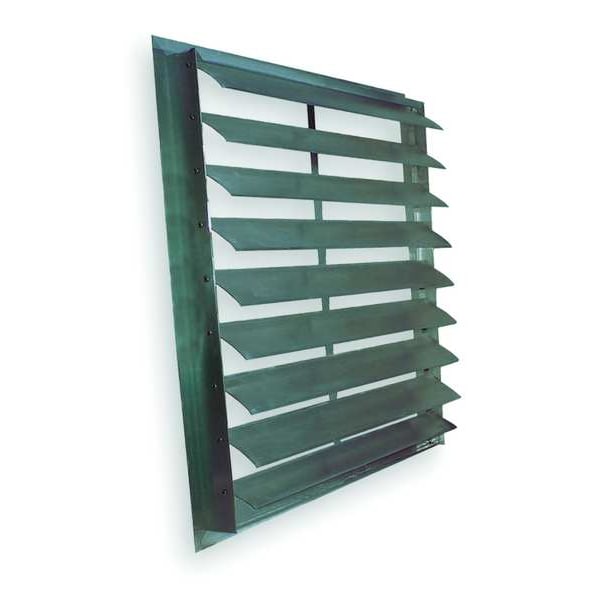

18 in 21"H-W 6.5"L Extrd Alu Backdraft Dampr, 18-1/2 in x 18-1/2 in, Aluminum
| Item | 21"H-W 6.5"L Extrd Alu Backdraft Dampr |
|---|---|
| Shutter Mounting Position | Vertical |
| Shutter Mounting Location | Wall |
| Shutter Construction Material | Extruded Aluminum Frame and Stainless Steel Tie Rods |
| Shutter Free Area | 2.043 sq ft |
| Shutter Opening Required | 18-1/2 in x 18-1/2 in |
| Shutter Overall Size | 21 in x 21 in |
| Fits Fan Dia. | 18 in |
| Blade Material | Aluminum |
| Max. Velocity | 3,000 fpm |
| Type | Gravity Operated, Single Panel |
| Shutter Overall Square | 21" x 21" |
| Frame Depth | 3 in |
| Flange Width | 1-1/2 in |
| Shutter Item | Backdraft Damper / Wall Shutter |
| For Use With | Vertical Mounted Exhaust Fans |
| Open Depth | 6-1/4 in |
| Frame Opening B | 18 in |
| Mounting Hole Size | Prepunched |
| Number of Panels | 1 |
| Frame Opening A | 18 in |
| Includes | Extruded Aluminum Louvers |
| Mounting Position | Vertical |
| Free Area | 2 sq ft |
| Maximum Air Velocity | 3,250 fpm |
| Series | EAS-HDGS |
| Overall Length | 6-1/2 in |
| Rough Opening Width | 18-1/2 in |
| Overall Diameter | 21 in |
| Maximum Pressure | 1 in wc |
| Mounting Hole Diameter | 1/4 in |
| Rough Opening Length | 18-1/2 in |
| Opening Type | Gravity |
| ACMA Leakage Class | Not Applicable |
| Maximum Ambient Temperature | 180 Degrees F |
| For Duct Shape | Not Applicable |
| Flange Type | Rear Flange |
| Fusible Link Temperature | Not Applicable |
| Frame Opening Width | 18-1/2 in |
| Rough Opening Shape | Square |
| Bushing Material | Stainless Steel |
| Damper Finish | Mill Finish |
| For Nominal Duct Diameter | Not Applicable |
| Tie-Rod Material | Tie Rods, Stainless Steel Frame |
| Damper Application | Backdraft |
| Overall Width | 21 in |
| Closure Velocity Rating | 3,250 fpm |
| Switch Action | Normally Closed |
| Frame Material Thickness | 0.8 in |
| Seal Material | Not Applicable |
| Overall Height | 21 in |
| Pressure Drop @ 1000 fpm (AMCA 5.2) | Not Applicable |
| Closure Type | Gravity |
| Fits Fan Diameter | 18 in |
| Blade Orientation | Parallel Blades |
| Frame Opening Height | 18-1/2 in |
| For Fuel Type | Not Applicable |
| Blade Seal Material | Felt |
| Airflow Direction | Horizontal |
| Single Acting/Double Acting | Single Acting |
| Blade Type | Flat Blade |
| Damper Type | Static |
| Frame Less Flange | 18 |
| Blade Material Thickness | 0.8 in |
| Frame Material | Aluminum |
| Rough Opening Diameter | 18-1/2 in |
| Connection Type | Not Applicable |
| Counterbalanced | No |
| Country of Origin (subject to change) | United States |
| Package Quantity | 1 |
