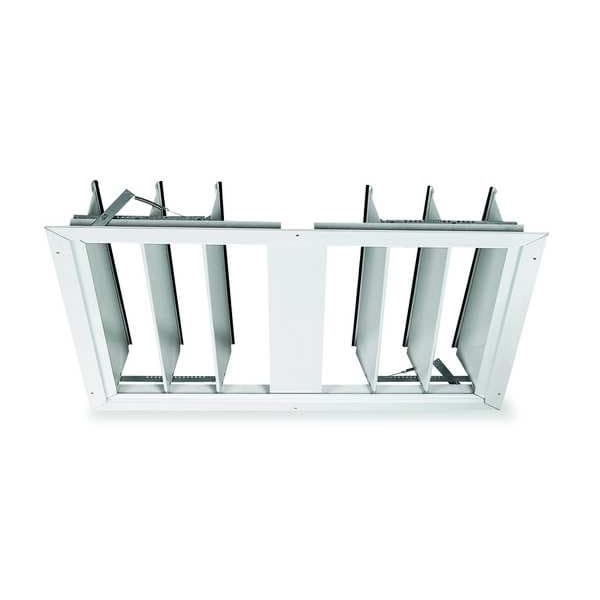

24 in Whole House Fan Premium Ceiling Truss Shutter / Ceiling Shutter
| Item | 26"H-W Aluminum Ceiling Truss Damper |
|---|---|
| Shutter Mounting Position | Horizontal |
| Shutter Mounting Location | Ceiling |
| Shutter Construction Material | Extruded Aluminum Frame and G-90 Galvanized Tie Rods |
| Shutter Free Area | 4.652 sq ft |
| Shutter Opening Required | 30 in x 24 in |
| Shutter Overall Size | 32 in x 26 in |
| Fits Fan Dia. | 24 in |
| Blade Material | Aluminum |
| Max. Velocity | 1500 FPM |
| Type | Gravity Operated, Single Panel |
| Width | 26 in |
| For Use With | 24 in Whole House Fans |

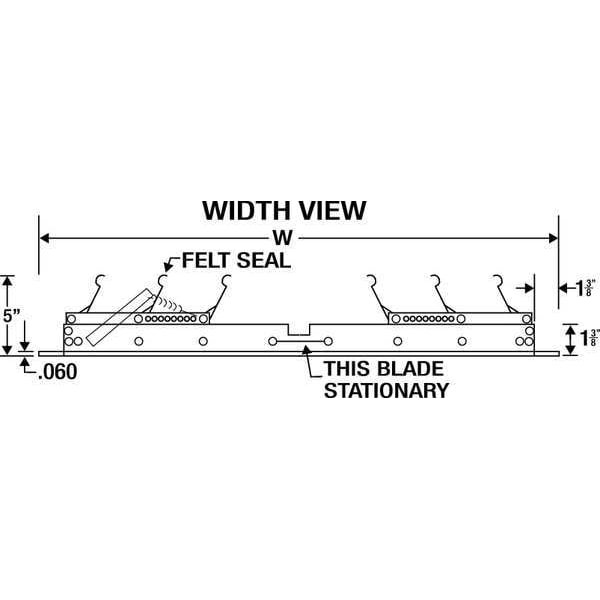

| Open Depth | 5 in |
| Mounting Hole Size | Prepunched |
| Number of Panels | 1 |
| Frame Depth | 1-3/8 in |
| Length | 32 in |
| Shutter Overall Square | 23" |
| Shutter Item | Whole House Fan Premium Ceiling Truss Shutter |
| Flange Width | 1-5/8 in |
| Mounting Position | Horizontal |
| Free Area | 4.7 sq ft |
| Rough Opening Length | 30 in |
| Flange Type | Reversed Flange |
| Opening Type | Gravity |
| Damper Finish | Baked Enamel |
| Maximum Air Velocity | 1,500 fpm |
| Tie-Rod Material | Tie Rods, Galvanized Steel Frame |
| Frame Material Thickness | 0.1 in |
| Overall Width | 26 in |
| Rough Opening Width | 24 in |
| Color | White |
| Series | CTRF |
| Rough Opening Shape | Rectangular |
| Mounting Hole Diameter | 1/4 in |
| Maximum Pressure | 1 in wc |
| Counterbalanced | Yes |
| Frame Material | Aluminum |
| Airflow Direction | Horizontal |
| Overall Height | 32 in |
| Blade Seal Material | Felt |
| Closure Type | Gravity |
| Closure Velocity Rating | 1,500 fpm |
| Fits Fan Diameter | 24 in |
| Switch Action | Normally Closed |
| Bushing Material | Stainless Steel |
| Blade Material Thickness | 26 ga |
| Country of Origin (subject to change) | United States |
| Package Quantity | 1 |
