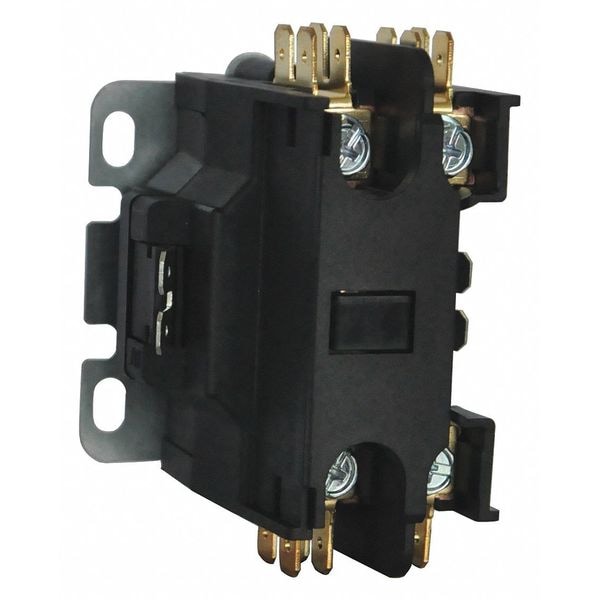

Contactor de propósito definido no reversible de 24VCA, 1 polo 30A, normas: UL
| Item | Definite Purpose Magnetic Contactor |
|---|---|
| Full Load Amps-Inductive | 30 A |
| Full Load Amps-Resistive | 40 A |
| Action | Non-Reversing |
| Number of Poles | 1 |
| Coil Volts | 24V AC |
| Reversing | No |
| HP @ 1 Phase - 120V | 1 hp |
| HP @ 1 Phase - 230V | 2 |
| HP @ 1 Phase - 240V | 2 hp |
| Height | 2.64 in |
| Width | 2.03 in |
| Depth | 3.41 in |
| Enclosure NEMA Rating | No Enclosure |
| Hz | 50/60 |
| Enclosure Type | Open |
| Standards | CE, cRUus |
| Series | Compact |
| Includes | Not Applicable |
| Phase | Single |
| Frequency | 50/60 Hz |
| LED Lighting Current Rating | Not Applicable |
| Status Indicator | Mechanical Flag |
| Horsepower @ Three Phase - 240V AC | Not Rated |
| Mounting Style | Through Panel |
| Terminal Connection Type | Terminals |
| Horsepower @ Single Phase - 120V AC | 1 HP |
| Number of Normally Closed Main Contacts | 0 |
| Mounting Hole Distance - Height | 1.63 in |
| NEMA Enclosure Rating | No Enclosure |
| Frame Size | Not Applicable |
| Contactor Style | HVACR Definite Purpose Contactor |
| NEMA Enclosure Material | Not Applicable |
| Mounting Postion | Vertical, Horizontal |
| Input Control Type | Not Applicable |
| Tungsten Lighting Current Rating | Not Applicable |
| Coil Voltage | 24V AC |
| Overall Height | 2.32 in |
| Maximum Voltage Rating | 600 V AC |
| Full Load Current - Resistive | 40 A |
| Fluorescent Lighting Current Rating | Not Applicable |
| Horsepower @ Three Phase - 208V AC | Not Rated |
| Horsepower @ Single Phase - 240V AC | 2 HP |
| Minimum Operating Temperature | -40 deg F |
| Resistance Properties | Not Applicable |
| Includes Shunt | Single Pole with Shunt |
| Mechanical Operating Durability | 500,000 |
| Full Load Current - Inductive | 30 A |
| Electrical Operating Durability | 200,000 |
| Overall Width | 2.05 in |
| Maximum Operating Temperature | 158 deg F |
| Mounting Hole Distance - Width | 1.61 in |
| Reversing Capability | Non-Reversing |
| Contact Material | Silver Cadmium Oxide |
| Overall Depth | 3.19 in |
| Response Time | 20 msec |
| Horsepower @ Three Phase - 600V AC | Not Rated |
| Horsepower @ Three Phase - 480V AC | Not Rated |
| IP Rating | Not Applicable |
| Number of Terminals | 6 |
| Mounting Hole Diameter | Not Applicable |
| Auxiliary Contact Module Capacity | Not Applicable |
| Locked Rotor Load | 120 A @ 600V AC, 150 A @ 480V AC, 180 A @ 240/277V AC |
| Number of Normally Open Main Contacts | 1 |
| Package Quantity | 1 |
