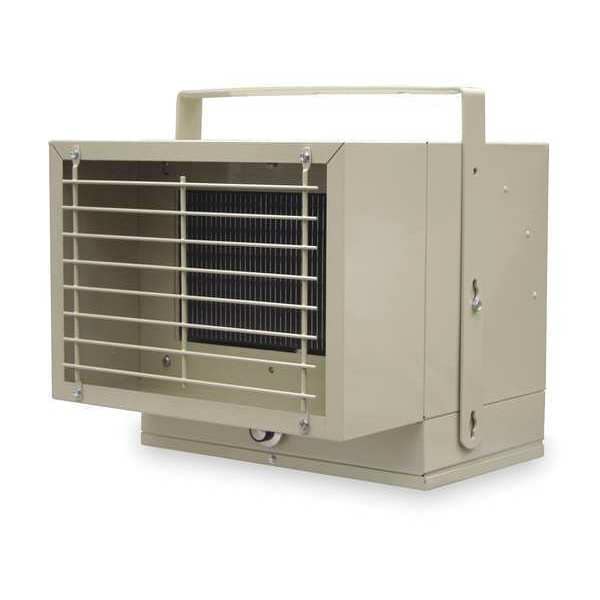

2.5/1.95kW Electric Utility Heater, 1-Phase, 240/208V
| Item | Electric Plenum Heater |
|---|---|
| Electric Heater Item | Electric Utility Heater |
| kW | 2.5/1.95 |
| BtuH | 8530/6398 |
| Heater Voltage | 208/240VAC |
| Phase | 1 |
| Amps AC | 10.7/9.42 |
| Electric Heater Phase | 1 |
| Includes | Mounting Bracket, Thermostat with 40 Degrees F to 90 Degrees F |
| Air Flow | 150/130 cfm |
| Width | 14 in |
| Features | NEMA 12 Control Box Construction, High Limit Thermal Protection |
| Standards | cETLus, City of Chicago Codes for Plenum Use |
| Hz | 50/60 |
| Housing Material | Steel |
| Manufacturers Warranty Length | 5 yr. on Elements, 1 yr. All Other Parts |
| Heater Housing Finish | Powder Coated |
| Height | 12-1/2 in |
| Depth | 14 in |
| Temp. Rise | 60/46 Degrees F |
| Overall Height | 12-1/2 in |
| Voltage | 208/240V AC |
| Overall Width | 14 in |
| Overall Depth | 14 in |
| Amperage | 10.7/9.4A |
| Housing Finish | Powder Coated |
| Air Temp. Rise | 46 deg F, 60 deg F |
| Overall Dimensions - H x W x D | 12-1/2 in x 14 in x 14 in |
| Housing Color | Beige |
| Wattage Output | 2.5kW/1.9kW |
| Control Type | Mechanical Selector Dial |
| Freeze Protection | Yes |
| Heating Capacity | 6,398 BtuH, 8,530 BtuH |
| Frequency | 50/60 Hz |
| Heating Method | Fan Forced |
| Country of Origin (subject to change) | United States |
| Package Quantity | 1 |
