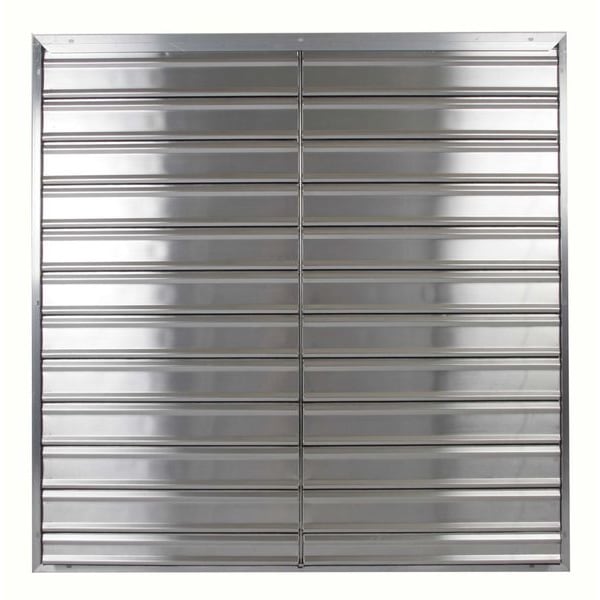

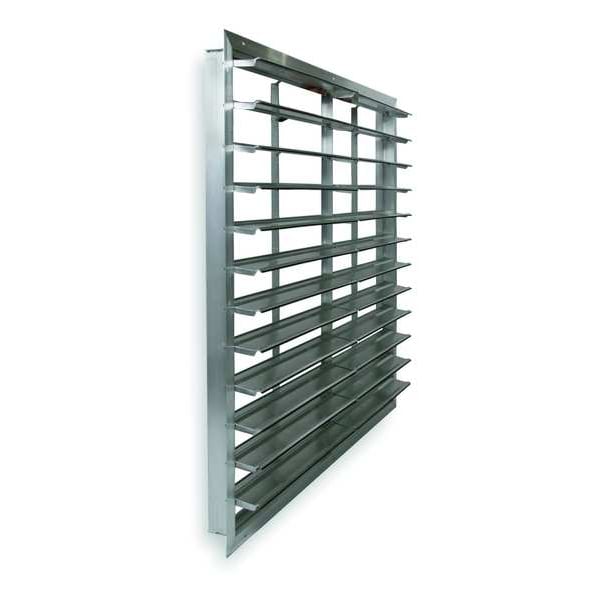

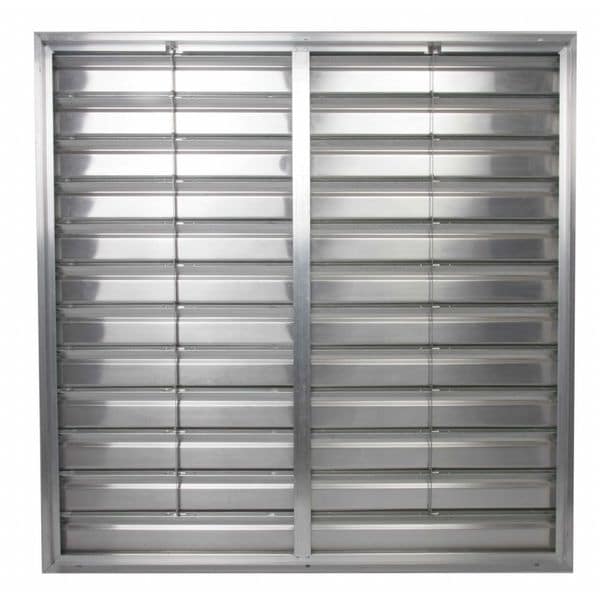

48 in 51"H-W 5.75"L Alu Wall Exhaust Shutter, 48-1/2 in x 48-1/2 in, Aluminum
| Item | 51"H-W 5.75"L Alu Wall Exhaust Shutter |
|---|---|
| Shutter Mounting Position | Vertical |
| Shutter Mounting Location | Wall |
| Shutter Construction Material | Extruded Aluminum Frame and Galvanized Tie Rods |
| Shutter Free Area | 12.924 sq ft |
| Shutter Opening Required | 48-1/2 in x 48-1/2 in |
| Shutter Overall Size | 51 in x 51 in |
| Fits Fan Dia. | 48 in |
| Blade Material | Aluminum |
| Max. Velocity | 2500 FPM |
| Type | Gravity Operated, Double Panel |
| Shutter Overall Square | 51" x 51" |
| Flange Width | 1-1/2 in |
| Number of Panels | 2 |
| Frame Opening A | 48 in |
| Frame Opening B | 48 in |
| Shutter Item | Backdraft Damper / Wall Shutter, Front Flange |
| Frame Depth | 3 in |
| Open Depth | 5-3/4 in |
| For Use With | Vertical Mounted Exhaust Fans |
| Mounting Hole Size | Prepunched |
| Includes | Prepunched Mounting Holes; Felt edged Counterbalanced Louvers; Weep Holes In Frame Bottom |
| Mounting Position | Vertical |
| Free Area | 12.9 sq ft |
| Seal Material | Not Applicable |
| Frame Less Flange | 48 |
| Fusible Link Temperature | Not Applicable |
| Flange Type | Front Flange |
| Bushing Material | Stainless Steel |
| For Nominal Duct Diameter | Not Applicable |
| Pressure Drop @ 1000 fpm (AMCA 5.2) | Not Applicable |
| Rough Opening Diameter | 48-1/2 in |
| Frame Opening Width | 48 in |
| For Duct Shape | Not Applicable |
| Blade Type | Flat Blade |
| Switch Action | Normally Closed |
| Rough Opening Width | 48-1/2 in |
| Series | EASR |
| Airflow Direction | Horizontal |
| Overall Height | 51 in |
| Frame Opening Height | 48 in |
| Frame Material Thickness | 0.8 in |
| Overall Width | 51 in |
| Maximum Pressure | 1 in wc |
| Maximum Ambient Temperature | 180 Degrees F |
| Counterbalanced | Yes |
| Frame Material | Aluminum |
| Damper Application | Backdraft |
| For Fuel Type | Not Applicable |
| Blade Orientation | Parallel Blades |
| Minimum Ambient Temperature | -40 Degrees F |
| Overall Diameter | 51 in |
| ACMA Leakage Class | Not Applicable |
| Overall Length | 5-3/4 in |
| Maximum Air Velocity | 2,500 fpm |
| Color | White |
| Damper Finish | Mill Finish |
| Blade Seal Material | Felt |
| Rough Opening Shape | Square |
| Closure Velocity Rating | 2,500 fpm |
| Closure Type | Gravity |
| Tie-Rod Material | Tie Rods, Galvanized Steel Frame |
| Damper Type | Static |
| Single Acting/Double Acting | Single Acting |
| Blade Material Thickness | 26 ga |
| Mounting Hole Diameter | 1/4 in |
| Connection Type | Not Applicable |
| Opening Type | Gravity |
| Fits Fan Diameter | 48 in |
| Rough Opening Length | 48-1/2 in |
| Country of Origin (subject to change) | United States |
| Package Quantity | 1 |
