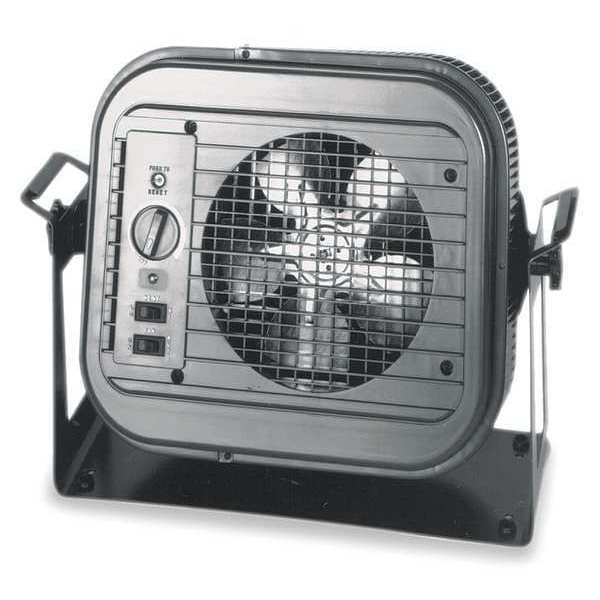

5/3.3/3.7/2.5kW Electric Utility Heater, 1-Phase, 240/208V
| Item | Electric Wall & Ceiling Unit Heater |
|---|---|
| Electric Heater Item | Electric Utility Heater |
| kW | 5.0/3.3 3.7/2.5 |
| BtuH | 17065/11372, 12800, 8533 |
| Heater Voltage | 208/240VAC |
| Phase | 1 |
| Amps AC | 20.8/13.8 17.8/12.0 |
| Electric Heater Phase | 1 |
| Includes | Ceiling/Wall Mounting Bracket with Pre Drilled 16 in O.C. Holes, Doubles as Handle or Floor Stand |
| Hz | 60 |
| Height | 16 in |
| Housing Material | Steel |
| Heater Housing Finish | Painted |
| Air Flow | 210 cfm |
| Manufacturers Warranty Length | 1 yr, 5 yr |
| Width | 21 in |
| Depth | 8 in |
| Standards | UL-CUL, Meets NEC and OSHA Requirements |
| Features | Thermostat, Totally Enclosed Permanently Lubricated Fan Motor, High/Low Heat Selector Switch, Fan Only Switch |
| Temp. Rise | 71 deg F |
| Vertical Floor Coverage | 24 ft |
| Overall Height | 16 in |
| Housing Finish | Painted |
| Wattage Output | 2.5kW/3.7kW, 3.3kW/5kW |
| Voltage, Phase | 208/240V AC, 1-phase |
| Overall Width | 21 in |
| Heating Capacity | 11,372/17,065 BtuH, 8533/12,800 |
| Air Temp. Rise | 71 deg F |
| Heating Method | Fan Forced |
| Control Type | Mechanical Selector Dial |
| Housing Color | Gray |
| Amperage | 12A/17.8A, 13.8A/20.8A |
| Overall Dimensions - H x W x D | 16 in x 21 in x 8 in |
| Overall Depth | 8 in |
| Vertical Mounting H | 15 ft |
| Horizontal Air Throw | 12 ft |
| Voltage | 208/240V AC |
| Frequency | 60 Hz |
| Contactor Coil Voltage | 240V AC |
| Requires | Mounting Bracket and Control Included |
| Country of Origin (subject to change) | United States |
| Package Quantity | 1 |
