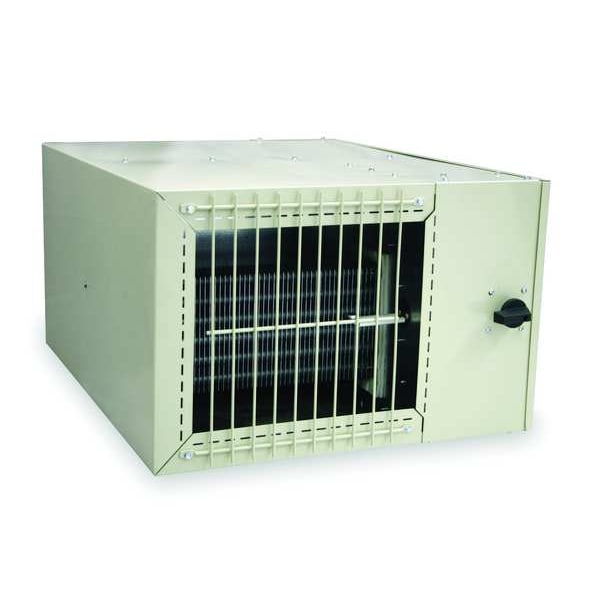

5kW Electric Fan Coil Heater, 3-Phase, 480V
| Heater Voltage | 480VAC |
|---|---|
| BtuH | 17,065 |
| Amps AC | 6.51 |
| Mounting Type | Plenum |
| Phase | 3 |
| Item | Electric Plenum Heater |
| kW | 5 |
| Hz | 60 |
| CFM Output Low | 350 |
| Width | 24 in |
| Standards | cETLus Listed |
| Depth | 19-1/2 in |
| Features | Auto Reset Thermal Cutout, Disconnect Switch, Automatic Fan Delay, 24V Control Circuit, Semi Enclosed Motor |
| Color | Beige |
| CFM Output High | 400 |
| Height | 12-1/2 in |
| Housing Material | Steel |
| Voltage | 480 V AC |
| Heating Capacity | 17,065 BtuH |
| Air Temp. Rise | 39 deg F, 45 deg F |
| Overall Depth | 19-1/2 in |
| Housing Color | Beige |
| Housing Finish | Powder Coated |
| Includes | Built-In Disconnect |
| Heating Method | Fan Forced |
| Amperage | 6.5 A |
| Overall Width | 24 in |
| Air Flow | 350/400 cfm |
| Wattage Output | 5 kW |
| Overall Height | 12-1/2 in |
| Frequency | 60 Hz |
| Freeze Protection | No |
| Overall Dimensions - H x W x D | 12-1/2 in x 24 in x 19-1/2 in |
| Control Type | Mechanical Selector Dial, Thermostat |
| Country of Origin (subject to change) | United States |
| Package Quantity | 1 |
