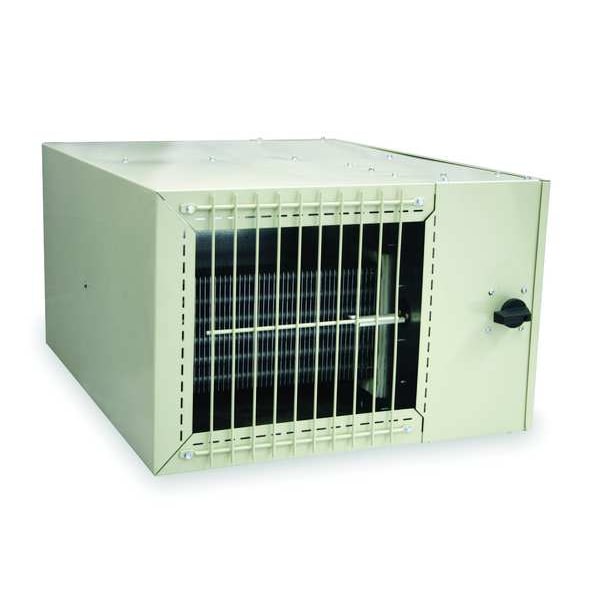

7.5kW Electric Fan Coil Heater, 3-Phase, 208V
| Heater Voltage | 208VAC |
|---|---|
| BtuH | 25,598 |
| Amps AC | 22.62 |
| Mounting Type | Plenum |
| Phase | 3 |
| Item | Electric Plenum Heater |
| CFM Output High | 1,000 |
| Depth | 18 in |
| Features | Auto Reset Thermal Cutout, Disconnect Switch, Automatic Fan Delay, 24V Control Circuit, Semi Enclosed Motor |
| Color | Beige |
| Width | 35-3/8 in |
| kW | 7.5 |
| CFM Output Low | 850 |
| Standards | cETLus Listed |
| Height | 17-7/8 in |
| Hz | 60 |
| Air Flow | 850/1,000 cfm |
| Heating Capacity | 25,598 BtuH |
| Control Type | Mechanical Selector Dial, Thermostat |
| Freeze Protection | No |
| Includes | Mounting Bracket, Built-In Disconnect |
| Housing Color | Beige |
| Housing Material | Steel |
| Voltage | 208 V AC |
| Housing Finish | Powder Coated |
| Wattage Output | 7.5 kW |
| Amperage | 22.6 A |
| Overall Height | 17-7/8 in |
| Heating Method | Fan Forced |
| Overall Width | 35-3/8 in |
| Overall Dimensions - H x W x D | 17-7/8 in x 35-3/8 in x 18 in |
| Frequency | 60 Hz |
| Air Temp. Rise | 24 deg F, 28 deg F |
| Overall Depth | 18 in |
| Country of Origin (subject to change) | United States |
| Package Quantity | 1 |
