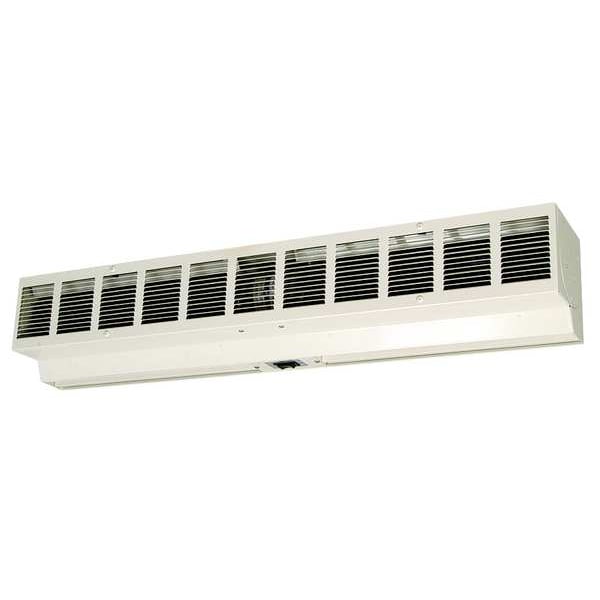

Air Curtain, 25 In
| Item | Unhtd 7.5"H 25"W 6.8"D Steel Air Curtain |
|---|---|
| Width | 25 in |
| Phase | 1 |
| Max. Mounting Height | 5 ft |
| Air Curtain Finish | Painted |
| Number of Motors | 1 |
| Height | 7-3/8 in |
| Air Curtain Air Velocity | 1,350 fpm |
| Voltage | 120 V |
| Air Curtain Air Volume | 550 cfm |
| Air Curtain Max. Door Width | 2 ft |
| Air Curtain dBA @ 10 Feet | 66 dBA |
| Depth | 6-3/4 in |
| Air Curtain Heated | No |
| Air Curtain Housing Material | Steel |
| Hz | 60 |
| Includes | 3-Prong Grounded Plug |
| Motor Type | Permanent Split Capacitor |
| Max. Amps | 0.9 |
| Housing Color | Light Tan |
| Number of Speeds | 1 |
| Motor HP | 0.1 |
| Air Curtain Item | Drive Through Window Air Curtain |
| Motor Enclosure | Totally Enclosed |
| Max. RPM | 1,700 |
| Overall Height | 7-3/8 in |
| Control Type | Single Speed Unit |
| Overall Width | 25 in |
| Standards | ETL Listed |
| Overall Depth | 6-3/4 in |
| Finish | Painted |
| Housing Material | Steel |
| Sound Level @ 10 ft | 66 dBA |
| Motor IP Rating | IP44 |
| Washdown | No |
| Power Cord Length | 6 ft |
| Nameplate Voltage | 120 V AC |
| Mounting Hole Diameter | 1/4 in |
| HEPA Air Cleaning | No |
| Ultraviolet Air Cleaning | No |
| For Outdoor Use | No |
| Hazardous Location Specification | Not Applicable |
| Mounting Height for Insect Control | 5 ft |
| For Frame Opening Width | 2 ft |
| Includes Mounting Fasteners | No |
| Electrical Connection | Plug-In |
| Motor Horsepower per Motor | 0.1 HP |
| NEMA Plug Configuration | 5-15P |
| Heater Power Consumption | Not Applicable |
| Heated/Not Heated | Not Heated |
| Sanitation Certified | No |
| Grille Material | Steel |
| Maximum Speed | 1,700 rpm |
| Profile Type | Drive Thru |
| Mounting Height for Temperature Control | 5 ft |
| Air Temperature Rise | Not Applicable |
| Series | Not Applicable |
| Assembly | Assembled |
| Maximum Air Volume | 550 cfm |
| Power Consumption | 0.1 kW |
| Minimum Operating Temperature | Not Available |
| Full Load Current | 0.9 A |
| Nozzle Width | 2-1/2 in |
| Frequency | 60 Hz |
| Maximum Operating Temperature | Not Available |
| Heat Source | Not Applicable |
| Drive Type | Direct Drive |
| Maximum Air Velocity | 1,350 fpm |
| Type of Entrance | Drive-Up Window |
| Country of Origin (subject to change) | Thailand |
| Package Quantity | 1 |
