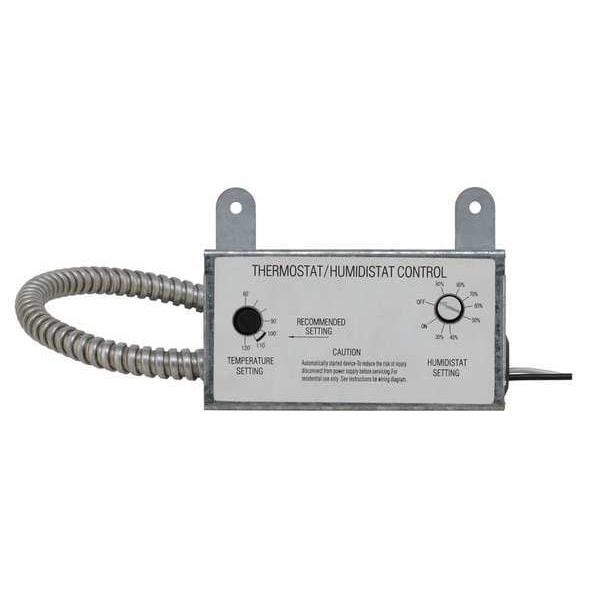

Attic Fan Thermostat/Humidistat, Close on Rise, 60 Degrees to 120 Degrees F, SPST, 120V AC
| Switch Action | Close on Rise |
|---|---|
| Voltage | 120V AC |
| Sensor Type | Bi-Metallic Spring |
| Differential | 10 Degrees F |
| Display Type | Analog |
| Thermostat Control Range | 60 to 120 deg F |
| Switch Type | SPST |
| Color | Galvinized Finish |
| Width | 6-1/4 in |
| Height | 4-3/16 in |
| Standards | UL Recognized |
| Thermostat Heating/Cooling | Cooling |
| Item | Attic Fan Thermostat/Humidistat |
| Thermostat Voltage | 120V AC |
| For Use With | Attic Ventilators |
| Mounting | Two Screw Tabs Side Mount |
| Input Voltage | 120 |
| Locked Rotor Amps @ 120V | 3 A |
| Thermostat Switch Type | SPST |
| Depth | 1-7/8 in |
| Thermostat Item | Attic Fan Thermostat, Humidistat |
| Number of Switches | 2 |
| Application | Cool Only |
| Full Load Amps @ 120VAC | 10 A |
| Thermostat Type | Line Voltage |
| Contact Rating Resistive @ 120V | 10 A |
| Inductive Amps @ 120V | 10 A |
| Control Range | 60 to 120 deg F |
| Dehumidification Control | Yes |
| Type | Thermostat/Humidistat |
| Phase | 1 |
| Control Type | Adjustable Screw |
| Humidification Control | Yes |
| Overall Height | 4-1/4 in |
| Overall Width | 6-1/4 in |
| Operating Humidity Range | 30 to 90% |
| Fan Settings | No Fan Setting |
| Minimum Operating Temperature | 60 deg F |
| Housing Color | Gray |
| Lead Wire Gauge | 18 AWG |
| Contact Rating | 120V AC |
| Shape | Rectangle |
| Electrical Connection Type | Hardwired |
| Mercury Free | Yes |
| Minimum Operating Humidity | 30 % |
| Compatible System Type | Attic Fan |
| Switch Type/Action | SPST on Rise |
| Enclosure NEMA Rating | 1 |
| Frequency | 60 Hz |
| Lead Length | 6 in |
| Stages | 1C |
| Includes Positive Off | No |
| Differential Type | Fixed |
| Lead Material | Copper |
| Mounting Direction | Horizontal |
| Minimum Control Temperature | 60 deg F |
| Number of Cooling Stages | 1 |
| Housing Material | Steel |
| Mounting Hole Diameter | 7/32 in |
| Enclosure Finish | Galvanized |
| Temperature Scale | Fahrenheit |
| Number of Poles | 1 |
| Contact Type | Snap Action |
| Enclosure Color | Silver |
| Overall Depth | 1-15/16 in |
| Operating Temperature Range | 60 to 120 deg F |
| Maximum Control Temperature | 120 deg F |
| Temperature Sensitivity | +/-8 deg F |
| Maximum Operating Temperature | 120 deg F |
| Housing Type | Standard Housing |
| Temperature Control Range | 60 to 120 deg F |
| Temperature Differential | 8 Degrees F |
| Maximum Operating Humidity | 90% |
| System Settings | On |
| Country of Origin (subject to change) | China |
| Package Quantity | 1 |
