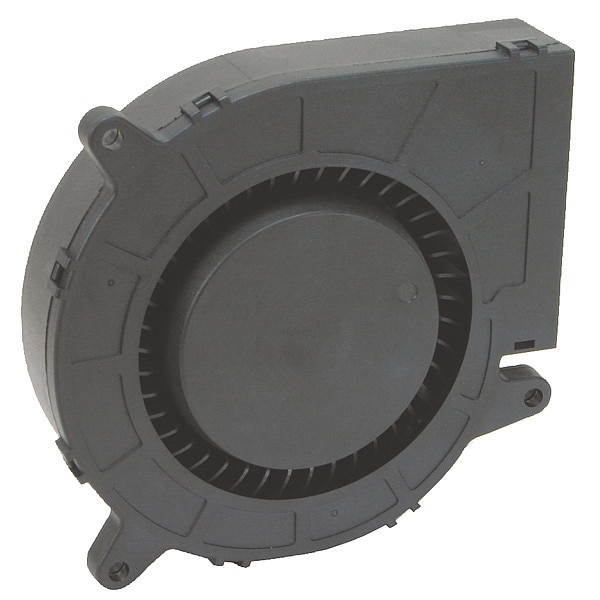

Axial Blower, Square, 230V AC, 1 Phase, PBT Plastic, 4 3/4 in W.
| Blade Material | Polybutylene |
|---|---|
| CFM @ 0.000-In. SP | 12.2/13.8 cfm |
| Depth | 1-1/2 in |
| Height | 5 in |
| Housing Material | PBT Plastic |
| Phase | 1 |
| Shape | Square |
| Watts | 13/13 W |
| Width | 4-3/4 in |
| Voltage | 230V AC |
| Fan RPM | 1400/2000 |
| Fan Width | 4-3/4 in |
| Standards | CE Certified and RoHS Compliant, UL Component Recognized for US and Canada |
| Fan Height | 5 in |
| Fan Item | Axial Blower |
| Fan Voltage | 220 to 240VAC |
| Hz | 60/50 Hz |
| Fan Depth | 1-1/2 in |
| Fan Watts | 13.0/13.0 |
| Electrical Connections | 12" Leads |
| Item | Axial Blower |
| Electrical Connection - Fans | Leads |
| Thermal Protection | Impedance |
| Mounting Eye O.C. | 4-3/16 in |
| Mounting Position | Horizontal |
| Mounting Eye O.C. - Fans | 4.1667 in |
| Fan dBA | 33.0/42.8 |
| Motor Type | Shaded pole |
| Fan Shape | Square |
| Bearings | Sleeve |
| Max. Ambient Temp. | 158 deg F |
| Fan Width | 4-3/4 in |
| dBA | 33 |
| Motor Insulation | Class A |
| Housing Finish | Black |
| Amps | 0.07/0.07 A |
| IP Rating | IP20 |
| Color | Black |
| Bearing Type | Sleeve |
| RPM | 1400/2000 RPM |
| Motor Design | Shaded Pole |
| Environmental Applications | Equipment Cooling |
| Shop By | Closeouts |
| Country of Origin (subject to change) | China |
| Package Quantity | 1 |
