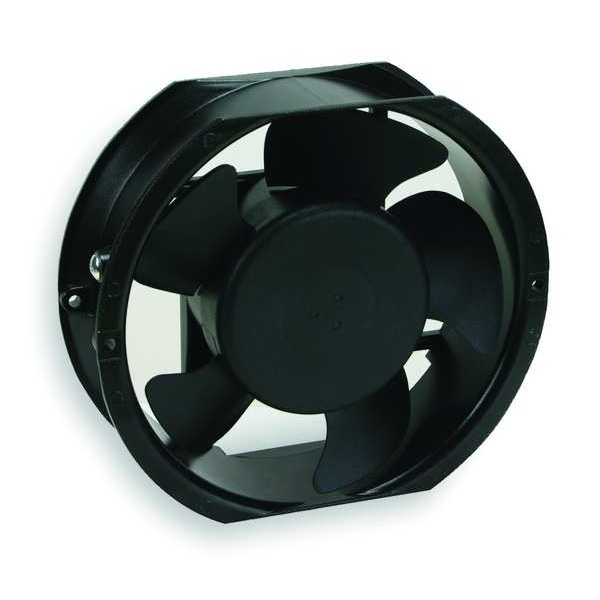

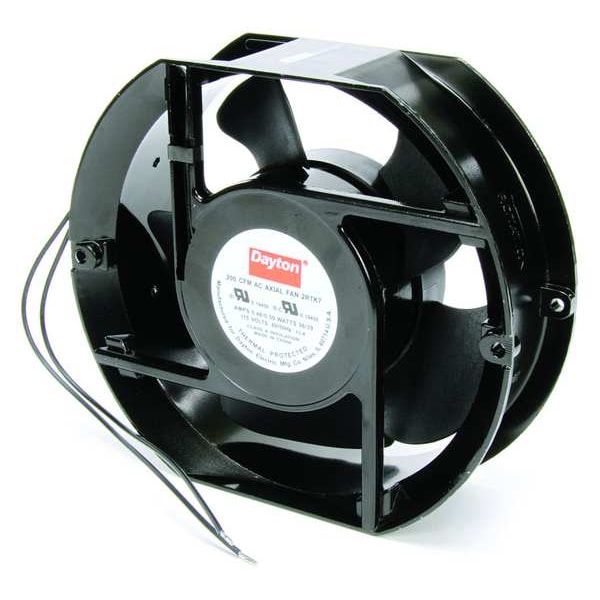

Axial Fan, Round, 115V AC, 1 Phase, Aluminum, 5 15/16 in W.
| Blade Material | Polybutylene |
|---|---|
| CFM @ 0.000-In. SP | 124/112 cfm |
| Depth | 2 in |
| Height | 6-3/4 in |
| Housing Material | Aluminum |
| Phase | 1 |
| Shape | Round |
| Watts | 36/39 W |
| Width | 5-15/16 in |
| Voltage | 115V AC |
| Fan Width | 6-3/4 in |
| Mounting Eye O.C. | 6-3/8 in |
| Fan Depth | 2 in |
| Electrical Connection - Fans | Leads |
| Fan Height | 5-15/16 in |
| Standards | RoHS Compliant, UL Recognized |
| Fan Voltage | 115VAC |
| Item | Axial Fan |
| Amps | 0.48/0.59 A |
| Fan dBA | 55 |
| Fan Width | 6-3/4 in |
| Motor Insulation | Class A |
| Thermal Protection | Impedance |
| Max. Ambient Temp. | 158 deg F |
| Housing Finish | Black |
| Bearings | Ball |
| Fan Item | Axial Fan |
| Mounting Position | Vertical or Horizontal |
| dBA | 55 |
| Hz | 60/50 Hz |
| Fan RPM | 2,950 |
| Electrical Connections | 12" Leads |
| Fan Shape | Oblong |
| Mounting Eye O.C. - Fans | 6-3/8 in |
| Fan Watts | 36 |
| Motor Type | Shaded pole |
| IP Rating | IP20 |
| Motor Design | Shaded Pole |
| RPM | 2950/2650 RPM |
| Color | Black |
| Bearing Type | Ball |
| Environmental Applications | Equipment Cooling |
| Country of Origin (subject to change) | China |
| Package Quantity | 1 |
