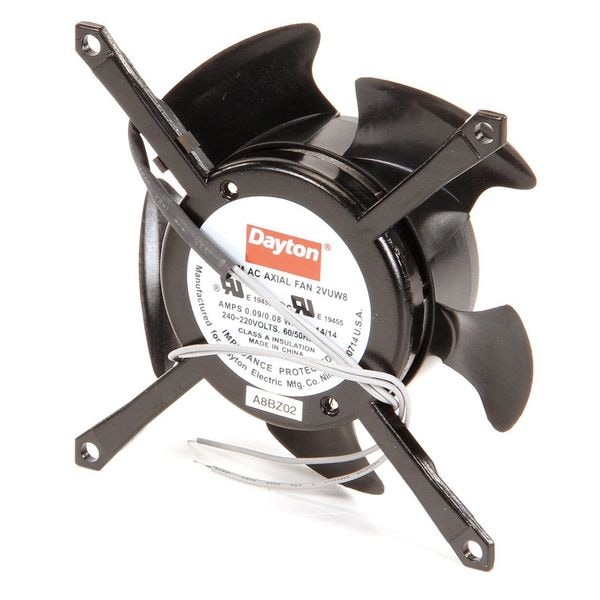

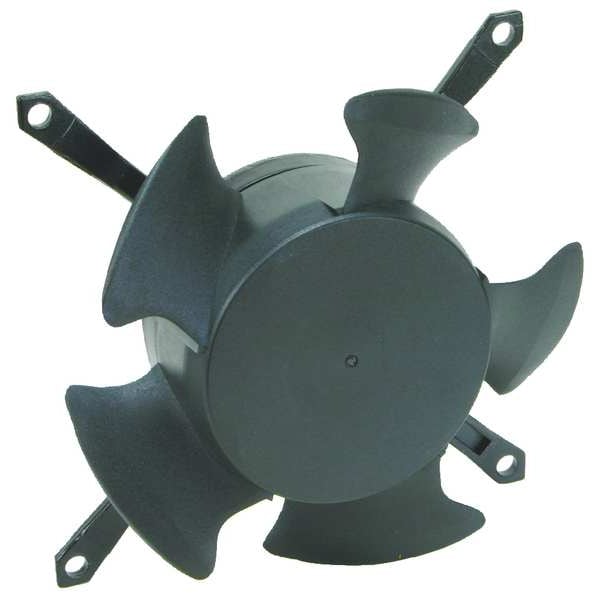

Axial Fan, Skeleton, 230V AC, 1 Phase, Aluminum, 4 7/16 in W.
| Blade Material | Polybutylene |
|---|---|
| CFM @ 0.000-In. SP | 110/92 cfm |
| Depth | 1-1/2 in |
| Height | 4-7/16 in |
| Housing Material | Aluminum |
| Phase | 1 |
| Shape | Skeleton |
| Watts | 21/22 W |
| Width | 4-7/16 in |
| Voltage | 230V AC |
| Fan RPM | 3,000 |
| Fan Shape | Skeleton |
| Fan Item | Axial Fan |
| Fan Voltage | 230VAC |
| Standards | CE Certified and RoHS Compliant, UL Component Recognized for US and Canada |
| Fan Watts | 14 |
| Amps | 0.12/0.14 A |
| Electrical Connection - Fans | Leads |
| Fan dBA | 42 |
| Item | Axial Fan |
| Mounting Eye O.C. - Fans | 4-1/8 in |
| dBA | 42 |
| Motor Insulation | Class A |
| Thermal Protection | Impedance |
| Bearings | Ball |
| Motor Type | Shaded pole |
| Fan Width | 4-7/16 in |
| Fan Depth | 1-1/2 in |
| Electrical Connections | 12" Leads |
| Max. Ambient Temp. | 158 deg F |
| Housing Finish | Black |
| Mounting Position | Vertical or Horizontal |
| Mounting Eye O.C. | 4-1/8 in |
| Hz | 60/50 Hz |
| Fan Height | 4-7/16 in |
| Fan Width | 4-7/16 in |
| IP Rating | IP20 |
| Environmental Applications | Equipment Cooling |
| Color | Black |
| RPM | 3000/2600 RPM |
| Bearing Type | Ball |
| Motor Design | Shaded Pole |
| Shop By | Closeouts |
| Country of Origin (subject to change) | China |
| Package Quantity | 1 |
