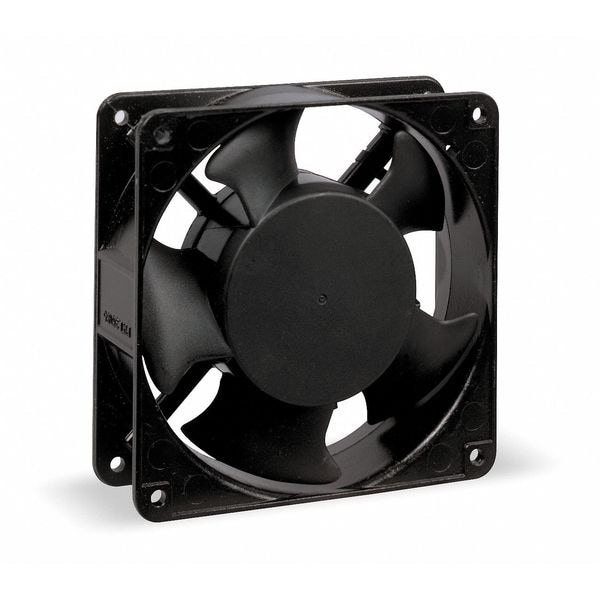

Axial Fan, Square, 115V AC, 1 Phase, Cast Aluminum, 4 11/16 in W.
| Blade Material | Polybutylene Terephthalate |
|---|---|
| CFM @ 0.000-In. SP | 70/76 cfm |
| Depth | 1-1/2 in |
| Height | 4-11/16 in |
| Housing Material | Cast Aluminum |
| Phase | 1 |
| Shape | Square |
| Watts | 11/11 W |
| Width | 4-11/16 in |
| Voltage | 115V AC |
| Amps | 0.12/0.13 A |
| Standards | RU E19455 AND CSA LR206189 |
| Motor Type | Shaded pole |
| Fan Voltage | 115VAC |
| dBA | 33.5 |
| Motor Insulation | Class A |
| Fan Depth | 1-1/2 in |
| Requires | Cord Set (Not Included) |
| Mounting Eye O.C. | 4-1/8 in |
| Fan Watts | 11 |
| Mounting Eye O.C. - Fans | 4-1/8 in |
| Hz | 60/50 Hz |
| Housing Finish | Black Painted |
| Thermal Protection | Impedance |
| Bearings | Sleeve |
| Item | Axial Fan |
| Fan Height | 4-11/16 in |
| Fan Width | 4-11/16 in |
| Fan Item | Axial Fan |
| Electrical Connection - Fans | Terminals |
| Fan RPM | 1,750 |
| Mounting Position | Horizontal |
| Max. Ambient Temp. | 158 deg F |
| Fan Shape | Square |
| Electrical Connections | Terminals |
| Fan dBA | 33.5 |
| Fan Width | 4-11/16 in |
| IP Rating | IP20 |
| Environmental Applications | Equipment Cooling |
| RPM | 2150/1750 RPM |
| Bearing Type | Sleeve |
| Motor Design | Shaded Pole |
| Color | Black |
| Country of Origin (subject to change) | China |
| Package Quantity | 1 |
