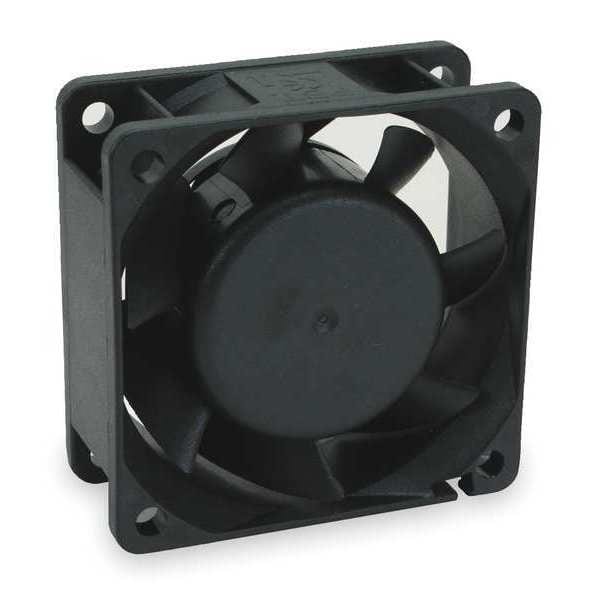

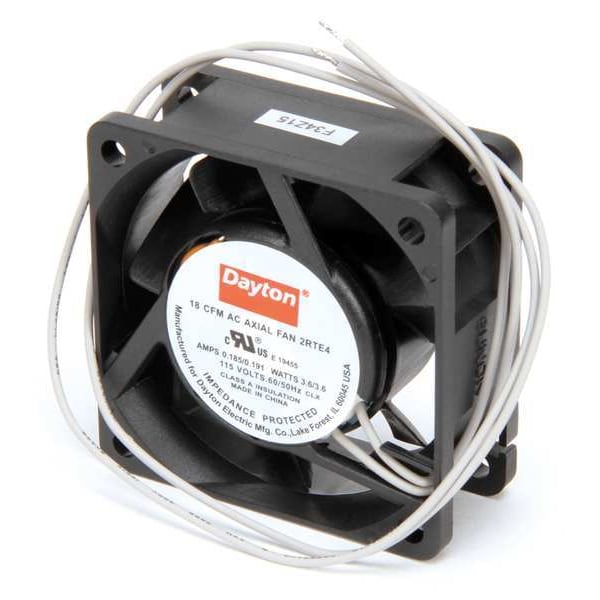

Axial Fan, Square, 115V AC, 1 Phase, PBT Plastic, 2 3/8 in W.
| Blade Material | Polybutylene |
|---|---|
| CFM @ 0.000-In. SP | 18 cfm |
| Depth | 1 in |
| Height | 2-3/8 in |
| Housing Material | PBT Plastic |
| Phase | 1 |
| Shape | Square |
| Watts | 2.8/2.7 W |
| Width | 2-3/8 in |
| Voltage | 115V AC |
| Fan Height | 2-3/8 in |
| Motor Insulation | Class A |
| Fan Voltage | 115VAC |
| Electrical Connections | 12" Leads |
| Fan Watts | 3.6 |
| Item | Axial Fan |
| Mounting Eye O.C. | 1-15/16 in |
| Motor Type | Shaded pole |
| Fan Width | 2-3/8 in |
| Fan Width | 2-3/8 in |
| Bearings | Zero Friction Air |
| Hz | 60/50 Hz |
| Amps | 0.22 |
| Mounting Position | Vertical or Horizontal |
| Fan RPM | 4200 / 4100 |
| Fan Depth | 1 in |
| Housing Finish | Black Painted |
| Mounting Eye O.C. - Fans | 1-15/16 in |
| Max. Ambient Temp. | 158 deg F |
| dBA | 31 |
| Fan dBA | 31 |
| Fan Item | Axial Fan |
| Fan Shape | Square |
| Thermal Protection | Impedance |
| Electrical Connection - Fans | Leads |
| Standards | CE Certified and RoHS Compliant, UL Component Recognized for US and Canada |
| IP Rating | IP20 |
| RPM | 4200/4100 RPM |
| Bearing Type | Zero Friction Air |
| Motor Design | Shaded Pole |
| Environmental Applications | Equipment Cooling |
| Color | Black |
| Country of Origin (subject to change) | China |
| Package Quantity | 1 |
