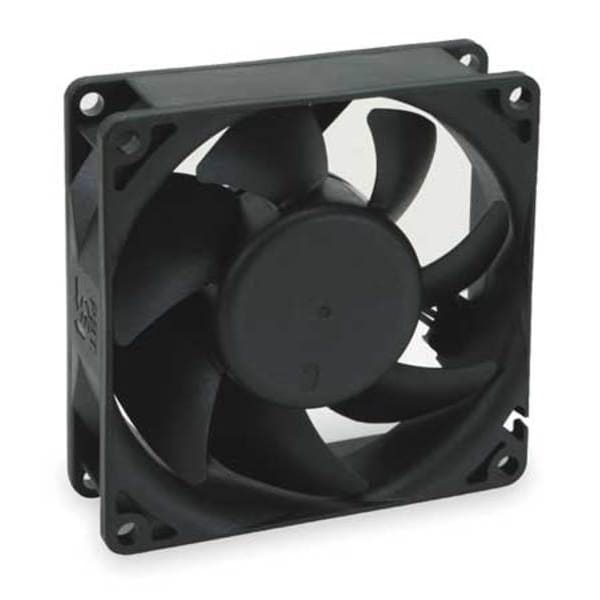

Axial Fan, Square, 115V AC, 1 Phase, PBT Plastic, 3 1/8 in W.
| Blade Material | Polybutylene |
|---|---|
| CFM @ 0.000-In. SP | 29/28 cfm |
| Depth | 1 in |
| Height | 3-1/8 in |
| Housing Material | PBT Plastic |
| Phase | 1 |
| Shape | Square |
| Watts | 3.3/3.2 W |
| Width | 3-1/8 in |
| Voltage | 115V AC |
| Electrical Connections | 12" Leads |
| Amps | 0.21/0.22 A |
| Fan Voltage | 115VAC |
| Motor Insulation | Class A |
| Fan Shape | Square |
| Fan Item | Axial Fan |
| Hz | 60/50 Hz |
| Electrical Connection - Fans | Leads |
| Mounting Eye O.C. | 2-13/16 in |
| Mounting Position | Vertical or Horizontal |
| Fan Width | 3-1/8 in |
| Standards | RoHS Compliant, UL Recognized |
| Fan RPM | 3,300 |
| Fan Depth | 1 in |
| Fan Width | 3-1/8 in |
| Item | Axial Fan |
| Fan Height | 3-1/8 in |
| Fan dBA | 33 |
| dBA | 33 |
| Motor Type | Shaded pole |
| Thermal Protection | Impedance |
| Bearings | Zero Friction Air |
| Max. Ambient Temp. | 158 deg F |
| Fan Watts | 3.6 |
| Housing Finish | Black Painted |
| Mounting Eye O.C. - Fans | 2-13/16 in |
| IP Rating | IP20 |
| Environmental Applications | Equipment Cooling |
| RPM | 3300/3200 RPM |
| Color | Black |
| Motor Design | Shaded Pole |
| Bearing Type | Zero Friction Air |
| Country of Origin (subject to change) | China |
| Package Quantity | 1 |
