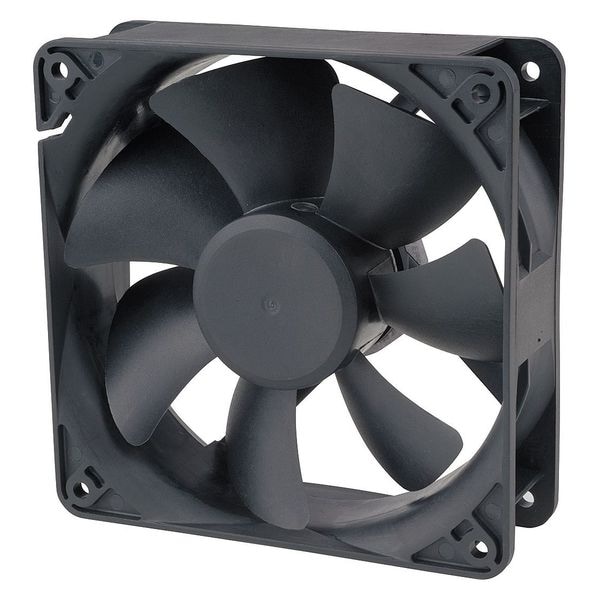

Axial Fan, Square, 24V DC, PBT Plastic, 4 11/16 in W.
| Blade Material | Polybutylene Terephthalate PBT Plastic (UL94V-0) |
|---|---|
| CFM @ 0.000-In. SP | 105/80 cfm |
| Depth | 1 in |
| Height | 4-11/16 in |
| Housing Material | PBT Plastic |
| Shape | Square |
| Watts | 5 |
| Width | 4-11/16 in |
| Voltage | 24V DC |
| Fan Shape | Square |
| IP Rating | IP55 |
| Housing Finish | Black |
| Amps | 0.207 |
| Fan RPM | 3,100 |
| Max. Ambient Temp. | 158 deg F |
| Fan dBA | 44.5 |
| dBA | 44.5 |
| Mounting Eye O.C. - Fans | 4-1/8 in |
| Bearings | Ball |
| Fan Watts | 5 |
| Fan Dia. | 4-11/16 in |
| Fan Width | 4-11/16 in |
| Mounting | Flange |
| Motor Type | DC |
| Mounting Position | Vertical or Horizontal |
| Electrical Connection - Fans | Leads |
| Mounting Eye O.C. | 4-1/8 in |
| Fan Depth | 1 in |
| Electrical Connections | 12" Leads |
| Fan Voltage | 24VDC |
| Fan Width | 4-11/16 in |
| Motor Insulation | Class A |
| Fan Height | 4-11/16 in |
| Standards | RoHS Compliant (IP55 fans are TUV compliant). |
| Fan Item | Axial Fan |
| Item | Axial Fan |
| Thermal Protection | Electronic |
| Bearing Type | Ball |
| RPM | 3100 RPM |
| Environmental Applications | Equipment Cooling |
| Motor Design | DC |
| Color | Black |
| Country of Origin (subject to change) | China |
| Package Quantity | 1 |
