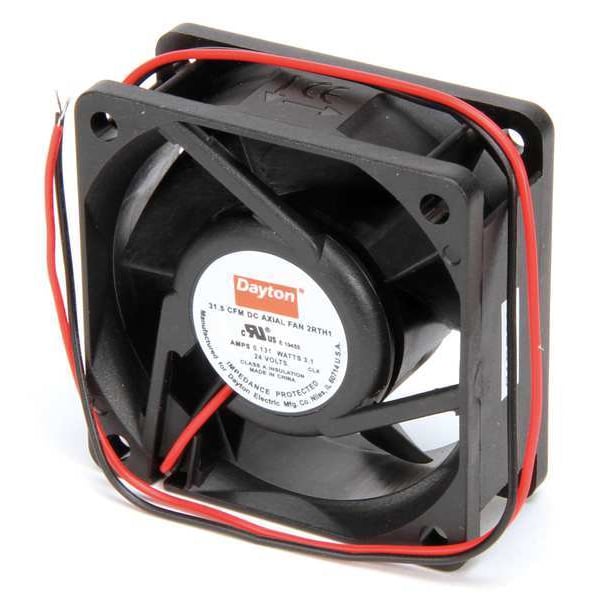

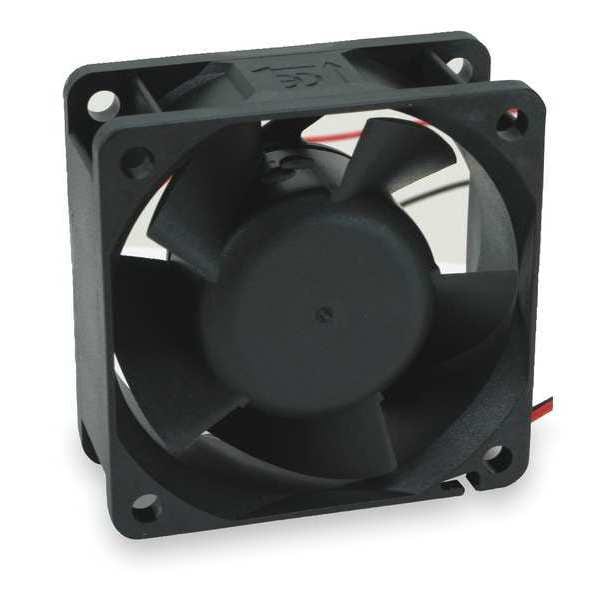

Axial Fan, Square, 24V DC, - Phase, PBT Plastic, 2 3/8 in W.
| Blade Material | Polybutylene |
|---|---|
| CFM @ 0.000-In. SP | 40 cfm |
| Depth | 1 in |
| Height | 2-3/8 in |
| Housing Material | PBT Plastic |
| Shape | Square |
| Watts | 3.1 |
| Width | 2-3/8 in |
| Voltage | 24V DC |
| Fan Voltage | 24VDC |
| dBA | 41 |
| Max. Ambient Temp. | 158 deg F |
| Standards | CE Certified and RoHS Compliant, UL Component Recognized for US and Canada |
| Electrical Connection - Fans | Leads |
| Fan Width | 2-3/8 in |
| Fan Shape | Square |
| Fan Depth | 1 in |
| Item | Axial Fan |
| Fan Width | 2-3/8 in |
| Fan dBA | 41 |
| Amps | 0.13 |
| Mounting Position | Vertical or Horizontal |
| Mounting Eye O.C. - Fans | 1-15/16 in |
| Electrical Connections | 12" Leads |
| Thermal Protection | Impedance |
| Motor Insulation | Class A |
| Fan Item | Axial Fan |
| Bearings | Zero Friction Air |
| Fan Watts | 3.1 |
| Fan RPM | 6,100 |
| Mounting Eye O.C. | 2 in |
| Fan Height | 2-3/8 in |
| Housing Finish | Black Painted |
| IP Rating | IP20 |
| Environmental Applications | Equipment Cooling |
| Motor Design | DC |
| Bearing Type | Zero Friction Air |
| RPM | 6100 RPM |
| Color | Black |
| Country of Origin (subject to change) | China |
| Package Quantity | 1 |
