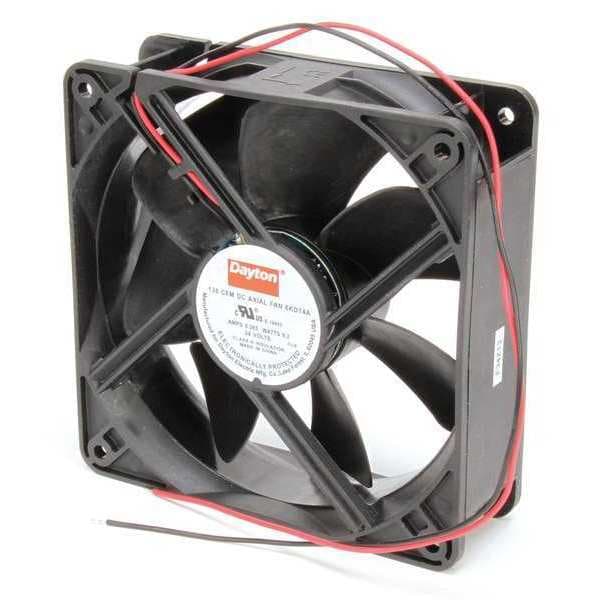

Axial Fan, Square, 24V DC, - Phase, PBT Plastic, 4 11/16 in W.
| Blade Material | Polybutylene Terephthalate |
|---|---|
| CFM @ 0.000-In. SP | 45 cfm |
| Depth | 1-1/2 in |
| Height | 4-11/16 in |
| Housing Material | PBT Plastic |
| Shape | Square |
| Watts | 9.2 |
| Width | 4-11/16 in |
| Voltage | 24V DC |
| Fan RPM | 3,100 |
| Mounting Eye O.C. - Fans | 4-1/8 in |
| Fan Voltage | 24VDC |
| Fan Width | 4-11/16 in |
| Item | Axial Fan |
| Electrical Connection - Fans | Leads |
| Fan dBA | 48 |
| Fan Depth | 1-1/2 in |
| Standards | RoHS Compliant |
| Fan Height | 4-11/16 in |
| Amps | 0.383 |
| Fan Shape | Square |
| Fan Watts | 9.2 |
| Housing Finish | Black Painted |
| Bearings | Ball |
| dBA | 42 |
| Motor Type | Brushless DC |
| Thermal Protection | Impedance |
| Fan Item | Axial Fan |
| Max. Ambient Temp. | 158 deg F |
| Electrical Connections | 12" Leads |
| Motor Insulation | Class A |
| Fan Width | 4-11/16 in |
| Mounting Eye O.C. | 4-1/8 in |
| Mounting Position | Vertical or Horizontal |
| IP Rating | IP20 |
| RPM | 3100 RPM |
| Environmental Applications | Equipment Cooling |
| Motor Design | Brushless DC |
| Bearing Type | Ball |
| Color | Black |
| Country of Origin (subject to change) | China |
| Package Quantity | 1 |
