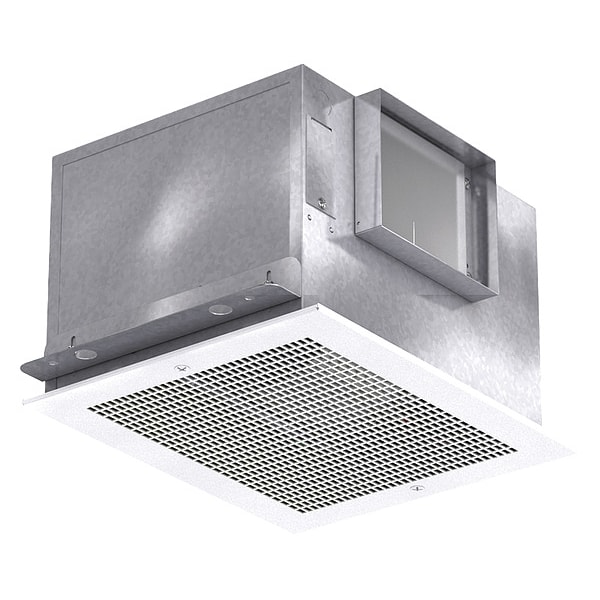

BathExh Fn, 8In Duct Dia, Galv Steel, 115 V
| Includes | Backdraft Damper, Grille, Mounting Brackets, Vari-Green EC Motor |
|---|---|
| Phase | 1 |
| Housing Material | Steel |
| Number of Speeds | 2 |
| Lighted | Without Light |
| Heater | Without Heater |
| Grille Width | 16-3/8 in |
| Standards | AMCA, UL/cUL 507 |
| Grille Material | Aluminum |
| Motor Type | Electronically Commutated |
| Grille Length | 19-3/8 in |
| Item | Bath Exhaust Fan |
| Motor Insulation | Class B |
| Noise Level @ 0.250 in SP @ 5 ft | 7.5 sones |
| Sensor Type | None |
| Profile Height Family | High |
| Maximum Noise Level | 9.2 sones |
| Noise Level @ 0.125 in SP @ 5 ft | 8 sones |
| Exhaust Airflow @ 0.250 in SP | 255 cfm, 540 cfm |
| Full Load Current | 0.75 A, 2.4 A |
| Vent Design | Ducted |
| Duct Shape | Rectangular |
| Noise Level @ 0.000 in SP @ 5 ft | 9.2 sones |
| Overall Width | 14-3/8 in |
| Exhaust Airflow @ 0.000 in SP | 604 cfm |
| Maximum Airflow | 557 cfm |
| Housing Finish | Galvanized |
| Wattage | 155 W |
| Frequency | 60 Hz |
| Exhaust Airflow @ 0.100 in SP | 583 cfm |
| Noise Level @ 0.100 in SP @ 5 ft | 8 sones |
| Blower Wheel Material | Polypropylene |
| Profile Width Family | Single-Wide |
| Overall Depth | 18 in |
| Mounting Orientation | Horizontal |
| Blower Wheel Curve | Forward |
| Includes Light Bulbs | No |
| Motor Horsepower | 0.1667 HP |
| Duct Height | 8 in |
| Overall Height | 14-1/2 in |
| For Cut-Out Length | 14-3/4 in |
| For Cut-Out Width | 18-3/8 in |
| Discharge Direction | Horizontal, Vertical |
| Motor Speed | 1,800 RPM |
| Duct Width | 8 in |
| Nameplate Voltage | 115 V AC |
| Includes Grill | Yes |
| Country of Origin (subject to change) | United States |
| Package Quantity | 1 |
