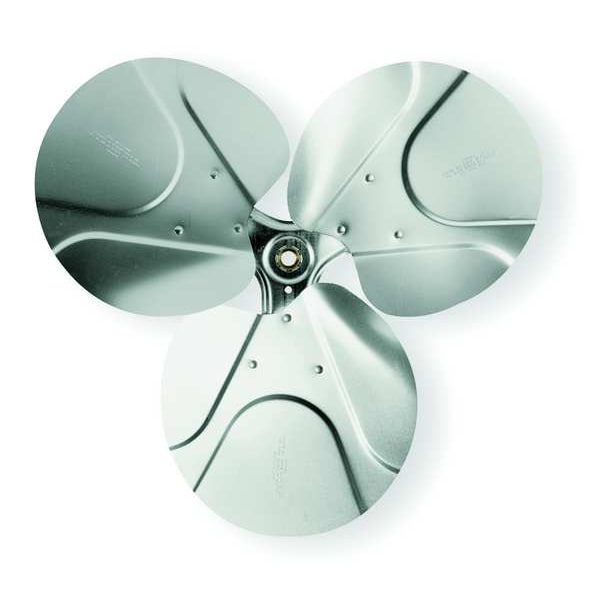

Blade, Fan, 18 In, Max. RPM: 1725
| Propeller Dia. (In.) | 18 |
|---|---|
| Bore Dia. (In.) | 5/8 |
| Number of Blades | 3 |
| CFM @ 0.000-In. SP | 3,408/2,252 cfm |
| CFM @ 0.125-In. SP | 3,180/1,868 cfm |
| Required HP @ Lower RPM | 1/11 hp |
| Remarks | View Catalog Page For Better Selection Criteria |
| RPM Low | 1,140 RPM |
| Max. RPM | 1,725 |
| RPM High | 1,725 RPM |
| Type | Replacement |
| Blade Width (In.) | 9-3/16 |
| Blade Height (In.) | 4-1/16 |
| Rotation | Facing Discharge |
| Required HP @ Higher RPM | 1/3 hp |
| Pitch (Deg.) | 26 |
| Blade Material | Aluminum |
| Item | Propeller |
| For Use With | Exhaust Fans and Circulators |
| CFM @ 0.250-In. SP | 2,916/1,522 cfm |
| Country of Origin (subject to change) | United States |
| Package Quantity | 1 |
