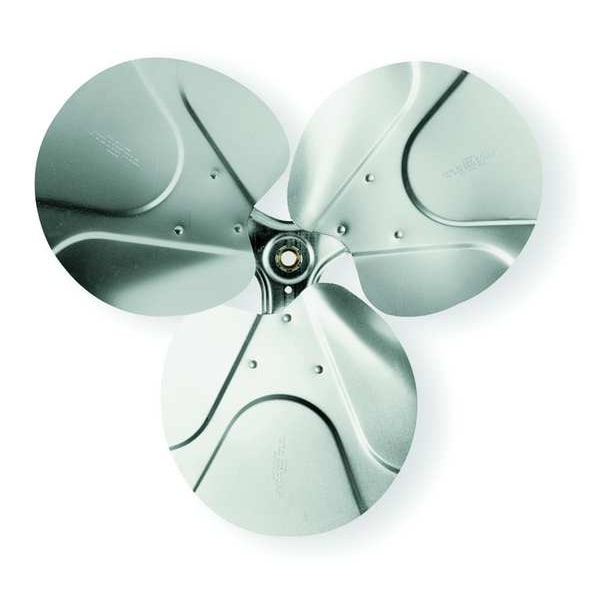

Blade, Fan, 24 In, RPM High: 1, 500
| Propeller Dia. (In.) | 24 |
|---|---|
| Bore Dia. (In.) | 5/8 |
| Number of Blades | 3 |
| Required Motor HP | 1/10 |
| Type | Replacement |
| Blade Width (In.) | 11-13/16 |
| Rotation | Facing Discharge |
| RPM Low | 1,050 RPM |
| Blade Height (In.) | 3-7/16 |
| CFM @ 0.125-In. SP | 3,588/2,250 cfm |
| CFM @ 0.250-In. SP | 3,227/1,851 cfm |
| For Use With | Exhaust Fans and Circulators |
| Item | Propeller |
| Blade Material | Aluminum |
| Required HP @ Higher RPM | 1/4 hp |
| Max. RPM | 1,725 |
| Pitch (Deg.) | 14 |
| RPM High | 1,500 RPM |
| Required HP @ Lower RPM | 1/12 hp |
| Remarks | View Catalog Page For Better Selection Criteria |
| CFM @ 0.000-In. SP | 225 cfm |
| Country of Origin (subject to change) | United States |
| Package Quantity | 1 |
