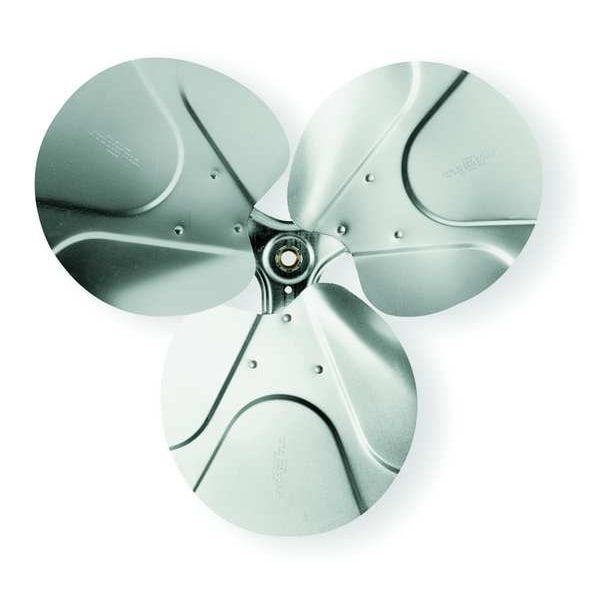

Blade, Fan, 30 In, Pitch (Deg.): 24
| Propeller Dia. (In.) | 30 |
|---|---|
| Bore Dia. (In.) | 5/8 |
| Number of Blades | 3 |
| Type | Replacement |
| Keyway (In.) | 3/16 in W x 3/32 in H |
| CFM @ 0.125-In. SP | 6,918 cfm |
| Item | Propeller |
| Required HP @ Higher RPM | 3/4 hp |
| For Use With | Exhaust Fans and Circulators |
| CFM @ 0.000-In. SP | 7,657 cfm |
| Rotation | Facing Discharge |
| Blade Width (In.) | 11-7/8 |
| Blade Height (In.) | 5 |
| CFM @ 0.250-In. SP | 6,200 cfm |
| Remarks | View Catalog Page For Better Selection Criteria |
| Blade Material | Aluminum |
| Pitch (Deg.) | 24 |
| Max. RPM | 1,140 |
| RPM High | 1,075 RPM |
| Country of Origin (subject to change) | United States |
| Package Quantity | 1 |
