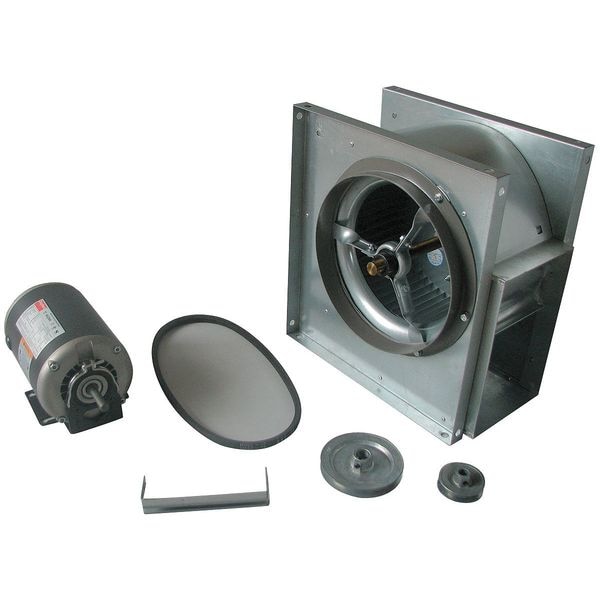

Blower, 10 1/4 In
| Wheel Dia. (In.) | 10-1/4 |
|---|---|
| Item | Blower |
| Wheel Width (In.) | 4-9/16 |
| Type | Single Inlet Forward Curve, Belt Drive With Drive Package |
| Voltage | 208-220/440 |
| Motor HP | 0.5 |
| CFM @ 0.250-In. SP | 1,020 cfm |
| CFM @ 0.500-In. SP | 830 cfm |
| Assembled/Unassembled | Unassembled |
| Motor Enclosure | Totally Enclosed Fan Cooled |
| Hz | 60 Hz |
| Discharge Height (In.) | 10-5/16 |
| Max. Inlet Temp. (Deg. F) | 150 |
| Dimension R (In.) | 3/4 |
| Dimension C (In.) | 7-5/16 |
| Housing Length (In.) | 14-5/8 |
| CFM @ 0.750-In. SP | 630 cfm |
| Blower RPM | 1,030 RPM |
| Motor RPM | 1,725 RPM |
| Dimension S (In.) | 3-1/8 |
| Motor Type | Split Phase |
| Dimension L (In.) | 16-1/8 |
| Housing Width (In.) | 6-1/2 |
| Dimension M (In.) | 6.0276 |
| Dimension D (In.) | 11/16 in |
| Full Load Amps | 2.2-2.2/1.1 |
| Dimension T (In.) | 1 1/16 in |
| Max. Blower RPM | 1,450 RPM |
| Wheel Material | Steel |
| Dimension K (In.) | 6 1/2 in |
| Phase | 3 |
| Housing Material | Steel |
| Dimension G (In.) | 9-1/2 |
| Dimension Y (In.) | 13/16 in |
| CFM @ 0.125-In. SP | 1,110 cfm |
| Housing Height (In.) | 15-1/4 |
| Dimension J (In.) | 8-7/8 |
| Dimension H (In.) | 8 5/8 in |
| Mounting Position | Blower Shaft Horizontal |
| Inlet Dia. (In.) | 9-13/16 |
| Housing Finish | Galvanized |
| Rotation | CW |
| Dimension A (In.) | 15-1/4 |
| Max. Ambient Temp. (F) | 104 |
| Dimension F (In.) | 9-13/16 |
| Dimension B (In.) | 14-5/8 |
| Shaft Dia. (In.) | 3/4 |
| Dimension E (In.) | 10-5/16 |
| Discharge Width (In.) | 6-1/2 |
| Motor Insulation | Class B |
| Dimension X (In.) | 3/8 in |
| Bearing Type | Ball |
| Dimension Z (In.) | 1/2 in |
| Wheel Type | Forward-Curved |
| Drive Type | Belt Drive |
| Includes Motor | Yes |
| Wheel Width | 4-1/2 in |
| Maximum Fan Speed | 1,450 rpm |
| Airflow @ 9.000 in SP | Not Applicable |
| Airflow @ 1.500 in SP | Not Applicable |
| Motor Frame Designation | 48Z |
| Airflow @ 2.500 in SP | Not Applicable |
| Number of Inlets | 1 |
| Standards | CSA Certified, UL Listed |
| Overall Height | 16-1/8 in |
| Nameplate Voltage | 208-230/460V AC |
| Airflow @ 12.00 in SP | Not Applicable |
| Motor Horsepower | 0.5 HP |
| Overall Width | 14-5/8 in |
| Maximum Ambient Temperature | 104 deg F |
| Outlet Height | 10-5/16 in |
| Airflow @ 7.000 in SP | Not Applicable |
| Airflow @ 0.750 in SP | 630 cfm |
| Outlet Shape | Rectangular |
| Overall Depth | 8-7/8 in |
| Flange Size | Not Applicable |
| Wheel Diameter | 10-1/4 in |
| Airflow @ 4.000 in SP | Not Applicable |
| Assembly | Unassembled |
| Airflow @ 2.000 in SP | Not Applicable |
| Housing Material Finish | Galvanized |
| Airflow @ 1.250 in SP | Not Applicable |
| Airflow @ 0.250 in SP | 1,020 cfm |
| Airflow @ 1.000 in SP | Not Applicable |
| Airflow @ 0.100 in SP | Not Applicable |
| Airflow @ 13.00 in SP | Not Applicable |
| Housing Height | 15-1/4 in |
| Minimum Ambient Temperature | 104 deg F |
| Includes Drive Package | Yes |
| Current | 1.8-1.7/0.9 A |
| Minimum Fan Speed | 1,030 rpm |
| Airflow @ 3.500 in SP | Not Applicable |
| Motor Insulation Class | B |
| Maximum Static Pressure | 0.75 in wc |
| Airflow @ 0.000 in SP | Not Applicable |
| Number of Speeds | 1 |
| Outlet Diameter | Not Applicable |
| Mounting Orientation | Horizontal |
| Shaft Diameter | 3/4 in |
| Manufacturer Warranty Length | 1 yr (Limited) |
| Airflow @ 8.000 in SP | Not Applicable |
| Inlet Diameter | 9-3/4 in |
| Airflow @ 11.00 in SP | Not Applicable |
| Outlet Width | 6-1/2 in |
| Airflow @ 0.500 in SP | 830 cfm |
| Housing Width | 6-1/2 in |
| Airflow @ 0.125 in SP | 1,110 cfm |
| Airflow @ 4.500 in SP | Not Applicable |
| Motor Speed | 1,745 rpm |
| Flange Type | Non-Flanged |
| Maximum Inlet Air Temperature | 150 deg F |
| Airflow @ 10.00 in SP | Not Applicable |
| Airflow @ 6.000 in SP | Not Applicable |
| Housing Depth | 14-5/8 in |
| Airflow @ 3.000 in SP | Not Applicable |
| Frequency | 50/60 Hz |
| Airflow @ 5.000 in SP | Not Applicable |
| Motor Duty Class | Continuous |
| OEM Replacement | No |
| Country of Origin (subject to change) | Multiple |
| Package Quantity | 1 |
