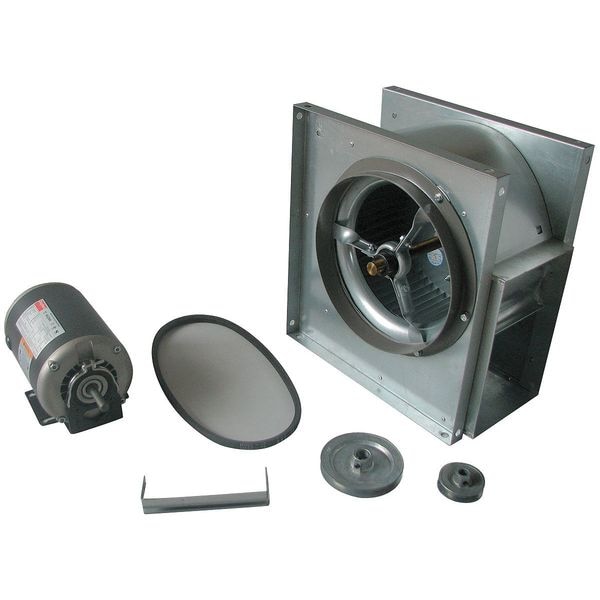

Blower, 10 5/8 In
| Wheel Dia. (In.) | 11-1/8 |
|---|---|
| Item | Blower |
| Type | Single Inlet Forward Curve, Belt Drive With Drive Package |
| Wheel Width (In.) | 6-7/16 |
| Voltage | 115/230 |
| Motor HP | 1 |
| CFM @ 0.250-In. SP | 1,970 cfm |
| CFM @ 0.500-In. SP | 1,810 cfm |
| Assembled/Unassembled | Unassembled |
| Motor Enclosure | Open Dripproof |
| Bearing Type | Ball |
| Motor Insulation | Class B |
| Dimension J (In.) | 10-1/8 |
| Dimension M (In.) | 8 |
| Dimension E (In.) | 11-3/8 |
| Dimension L (In.) | 18 |
| Housing Finish | None |
| Hz | 60 Hz |
| Rotation | CW |
| Discharge Width (In.) | 8-1/4 |
| CFM @ 1.000-In. SP | 1,390 cfm |
| Dimension T (In.) | 1 1/16 in |
| Max. Blower RPM | 1,350 RPM |
| CFM @ 0.750-In. SP | 1,610 cfm |
| Dimension X (In.) | 5/16 in |
| Dimension Y (In.) | 13/16 in |
| Dimension G (In.) | 11-1/4 |
| Shaft Dia. (In.) | 3/4 |
| Dimension F (In.) | 10-7/8 |
| Housing Height (In.) | 17-1/2 |
| Housing Width (In.) | 8-1/4 |
| Mounting Position | Blower Shaft Horizontal |
| Motor Type | Capacitor-Start |
| Dimension B (In.) | 16-5/16 |
| Motor RPM | 1,725 RPM |
| Dimension K (In.) | 8 1/4 in |
| Dimension D (In.) | 11/16 in |
| Inlet Dia. (In.) | 10-7/8 |
| Full Load Amps | 13.0/6.6-6.5 |
| Dimension Z (In.) | 1/2 in |
| Dimension C (In.) | 8 |
| Dimension H (In.) | 10 3/8 in |
| Blower RPM | 1,175 RPM |
| Discharge Height (In.) | 11-3/8 |
| Dimension R (In.) | 3/4 |
| Max. Ambient Temp. (F) | 104 |
| Max. Inlet Temp. (Deg. F) | 150 |
| Phase | 1 |
| Wheel Material | Steel |
| Dimension S (In.) | 3-1/8 |
| CFM @ 0.125-In. SP | 2,060 cfm |
| Housing Material | Steel |
| Dimension A (In.) | 17-1/2 |
| Housing Length (In.) | 16-5/16 |
| Drive Type | Belt Drive |
| Application | Air Conditioning, Exhausting, General Ventilation, Industrial Air-Moving |
| Wheel Type | Forward-Curved |
| Maximum Ambient Temperature | 104 deg F |
| Manufacturer Warranty Length | 1 yr (Limited) |
| Outlet Height | 11-3/8 in |
| Maximum Inlet Air Temperature | 150 deg F |
| Airflow @ 1.250 in SP | Not Applicable |
| Airflow @ 11.00 in SP | Not Applicable |
| Thermal Overload Protection | Yes |
| Airflow @ 2.500 in SP | Not Applicable |
| Includes Drive Package | Yes |
| Flange Type | Non-Flanged |
| Includes Motor | Yes |
| Airflow @ 4.000 in SP | Not Applicable |
| Housing Height | 17-1/2 in |
| Outlet Diameter | Not Applicable |
| Airflow @ 0.000 in SP | Not Applicable |
| Number of Speeds | 1 |
| Outlet Shape | Rectangular |
| Minimum Ambient Temperature | 104 deg F |
| Housing Material Finish | Galvanized |
| Motor Duty Class | Continuous |
| Airflow @ 2.000 in SP | Not Applicable |
| Overall Height | 18 in |
| Minimum Fan Speed | 1,175 rpm |
| Airflow @ 4.500 in SP | Not Applicable |
| Nameplate Voltage | 115/208-230V AC |
| Airflow @ 6.000 in SP | Not Applicable |
| Housing Depth | 16-5/16 in |
| Flange Size | Not Applicable |
| Number of Inlets | 1 |
| Current | 13.6/6.9 A |
| Overall Depth | 10-5/8 in |
| Standards | CSA Certified, UL Listed |
| Features | Drive Package Components are Packed Separately, Single Inlet for Quiet, Efficient Performance |
| Inlet Diameter | 10-7/8 in |
| Market | Industrial |
| Assembly | Unassembled |
| Wheel Width | 6-7/16 in |
| Airflow @ 9.000 in SP | Not Applicable |
| Motor Horsepower | 1 HP |
| Airflow @ 5.000 in SP | Not Applicable |
| Airflow @ 13.00 in SP | Not Applicable |
| Motor Insulation Class | B |
| For Ventilation Type | Exhaust |
| Outlet Width | 8-1/4 in |
| Airflow @ 0.100 in SP | Not Applicable |
| Airflow @ 12.00 in SP | Not Applicable |
| Housing Width | 8-1/4 in |
| Overall Width | 16-5/16 in |
| Airflow @ 0.250 in SP | 1,970 cfm |
| Mounting Orientation | Horizontal |
| Wheel Diameter | 11-1/8 in |
| Motor Frame Designation | 56 H |
| Maximum Fan Speed | 1,350 rpm |
| Maximum Static Pressure | 1 in wc |
| Airflow @ 0.500 in SP | 1,810 cfm |
| Airflow @ 0.125 in SP | 2,060 cfm |
| Airflow @ 1.500 in SP | Not Applicable |
| Airflow @ 0.750 in SP | 1,610 cfm |
| Airflow @ 3.500 in SP | Not Applicable |
| Frequency | 60 Hz |
| Airflow @ 10.00 in SP | Not Applicable |
| Number of Discharge Positions | 4 |
| Airflow @ 8.000 in SP | Not Applicable |
| Shaft Diameter | 3/4 in |
| Airflow @ 7.000 in SP | Not Applicable |
| Airflow @ 1.000 in SP | 1,390 cfm |
| Motor Speed | 1,725 rpm |
| Airflow @ 3.000 in SP | Not Applicable |
| OEM Replacement | No |
| Country of Origin (subject to change) | Multiple |
| Package Quantity | 1 |
