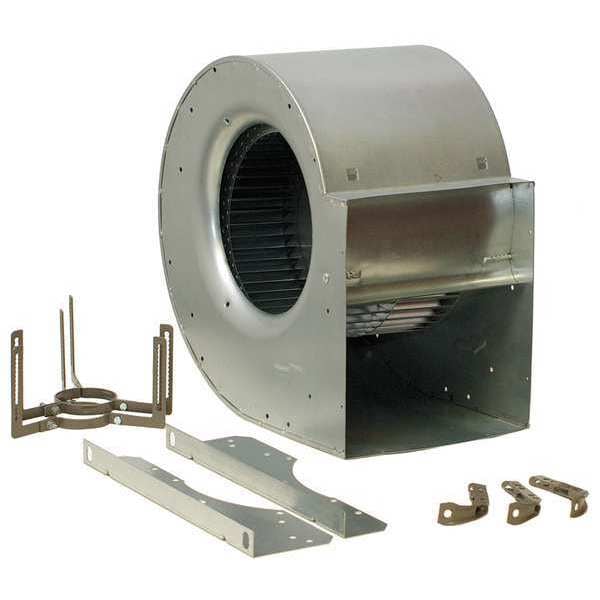

Blower, 10 5/8 In, Less Mtr, Whl w/ 10-5/8
| Item | Blower |
|---|---|
| Type | Double Inlet Forward Curve, Direct Drive, Less Motor |
| Housing Material | Steel |
| Max. Ambient Temp. (F) | 104 |
| Housing Finish | None |
| Wheel Width (In.) | 10-3/8 |
| Includes | Mounting Bracket |
| Housing Height (In.) | 17-1/2 |
| Max. Inlet Temp. (Deg. F) | 104 |
| Housing Depth (In.) | 16-3/4 |
| Housing Width (In.) | 13 |
| Wheel Dia. (In.) | 10-5/8 |
| Mounting | Multipostion |
| Discharge Width (In.) | 13 |
| Discharge Height (In.) | 11-1/2 |
| Wheel Bore (In.) | 1/2 |
| Wheel Material | Steel |
| Bearing Type | Not Applicable |
| Speed Controllable | No |
| Drive Type | Direct Drive |
| Overall Height | 17-1/2 in |
| Overall Width | 15 in |
| Standards | Not Applicable |
| Application | Air Conditioning, Exhausting, General Ventilation, Heating |
| Features | the Included Mounting Bracket Adjusts to Fit Blower Motors 3-13/16 in to 6-5/8 in L, Unit Can Replace Most Direct-Drive Blowers with the Same Horsepower Ratings, With a Blower Wheel Reinforced to Ensure Optimal Performance and Trouble-Free Service |
| Minimum Motor Speed | Not Applicable |
| Hazardous Location Specification | Not Applicable |
| Housing Material Gauge | 1.2 mm |
| Mount Type | Multiposition |
| Corrosion Resistant | Yes |
| Includes Mounting Hardware | Yes |
| For High-Static Pressure Applications | Yes |
| Manufacturer Warranty Length | 1 yr Limited |
| Maximum Static Pressure | 1.25 in wc |
| Housing Width | 13 in |
| For Ventilation Type | Exhaust, Make-Up, Return, Supply |
| Minimum Airflow | 515 cfm |
| Housing Height | 17-1/2 in |
| Rotation | CW |
| Housing Material Finish | Galvanized |
| Chemical Resistant | No |
| For Air Type | Clean, General |
| Minimum Ambient Temperature | -4 deg F |
| Current | Not Applicable |
| Compatible Speed Control | Not Applicable |
| Number of Discharge Positions | 4 |
| Inlet Diameter | 8-5/8 in |
| Electrical Connection | Not Applicable |
| OEM Replacement | Not Applicable |
| Wheel Bore Diameter | 1/2 in |
| Replacement For | Not Applicable |
| Housing Color | Silver |
| Motor Location | Not Applicable |
| Maximum Motor Speed | Not Applicable |
| Wheel Width | 10-3/8 in |
| Wheel Type | Forward-Curved |
| Spark Resistant Construction Type | Not Applicable |
| AMCA Fan Class | Not Rated |
| Resistance Properties | Corrosion Resistant |
| Maximum Motor Horsepower | 0.75 HP |
| Maximum Airflow | 2,200 cfm |
| Wheel Material Finish | Galvanized |
| Assembly | Unassembled |
| Outlet Diameter | Not Applicable |
| Outlet Shape | Rectangular |
| Housing Material Grade | DC51 |
| Thermal Overload Protection | Not Applicable |
| Includes Motor | No |
| Outlet Width | 13 in |
| Maximum Ambient Temperature | 104 Degrees F |
| Wheel Diameter | 10-3/4 in |
| Mounting Orientation | Multiposition |
| Shaft Diameter | 1/2 in |
| Brake Horsepower | Not Applicable |
| Overall Depth | 16-5/8 in |
| Flange Type | Non-Flanged |
| Market | Commercial, Residential |
| Motor Frame Designation | Not Applicable |
| Sound Level | Not Rated |
| Number of Inlets | 2 |
| Includes Drive Package | No |
| Maximum Inlet Air Temperature | 104 deg F |
| Minimum Motor Horsepower | 0.3125 HP |
| Housing Depth | 16.7 in |
| Outlet Height | 11-1/2 in |
| Frequency | Not Applicable |
| For Location | Indoor |
| Flange Size | Not Applicable |
| Hazardous Location Application | No |
| Minimum Fan Speed | 1,050 rpm |
| Discharge Position | Bottom Horizontal; Down Blast; Top Horizontal; Up Blast |
| Maximum Fan Speed | 1,075 rpm |
| Country of Origin (subject to change) | China |
| Package Quantity | 1 |
