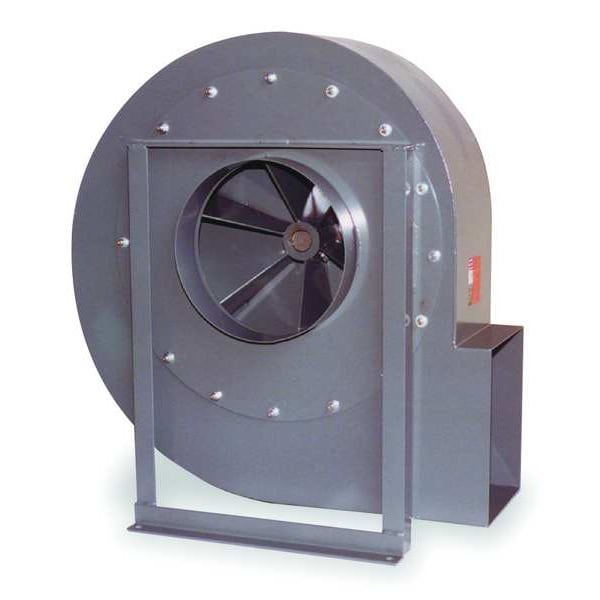

Blower, 19 1/8 In
| Item | Blower |
|---|---|
| Type | With Drive Package |
| Wheel Dia. (In.) | 19-1/8 |
| Voltage | 230/460 |
| Motor HP | 15 |
| Housing Material | Steel |
| Max. Ambient Temp. (F) | 104 |
| Housing Width (In.) | 9-1/16 |
| CFM @ 7.000-In. SP | # |
| dBA @ 5 Feet | 91 dBA |
| CFM @ 13.00-In. SP | 3,047 |
| Inlet Dia. (In.) | 11-1/4 |

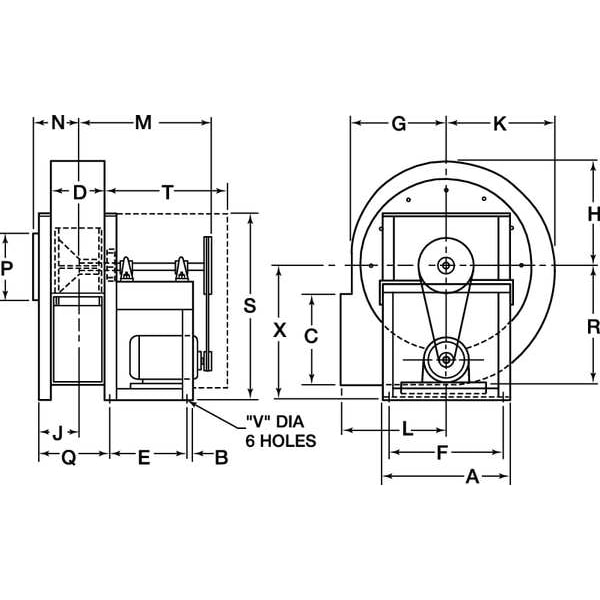

| Dimension Q (In.) | 11-5/8 |
| Dimension S (In.) | 32-3/8 |
| Wheel Material | Steel |
| Bearing Type | Ball |
| Dimension B (In.) | 1-3/8 |
| Dimension F (In.) | 19-3/4 |
| Discharge Height (In.) | 11 |
| Rotation | CW |
| Housing Height (In.) | 29-3/4 |
| Dimension X (In.) | 22-1/2 |
| CFM @ 6.000-In. SP | # |
| Blower RPM | 2,715 RPM |
| Dimension D (In.) | 9-1/16 |
| Dimension V (In.) | 9/16 in |
| CFM @ 8.000-In. SP | 4,380 |
| CFM @ 5.000-In. SP | # |
| CFM @ 11.00-In. SP | 3,675 |
| Dimension J (In.) | 5-11/16 |
| Dimension T (In.) | 27-1/2 |
| Dimension R (In.) | 16-1/2 |
| Dimension G (In.) | 11-3/4 |
| Motor Insulation | Class F |
| Dimension C (In.) | 11 |
| Dimension K (In.) | 14-7/8 |
| Dimension P (In.) | 11-1/4 |
| Motor Frame | 254T |
| Dimension A (In.) | 21-5/8 |
| Motor Type | 3-Phase |
| Housing Length (In.) | 28-5/8 |
| Discharge Width (In.) | 9-1/16 |
| Max. Inlet Temp. (Deg. F) | 250 |
| Shaft Dia. (In.) | 1-7/16 |
| Motor Enclosure | Open Dripproof |
| Dimension N (In.) | 7-5/8 |
| CFM @ 4.000-In. SP | # |
| CFM @ 9.000-In. SP | 4,190 |
| Full Load Amps | 38.0/19.0 |
| Dimension M (In.) | 30 |
| CFM @ 12.00-In. SP | 3,395 |
| Housing Finish | Gray Baked Polyester Epoxy |
| Includes | 3C107, 3X474, 4GZC4, 583B, 903B, SD178, SK158 |
| Stock No. | 3C107 |
| Dimension H (In.) | 13-1/4 |
| CFM @ 10.00-In. SP | 3,935 |
| Wheel Width (In.) | 7 |
| Dimension L (In.) | 13-3/4 |
| Hz | 60 |
| Motor RPM | 1,770 RPM |
| Dimension E (In.) | 17 |
| Phase | 3 |
| Maximum Inlet Air Temperature | 250 deg F |
| Includes Motor | Yes |
| Airflow @ 0.125 in SP | Not Applicable |
| Housing Depth | 28-5/8 in |
| Airflow @ 10.00 in SP | 3,935 cfm |
| Includes Drive Package | Yes |
| Drive Type | Belt Drive |
| Features | CW Rotation and Bottom Horizontal Discharge, But Can Easily Be Converted to CCW Rotation by Removing and Remounting Housing Opposite of Standard, with Weatherproof Drive Covers |
| Wheel Width | 7 in |
| Airflow @ 9.000 in SP | 4,190 cfm |
| Outlet Height | 11 in |
| Airflow @ 11.00 in SP | 3,675 cfm |
| Airflow @ 0.750 in SP | Not Applicable |
| Number of Discharge Positions | 8 |
| Motor Horsepower | 15 HP |
| Motor Speed | 1,770 rpm |
| Airflow @ 0.375 in SP | Not Applicable |
| Flange Size | Not Applicable |
| Housing Height | 29-3/4 in |
| Motor Frame Designation | 254T |
| Airflow @ 7.000 in SP | Not Applicable |
| Wheel Type | Radial |
| Inlet Diameter | 11-1/4 in |
| Housing Material Finish | Enamel |
| Overall Height | 29-3/4 in |
| Maximum Static Pressure | 13 in wc |
| Airflow @ 2.000 in SP | Not Applicable |
| Airflow @ 2.500 in SP | Not Applicable |
| Manufacturer Warranty Length | 1 yr (Limited) |
| Overall Width | 31 in |
| Nameplate Voltage | 230/460V AC |
| Standards | CE Compliant, CSA Certified, UL Listed |
| Airflow @ 1.500 in SP | Not Applicable |
| Maximum Ambient Temperature | 104 deg F |
| Frequency | 60 Hz |
| Airflow @ 0.400 in SP | Not Applicable |
| Shaft Diameter | 1-7/16 in |
| Assembly | Unassembled |
| Airflow @ 0.000 in SP | Not Applicable |
| Sound Level | 91 dBA @ 5 ft |
| Overall Depth | 28-5/8 in |
| Number of Inlets | 1 |
| Airflow @ 5.000 in SP | Not Applicable |
| Maximum Fan Speed | 2,715 rpm |
| Outlet Diameter | Not Applicable |
| Airflow @ 1.250 in SP | Not Applicable |
| Airflow @ 6.000 in SP | Not Applicable |
| Airflow @ 8.000 in SP | 4,380 cfm |
| Outlet Shape | Rectangular |
| Outlet Width | 9-1/16 in |
| Airflow @ 4.500 in SP | Not Applicable |
| Number of Speeds | 1 |
| Wheel Diameter | 19-1/8 in |
| Housing Width | 9 in |
| Current | 36.4/18.2 A |
| Airflow @ 1.000 in SP | Not Applicable |
| Airflow @ 13.00 in SP | 3,047 cfm |
| Motor Insulation Class | F |
| Airflow @ 12.00 in SP | 3,395 cfm |
| Airflow @ 0.250 in SP | Not Applicable |
| Airflow @ 3.500 in SP | Not Applicable |
| Airflow @ 0.500 in SP | Not Applicable |
| Motor Duty Class | Continuous |
| For Air Type | Dusty, Dirty |
| Airflow @ 4.000 in SP | Not Applicable |
| Market | Industrial |
| Flange Type | Non-Flanged |
| Airflow @ 3.000 in SP | Not Applicable |
| Housing Color | Gray |
| Discharge Position | Bottom Horizontal |
| Airflow @ 0.100 in SP | Not Applicable |
| Resistance Properties | For Damp Environments |
| OEM Replacement | No |
| Country of Origin (subject to change) | Multiple |
| Package Quantity | 1 |
