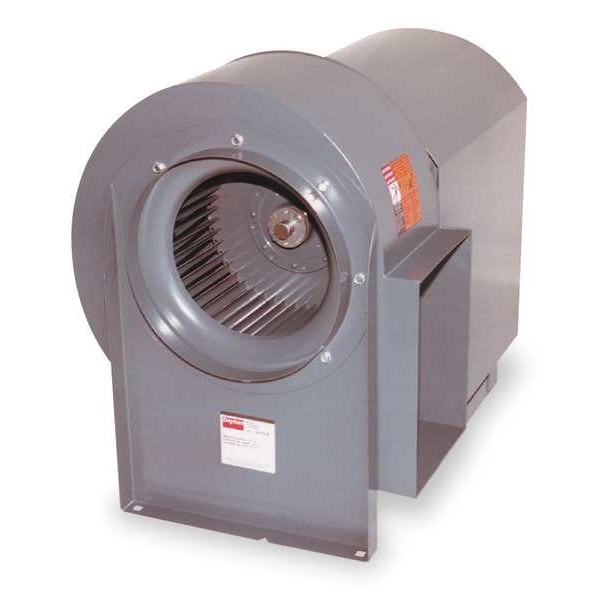

Blower, 24 1/2 In, Less Motor and Drives
| Wheel Dia. (In.) | 24-1/2 |
|---|---|
| Item | Blower |
| Type | Drive Package |
| Wheel Width (In.) | 12-7/16 |
| Wheel Material | Steel |
| Inlet Dia. (In.) | 26-3/8 |
| Width (In.) | 46 |
| Max. Inlet Temp. (Deg. F) | 250 |
| Housing Finish | Gray Baked Polyester Epoxy |
| Bearing Type | Pillow Block Ball |
| Discharge Height (In.) | 26-1/4 |
| Max. Ambient Temp. (F) | 104 |
| Depth (In.) | 43 |
| Motor HP Range | 1.5 to 7.5 |
| Rotation | CW |
| Includes | Weatherproof Drive Cover |
| Housing Material | Steel |
| Discharge Width (In.) | 19-1/4 |
| Shaft Dia. (In.) | 1-7/16 |
| Height (In.) | 48 |
| Wheel Type | Forward-Curved |
| Application | Heating and Air Conditioning Systems where Low to Medium Pressures are Encountered |
| Drive Type | Belt Drive |
| Overall Height | 48 in |
| Features | Dynamically Balanced, Extra-Quiet, Efficient Blowers Provide High Volume Performance, Sturdy Arc-Welded Housing |
| Standards | AMCA Air Performance Certified, NEC, OSHA |
| Overall Width | 46 in |
| Maximum Motor Horsepower | 10 HP |
| Maximum Static Pressure | 2.5 in wc |
| Wheel Diameter | 24-1/2 in |
| Shaft Diameter | 1-7/16 in |
| Assembly | Unassembled |
| Housing Material Finish | Gray Polyester Epoxy |
| Maximum Fan Speed | 653 RPM |
| Outlet Diameter | Not Applicable |
| Minimum Fan Speed | 349 RPM |
| Discharge Position | Bottom Angular Down, Bottom Angular Up, Bottom Horizontal, Down Blast, Top Angular Down, Top Angular Up, Top Horizontal, Up Blast |
| Housing Color | Gray |
| Maximum Ambient Temperature | 104 deg F |
| Minimum Airflow | 3,795 cfm |
| Inlet Diameter | 26-3/8 in |
| Electrical Connection | Ground Wire |
| Maximum Airflow | 12,500 cfm |
| Includes Drive Package | No |
| Overall Depth | 43 in |
| Outlet Width | 19-1/4 in |
| Minimum Motor Horsepower | 1.5 HP |
| AMCA Fan Class | I |
| Flange Type | Non-Flanged |
| Wheel Width | 12-3/8 in |
| Number of Inlets | 1 |
| Number of Discharge Positions | 8 |
| Maximum Inlet Air Temperature | 250 deg F |
| Mount Type | Motor Mount |
| Outlet Height | 26-1/4 in |
| Manufacturer Warranty Length | 1 yr (Limited) |
| Outlet Shape | Rectangular |
| Includes Motor | No |
| Country of Origin (subject to change) | Canada |
| Package Quantity | 1 |
