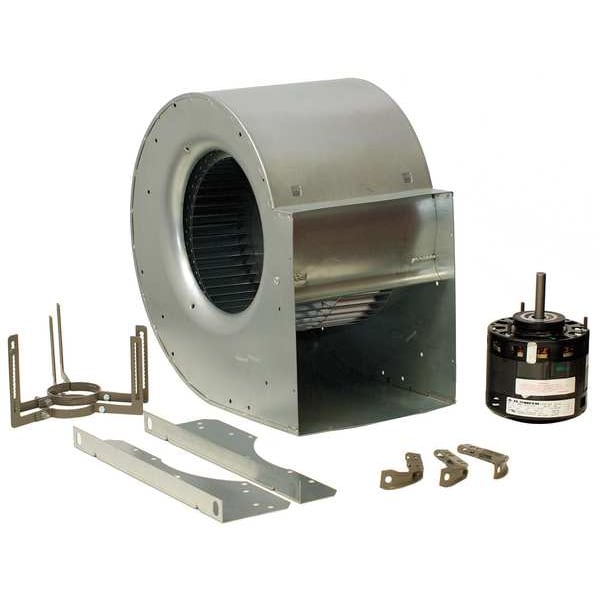

Blower, 9-1/2 In, 115 V, 2020 CFM at 0.700-In
| Item | Blower with Motor |
|---|---|
| Type | Double Inlet Forward Curve |
| CFM @ 1.200-In. SP | 1925 1650 1135 975 |
| Includes | Hardware, Housing Support |
| Motor Type | Permanent Split Capacitor |
| CFM @ 1.000-In. SP | 2200 1865 1675 1460 |
| CFM Range | 2020 to 1555 @ 0.7-In SP to 1.25-In SP |
| Bearing Type | Sleeve |
| Motor HP | 0.75 |
| Wheel Dia. | 10-13/16 in |
| Drive Type | Direct Drive |
| CFM @ 0.700-In. SP | # 2020 1745 1565 |
| Hz | 60 |
| CFM @ 1.10-In. SP | 2060 1790 1590 1245 |
| CFM @ 1.250-In. SP | 1555 - - - |
| Housing Height (In.) | 17-1/2 |
| Speed | 4 |
| Max. Inlet Temp. (Deg. F) | 104 |
| Full Load Amps | 8.7 |
| CFM @ 0.800-In. SP | # 2005 1735 1555 |
| Voltage | 115 |
| Assembled/Unassembled | Unassembled |
| CFM @ 1.500-In. SP | - - - - |
| CFM @ 0.300-In. SP | # # # # |
| Wheel Material | Steel |
| CFM @ 0.600-In. SP | # # # # |
| Max. Ambient Temp. (F) | 104 |
| Motor Enclosure | Open Air-Over |
| Mounting | Multipostion |
| Housing Width (In.) | 13-1/8 |
| CFM @ 0.000-In. SP | # # # # |
| Discharge Height (In.) | 11-3/8 |
| Wheel Width (In.) | 10-3/8 |
| Housing Depth (In.) | 16-1/2 |
| CFM @ 1.600-In. SP | - - - - |
| Discharge Width (In.) | 13-1/16 |
| Speed Controllable | No |
| Housing Material | Steel |
| CFM @ 0.900-In. SP | # 1905 1710 1530 |
| Phase | 1 |
| Housing Finish | None |
| CFM @ 0.400-In. SP | # # # # |
| CFM @ 1.30-In. SP | - - - - |
| CFM @ 1.70-In. SP | - - - - |
| Blower RPM | 1,075 RPM |
| CFM @ 0.500-In. SP | # # # # |
| Motor RPM | 1075 |
| Footnotes | # Motor Overload Condition |
| CFM @ 1.40-In. SP | - - - - |
| Features | Includes Housing Support with Resilient Pads to Help Minimize Vibration, Adjustable Motor Mounting Bracket with Hardware, and Assembly Instructions, the Included Mounting Bracket Adjusts to Fit Blower Motors 3-13/16 in to 6-5/8 in L, Unit Can Replace Most Direct-Drive Blowers with the Same Horsepower Ratings and is Suitable for Use in New and Replacement Installations, Blower Wheel Reinforced to Ensure Optimal Performance and Trouble-Free Service, this Dayton Blower with Motor Has a Discharge That can be Rotated in Four 90 Degrees Increments |
| Standards | CSA Certified, UL Listed |
| Application | Air Conditioning, Heating, Ventilation Systems |
| Resistance Properties | Corrosion Resistant |
| Nameplate Voltage | 115V AC |
| Airflow @ 5.000 in SP | Not Applicable |
| Airflow @ 12.00 in SP | Not Applicable |
| Outlet Height | 11-3/8 in |
| Airflow @ 10.00 in SP | Not Applicable |
| Airflow @ 6.000 in SP | Not Applicable |
| Motor Frame Designation | 48 YZ |
| Corrosion Resistant | Yes |
| Airflow @ 11.00 in SP | Not Applicable |
| Airflow @ 1.250 in SP | 1,555 cfm |
| Airflow @ 1.000 in SP | 2,200 cfm |
| Outlet Width | 13-1/16 in |
| Airflow @ 0.400 in SP | Not Applicable |
| Current | 10.6 A |
| Housing Depth | 16-1/2 in |
| Maximum Fan Speed | 1,075 rpm |
| Airflow @ 1.500 in SP | Not Applicable |
| Outlet Diameter | Not Applicable |
| Frequency | 60 Hz |
| Maximum Ambient Temperature | 104 Degrees F |
| Airflow @ 3.500 in SP | Not Applicable |
| Assembly | Unassembled |
| Airflow @ 13.00 in SP | Not Applicable |
| Housing Height | 17-1/2 in |
| Maximum Static Pressure | 1.25 in wc |
| Maximum Inlet Air Temperature | 104 deg F |
| Includes Mounting Hardware | Yes |
| Airflow @ 8.000 in SP | Not Applicable |
| Includes Motor | Yes |
| Airflow @ 3.000 in SP | Not Applicable |
| Airflow @ 4.500 in SP | Not Applicable |
| Manufacturer Warranty Length | 1 yr Limited |
| Number of Inlets | 2 |
| Airflow @ 0.000 in SP | Not Applicable |
| Wheel Diameter | 10-3/4 in |
| Mount Type | Multiposition |
| Airflow @ 7.000 in SP | Not Applicable |
| Housing Width | 13-1/8 in |
| Housing Material Finish | Galvanized |
| Outlet Shape | Rectangular |
| Airflow @ 2.000 in SP | Not Applicable |
| Flange Size | Not Applicable |
| Motor Horsepower | 0.75 HP |
| Includes Drive Package | Yes |
| Flange Type | Non-Flanged |
| Motor Duty Class | Continuous |
| Motor Speed | 1,075 rpm |
| Airflow @ 9.000 in SP | Not Applicable |
| Wheel Width | 10-3/8 in |
| Number of Discharge Positions | 4 |
| Airflow @ 0.100 in SP | Not Applicable |
| Wheel Type | Forward-Curved |
| Airflow @ 0.375 in SP | Not Applicable |
| Airflow @ 0.250 in SP | Not Applicable |
| Motor Insulation Class | B |
| Airflow @ 0.125 in SP | Not Applicable |
| Airflow @ 0.500 in SP | Not Applicable |
| Airflow @ 2.500 in SP | Not Applicable |
| Inlet Diameter | 8-11/16 in |
| High-Efficiency Motor | Yes |
| Airflow @ 4.000 in SP | Not Applicable |
| Number of Speeds | 4 |
| OEM Replacement | No |
| Country of Origin (subject to change) | China |
| Package Quantity | 1 |
