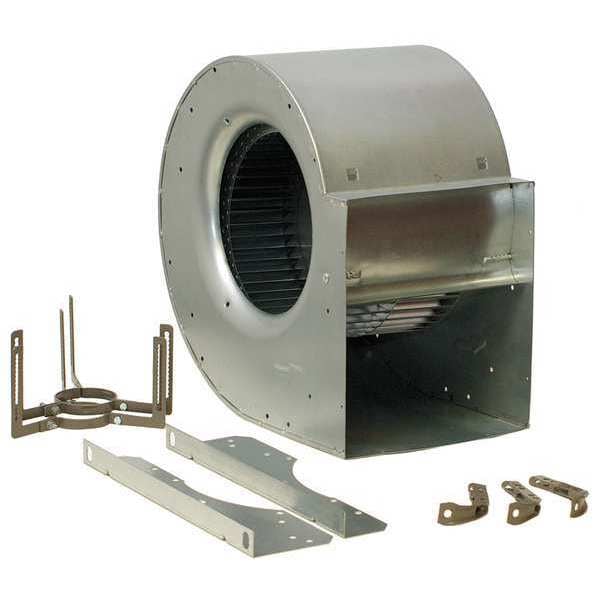

Blower, 9-1/2In, Less Mtr, Whl w/ 9-1/2
| Item | Blower |
|---|---|
| Type | Double Inlet Forward Curve, Direct Drive, Less Motor |
| Mounting | Multipostion |
| Max. Ambient Temp. (F) | 104 |
| Housing Height (In.) | 15-1/4 |
| Discharge Width (In.) | 11-3/4 |
| Wheel Dia. (In.) | 9-1/2 |
| Max. Inlet Temp. (Deg. F) | 104 |
| Includes | Mounting Bracket |
| Housing Depth (In.) | 15 |
| Wheel Material | Steel |
| Housing Width (In.) | 11-3/4 |
| Housing Finish | None |
| Wheel Width (In.) | 9-1/4 |
| Housing Material | Steel |
| Wheel Bore (In.) | 1/2 |
| Discharge Height (In.) | 10-5/16 |
| Speed Controllable | No |
| Bearing Type | Not Applicable |
| Drive Type | Direct Drive |
| Application | Air Conditioning, Exhausting, General Ventilation, Heating |
| Overall Width | 13-3/4 in |
| Overall Height | 15-1/2 in |
| Standards | Not Applicable |
| Features | Blower Wheel Reinforced to Ensure Optimal Performance and Trouble-Free Service, Mounting Bracket Adjusts to Fit Blower Motors 3-1/2" to 6-1/8" L, Unit Can Replace Most Direct-Drive Blowers with the Same Horsepower Ratings |
| OEM Replacement | Not Applicable |
| Outlet Diameter | Not Applicable |
| Rotation | CW |
| Market | Commercial, Residential |
| Includes Drive Package | No |
| Overall Depth | 14-7/8 in |
| Minimum Airflow | 350 cfm |
| Maximum Ambient Temperature | 104 Degrees F |
| Minimum Ambient Temperature | -4 deg F |
| Wheel Width | 9-1/4 in |
| Number of Discharge Positions | 4 |
| Flange Type | Non-Flanged |
| Motor Location | Not Applicable |
| Hazardous Location Specification | Not Applicable |
| Maximum Motor Speed | Not Applicable |
| Minimum Motor Horsepower | 0.25 HP |
| Maximum Airflow | 1,700 cfm |
| Mount Type | Multiposition |
| For High-Static Pressure Applications | Yes |
| Discharge Position | Bottom Horizontal; Down Blast; Top Horizontal; Up Blast |
| Housing Color | Silver |
| Manufacturer Warranty Length | 1 yr Limited |
| Housing Material Finish | Galvanized |
| Chemical Resistant | No |
| Inlet Diameter | 7-3/4 in |
| Wheel Type | Forward-Curved |
| Outlet Width | 11-3/4 in |
| Outlet Shape | Rectangular |
| For Air Type | Clean, General |
| Hazardous Location Application | No |
| Replacement For | Not Applicable |
| AMCA Fan Class | Not Rated |
| Mounting Orientation | Multiposition |
| Housing Width | 11.7 in |
| Wheel Diameter | 9-1/2 in |
| Number of Inlets | 2 |
| Maximum Inlet Air Temperature | 104 deg F |
| Includes Motor | No |
| Resistance Properties | Corrosion Resistant |
| Brake Horsepower | Not Applicable |
| Current | Not Applicable |
| Housing Depth | 15 in |
| Outlet Height | 10-1/4 in |
| Housing Height | 15.2 in |
| Includes Mounting Hardware | Yes |
| Housing Material Gauge | 1 mm |
| Thermal Overload Protection | Not Applicable |
| Frequency | Not Applicable |
| For Location | Indoor |
| Wheel Bore Diameter | 1/2 in |
| Compatible Speed Control | Not Applicable |
| Flange Size | Not Applicable |
| Motor Frame Designation | Not Applicable |
| Wheel Material Finish | Galvanized |
| Sound Level | Not Rated |
| Housing Material Grade | DC51 |
| Maximum Motor Horsepower | 0.75 HP |
| Shaft Diameter | 1/2 in |
| Minimum Motor Speed | Not Applicable |
| For Ventilation Type | Exhaust, Make-Up, Return, Supply |
| Maximum Static Pressure | 1 in wc |
| Assembly | Unassembled |
| Corrosion Resistant | Yes |
| Electrical Connection | Not Applicable |
| Spark Resistant Construction Type | Not Applicable |
| Minimum Fan Speed | 1,050 rpm |
| Maximum Fan Speed | 1,075 rpm |
| Country of Origin (subject to change) | China |
| Package Quantity | 1 |
