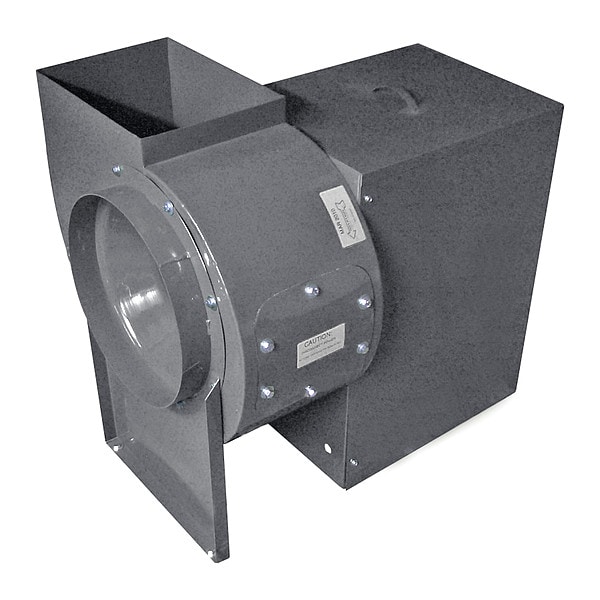

Blower, Belt Drive, 22 1/4 in Wheel Dia
| Airflow @ 2.500 in SP | Not Applicable |
|---|---|
| For Ventilation Type | Exhaust |
| Maximum Inlet Air Temperature | 300 deg F |
| Airflow @ 7.000 in SP | Not Applicable |
| Assembly | Unassembled |
| Discharge Position | Upblast |
| Airflow @ 8.000 in SP | Not Applicable |
| Minimum Fan Speed | 888 RPM |
| Flange Size | Not Applicable |
| Market | Commercial |
| Airflow @ 6.000 in SP | Not Applicable |
| For Location | Indoor, Outdoor |
| Mounting Orientation | Horizontal |
| Rotation | CW |
| Wheel Width | 8-9/16 in |
| Manufacturer Warranty Length | 1 yr |
| Standards | Intertek 705 |
| Number of Discharge Positions | 8 |
| Inlet Diameter | 23-9/16 in |
| Bearing Type | Pillow Block Bearing |
| Airflow @ 0.375 in SP | Not Applicable |
| Housing Material | Steel |
| Wheel Type | Backward-Inclined |
| Wheel Diameter | 22-1/4 in |
| Airflow @ 0.500 in SP | 7,518 cfm |
| Overall Width | 48-7/16 in |
| Airflow @ 0.100 in SP | Not Applicable |
| Includes Drive Package | Yes |
| Maximum Ambient Temperature | 300 Degrees F |
| Airflow @ 12.00 in SP | Not Applicable |
| Airflow @ 5.000 in SP | Not Applicable |
| Hazardous Location Specification | Not Applicable |
| Maximum Fan Speed | 1,211 rpm |
| Drive Type | Belt Drive |
| Phase | 3 |
| Airflow @ 9.000 in SP | Not Applicable |
| Housing Color | Gray |
| Airflow @ 1.500 in SP | 6,943 cfm |
| Airflow @ 10.00 in SP | Not Applicable |
| Outlet Height | 23 9/16 in |
| Chemical Resistant | No |
| Wheel Material | Aluminum |
| Airflow @ 0.000 in SP | 7,908 cfm |
| Speed Controllable | No |
| Airflow @ 11.00 in SP | Not Applicable |
| Airflow @ 0.750 in SP | 7,393 cfm |
| For High-Static Pressure Applications | Yes |
| Hazardous Location Application | No |
| Airflow @ 0.250 in SP | 7,658 cfm |
| Maximum Static Pressure | 5 in wc |
| Airflow @ 0.400 in SP | Not Applicable |
| Airflow @ 3.500 in SP | Not Applicable |
| Motor Enclosure | Open Dripproof |
| Compatible Speed Control | Not Applicable |
| Motor Horsepower | 3 HP |
| Airflow @ 1.250 in SP | 7,093 cfm |
| Outlet Shape | Rectangular |
| Airflow @ 4.500 in SP | Not Applicable |
| Shaft Diameter | 1-3/16 in |
| Airflow @ 13.00 in SP | Not Applicable |
| Corrosion Resistant | No |
| Wheel Bore Diameter | 1-3/16 in |
| Overall Depth | 40-7/16 in |
| Airflow @ 3.000 in SP | 6,043 cfm |
| Number of Speeds | 1 |
| Item | Exhaust Blower, 22 1/4 in Wheel Belt D |
| Number of Inlets | 1 |
| Airflow @ 4.000 in SP | Not Applicable |
| For Air Type | Dirty and Dusty, Clean Air, Greasy, High Temperature, Spark Resistant |
| Airflow @ 2.000 in SP | 6,643 cfm |
| Outlet Width | 17-3/4 in |
| Airflow @ 1.000 in SP | 7,243 cfm |
| Airflow @ 0.125 in SP | 7,783 cfm |
| Overall Height | 44-3/8 in |
| Spark Resistant Construction Type | B |
| Wheel Material Finish | Aluminum Plated |
| Nameplate Voltage | 208-230/460V AC |
| Flange Type | Non-Flanged |
| OEM Replacement | No |
| Country of Origin (subject to change) | Multiple |
| Package Quantity | 1 |
