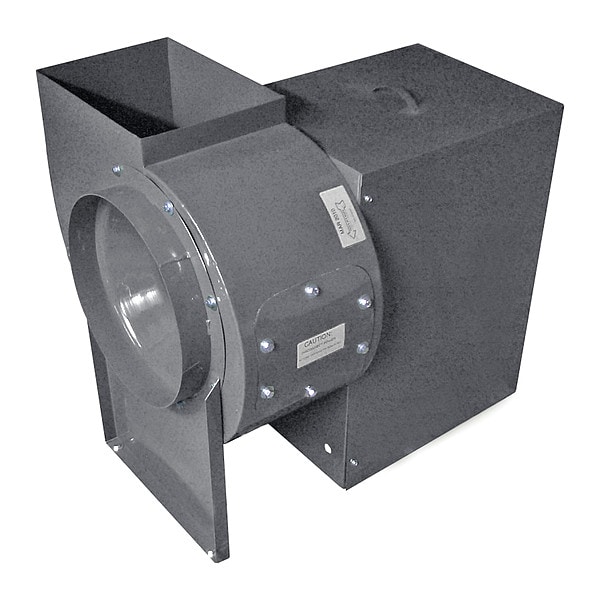

Blower, Belt Drive, 24 1/2 in Wheel Dia
| Wheel Type | Backward-Inclined |
|---|---|
| Airflow @ 1.000 in SP | 9,593 cfm |
| Overall Height | 49-15/16 in |
| Compatible Speed Control | Not Applicable |
| Overall Depth | 44-11/16 in |
| Airflow @ 2.000 in SP | 8,993 cfm |
| Housing Color | Gray |
| Chemical Resistant | No |
| Airflow @ 0.375 in SP | Not Applicable |
| Speed Controllable | No |
| Airflow @ 1.250 in SP | 9,443 cfm |
| Airflow @ 2.500 in SP | Not Applicable |
| For High-Static Pressure Applications | Yes |
| Includes Drive Package | Yes |
| Flange Type | Flanged |
| Assembly | Unassembled |
| Airflow @ 9.000 in SP | Not Applicable |
| Number of Discharge Positions | 8 |
| Airflow @ 0.100 in SP | Not Applicable |
| Maximum Static Pressure | 5 in wc |
| Standards | Intertek 705 |
| Outlet Width | 19-3/8 in |
| Hazardous Location Specification | Not Applicable |
| Drive Type | Belt Drive |
| Corrosion Resistant | No |
| Maximum Ambient Temperature | 300 Degrees F |
| Airflow @ 0.125 in SP | 10,133 cfm |
| Maximum Fan Speed | 1,181 rpm |
| Motor Enclosure | Open Dripproof |
| Wheel Bore Diameter | 1-7/16 in |
| For Ventilation Type | Exhaust |
| For Location | Indoor, Outdoor |
| Rotation | CW |
| Item | Exhaust Blower, 24 1/2 in Wheel Belt Dr |
| Airflow @ 0.250 in SP | 10,008 cfm |
| Inlet Diameter | 26 in |
| Airflow @ 0.500 in SP | 9,868 cfm |
| Airflow @ 13.00 in SP | Not Applicable |
| Number of Speeds | 1 |
| Market | Commercial |
| Minimum Fan Speed | 866 RPM |
| Airflow @ 0.400 in SP | Not Applicable |
| Bearing Type | Pillow Block Bearing |
| Airflow @ 11.00 in SP | Not Applicable |
| Number of Inlets | 1 |
| Airflow @ 10.00 in SP | Not Applicable |
| Hazardous Location Application | No |
| Airflow @ 4.500 in SP | Not Applicable |
| Manufacturer Warranty Length | 1 yr |
| Outlet Height | 26 1/8 in |
| Phase | 3 |
| Airflow @ 0.750 in SP | 9,743 cfm |
| Wheel Diameter | 24-1/2 in |
| Airflow @ 8.000 in SP | Not Applicable |
| For Air Type | Dirty and Dusty, Clean Air, Greasy, High Temperature, Spark Resistant |
| Mounting Orientation | Horizontal |
| Airflow @ 3.000 in SP | 8,393 cfm |
| Outlet Shape | Rectangular |
| Housing Material | Steel |
| Wheel Material | Aluminum |
| Airflow @ 7.000 in SP | Not Applicable |
| Overall Width | 51-5/16 in |
| Flange Size | 1" |
| Airflow @ 3.500 in SP | Not Applicable |
| Discharge Position | Upblast |
| Airflow @ 12.00 in SP | Not Applicable |
| Wheel Width | 9-7/16 in |
| Motor Horsepower | 5 HP |
| Shaft Diameter | 1-7/16 in |
| Airflow @ 6.000 in SP | Not Applicable |
| Maximum Inlet Air Temperature | 300 deg F |
| Airflow @ 0.000 in SP | 10,258 cfm |
| Airflow @ 1.500 in SP | 9,293 cfm |
| Airflow @ 5.000 in SP | Not Applicable |
| Airflow @ 4.000 in SP | Not Applicable |
| Nameplate Voltage | 230/460V AC |
| Spark Resistant Construction Type | B |
| Wheel Material Finish | Aluminum Plated |
| OEM Replacement | No |
| Country of Origin (subject to change) | Multiple |
| Package Quantity | 1 |
