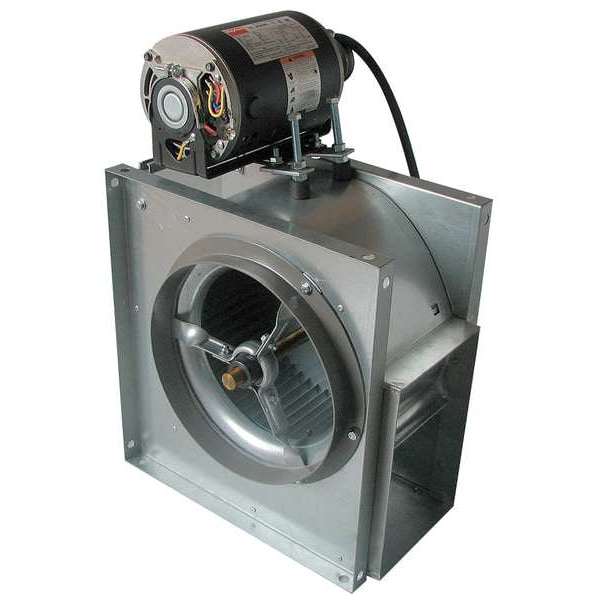

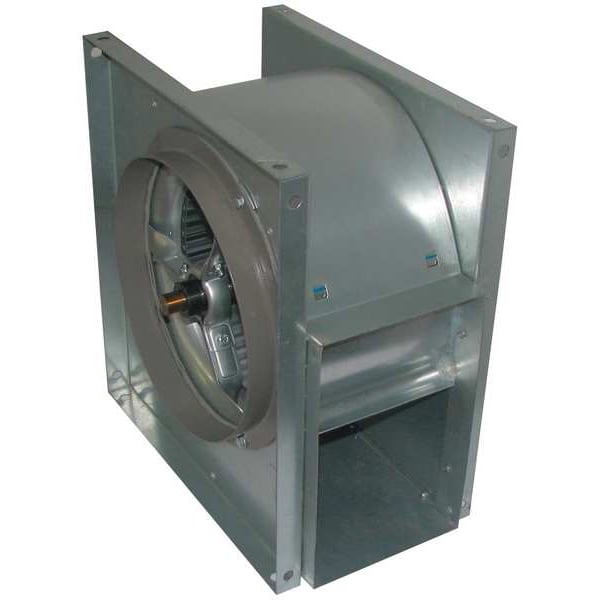

Blower, Duct, 10-1/4 In, Less Drive Pkg, Blower RPM: 925
| Wheel Dia. (In.) | 10-1/4 |
|---|---|
| Item | Blower |
| Type | Single Inlet Forward Curve, Belt Drive, Drive Package |
| Wheel Width (In.) | 4-9/16 |
| Housing Length (In.) | 14-5/8 |
| Dimension E (In.) | 10-5/16 |
| Inlet Dia. (In.) | 9-13/16 |
| Dimension F (In.) | 9-13/16 |
| Dimension J (In.) | 8-7/8 |
| Dimension X (In.) | 3/8 in |
| Dimension A (In.) | 15-1/4 |
| Dimension M (In.) | 6 |
| Blower RPM | 925 RPM |
| Housing Material | Steel |
| Rotation | Viewing Drive Side |
| Dimension T (In.) | 1 1/16 in |
| Dimension K (In.) | 6 1/2 in |
| Max. Inlet Temp. (Deg. F) | 150 |
| Dimension Z (In.) | 1/2 in |
| Housing Width (In.) | 6-1/2 |
| Discharge Height (In.) | 10-5/16 |
| Bearing Type | Ball |
| Housing Finish | None |
| Dimension G (In.) | 9-1/2 |
| Dimension S (In.) | 3-1/8 |
| Dimension D (In.) | 11/16 in |
| Mounting Position | Blower Shaft Horizontal |
| Dimension B (In.) | 14-5/8 |
| Dimension C (In.) | 7-5/16 |
| Shaft Dia. (In.) | 3/4 |
| Discharge Width (In.) | 6-1/2 |
| Dimension L (In.) | 16-1/8 |
| Dimension H (In.) | 8 5/8 in |
| Dimension R (In.) | 3/4 |
| Dimension Y (In.) | 13/16 in |
| Housing Height (In.) | 15-1/4 |
| Max. Blower RPM | 1,450 RPM |
| Max. Ambient Temp. (F) | 104 |
| Wheel Material | Steel |
| Wheel Type | Forward-Curved |
| Includes | Blower Wheel, Galvanized Housing, Housing Support with Resilient Mounting Pad, Motor Mounting Bracket with Hardware Bag |
| Speed Controllable | No |
| Drive Type | Belt Drive |
| Application | Air Conditioning, Exhausting, General Ventilation, Heating |
| Features | Quiet, Efficient Performance |
| Overall Width | 11-1/2 in |
| Standards | Not Applicable |
| Overall Height | 16-1/8 in |
| Frequency | Not Applicable |
| Includes Motor | No |
| For Ventilation Type | Exhaust, Make-Up, Return, Supply |
| Maximum Ambient Temperature | 104 deg F |
| Thermal Overload Protection | Not Applicable |
| Spark Resistant Construction Type | Not Applicable |
| Wheel Material Finish | Galvanized |
| Wheel Diameter | 10-1/4 in |
| Motor Frame Designation | Not Applicable |
| Sound Level | Not Rated |
| Includes Mounting Hardware | Yes |
| Number of Inlets | 1 |
| Maximum Inlet Air Temperature | 150 deg F |
| Flange Type | Non-Flanged |
| Maximum Motor Horsepower | 1 HP |
| Discharge Position | Bottom Horizontal, Down Blast, Top Horizontal, Up Blast |
| Market | Commercial, Residential |
| Minimum Motor Horsepower | 0.25 HP |
| Maximum Motor Speed | Not Applicable |
| Compatible Speed Control | Not Applicable |
| For Location | Indoor |
| Minimum Fan Speed | 925 RPM |
| Outlet Diameter | Not Applicable |
| Housing Depth | 15.3 in |
| Manufacturer Warranty Length | 1 yr (Limited) |
| Wheel Bore Diameter | 3/4 in |
| Hazardous Location Specification | Not Applicable |
| Resistance Properties | Corrosion Resistant |
| Minimum Ambient Temperature | -4 deg F |
| OEM Replacement | Not Applicable |
| Outlet Width | 6-1/2 in |
| Maximum Airflow | 1,960 cfm |
| Housing Material Gauge | 1.2 mm |
| Minimum Airflow | 810 cfm |
| Replacement For | Not Applicable |
| Overall Depth | 15-1/4 in |
| Brake Horsepower | Not Applicable |
| Shaft Diameter | 3/4 in |
| Number of Discharge Positions | 4 |
| Housing Height | 15.2 in |
| Motor Location | Not Applicable |
| Current | Not Applicable |
| Housing Color | Silver |
| Housing Material Grade | DC51 |
| For High-Static Pressure Applications | Yes |
| Corrosion Resistant | Yes |
| Electrical Connection | Not Applicable |
| Outlet Height | 10-1/4 in |
| Hazardous Location Application | No |
| Mounting Orientation | Multiposition |
| AMCA Fan Class | Not Rated |
| Maximum Static Pressure | 1 in wc |
| Outlet Shape | Rectangular |
| Assembly | Unassembled |
| Minimum Motor Speed | Not Applicable |
| Chemical Resistant | No |
| Maximum Fan Speed | 1,450 rpm |
| Flange Size | Not Applicable |
| Inlet Diameter | 9-3/4 in |
| Housing Material Finish | Galvanized |
| Housing Width | 6-1/2 in |
| For Air Type | General/Clean |
| Mount Type | Multiposition |
| Includes Drive Package | No |
| Wheel Width | 4-1/2 in |
| Country of Origin (subject to change) | China |
| Package Quantity | 1 |
