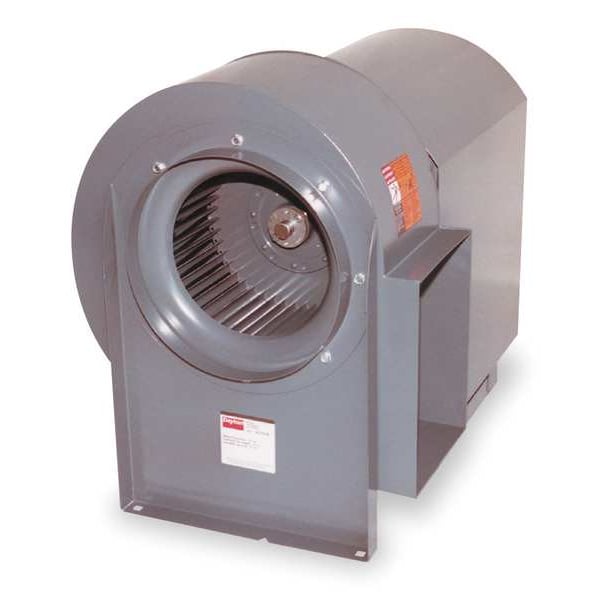

Blower, Steel, BALL, 33-1/8 in. H
| Wheel Dia. (In.) | 16-1/2 |
|---|---|
| Item | Blower |
| Type | Drive Package |
| Assembled/Unassembled | Assembled |
| Depth (In.) | 37 |
| Housing Material | Steel |
| Housing Finish | Gray Baked Polyester Epoxy |
| Rotation | CW |
| Includes | Weatherproof Drive Cover |
| Shaft Dia. (In.) | 1 |
| Bearing Type | Pillow Block Ball |
| Max. Inlet Temp. (Deg. F) | 250 |
| Inlet Dia. (In.) | 17-7/8 |
| Motor Frame | 184T |
| Wheel Material | Steel |
| Motor HP Range | 0.25 to 5 |
| Discharge Height (In.) | 17-3/4 |
| Height (In.) | 33-1/8 |
| Discharge Width (In.) | 13 |
| Width (In.) | 28-7/8 |
| Wheel Type | Forward-Curved |
| Application | Heating and Air Conditioning Systems where Low to Medium Pressures are Encountered |
| Drive Type | Belt Drive |
| Overall Width | 28-7/8 in |
| Housing Color | Gray |
| Maximum Inlet Air Temperature | 250 deg F |
| Assembly | Unassembled |
| Discharge Position | Bottom Angular Down, Bottom Angular Up, Bottom Horizontal, Down Blast, Top Angular Down, Top Angular Up, Top Horizontal, Up Blast |
| Outlet Shape | Rectangular |
| Outlet Height | 17-3/4 in |
| Includes Drive Package | No |
| Wheel Diameter | 16-1/4 in |
| Housing Material Finish | Gray Polyester Epoxy |
| Motor Frame Designation | 184T |
| Mount Type | Motor Mount |
| Maximum Motor Horsepower | 5 HP |
| AMCA Fan Class | I |
| Maximum Fan Speed | 987 RPM |
| Flange Type | Non-Flanged |
| Outlet Diameter | Not Applicable |
| Electrical Connection | Ground Wire |
| Minimum Motor Horsepower | 0.5 HP |
| Inlet Diameter | 17-7/8 in |
| Overall Height | 33-1/8 in |
| Outlet Width | 13 in |
| Maximum Static Pressure | 2 in wc |
| Maximum Airflow | 6,195 cfm |
| Number of Inlets | 1 |
| Minimum Airflow | 1,880 cfm |
| Minimum Fan Speed | 491 RPM |
| Overall Depth | 37 in |
| Shaft Diameter | 1 in |
| Manufacturer Warranty Length | 1 yr (Limited) |
| Number of Discharge Positions | 8 |
| Standards | AMCA Air Performance Certified, NEC, OSHA |
| Includes Motor | No |
| Country of Origin (subject to change) | Canada |
| Package Quantity | 1 |
