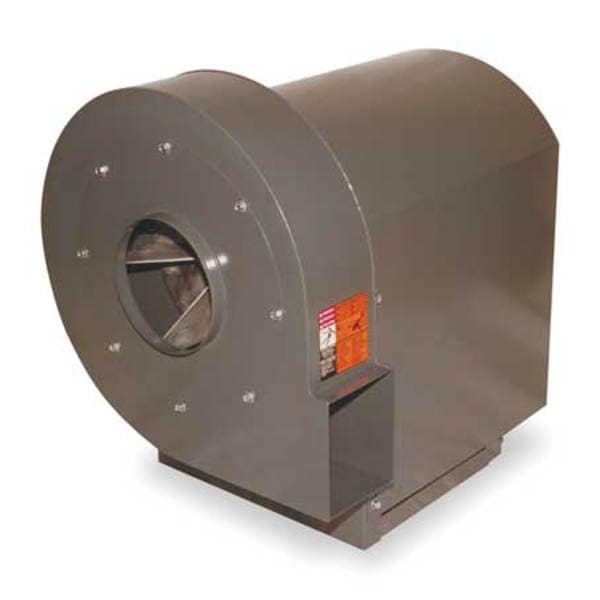

Blower, w/ Dr Pkg, 10 5/8 Dia, 208-230/460V
| Item | High Pressure Blower |
|---|---|
| Type | With Drive Package |
| Wheel Dia. (In.) | 10-5/8 |
| Voltage | 208-230/460 |
| Motor HP | 1 |

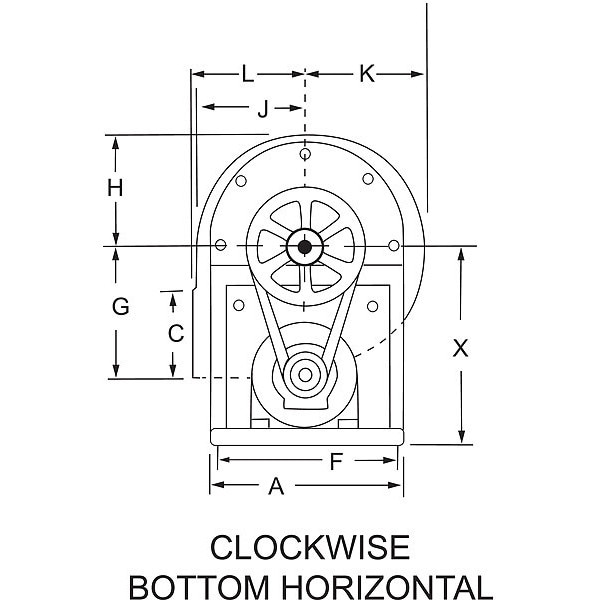

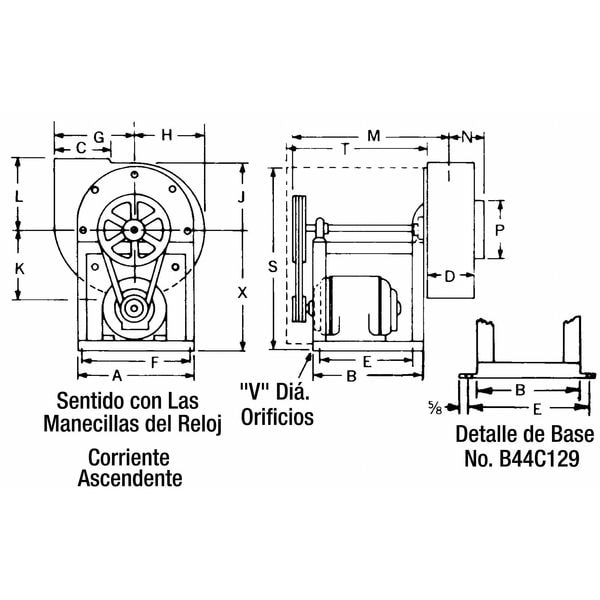

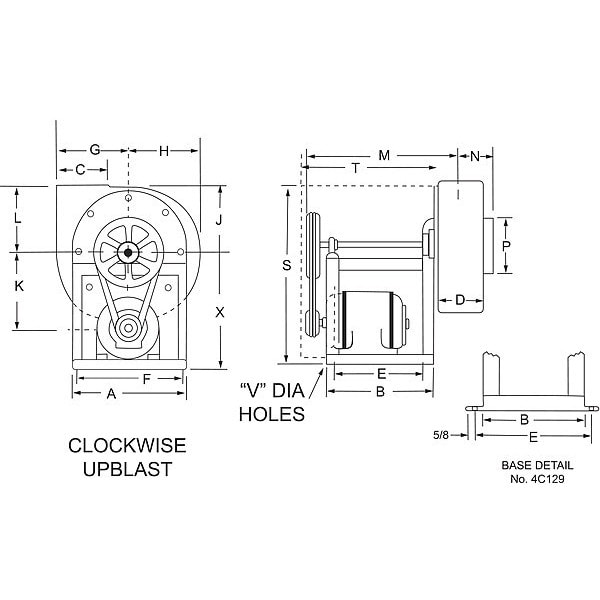

| Dimension G (In.) | 8-5/8 |
| Motor Type | 3-Phase |
| Includes | 1VP4478, 2MXT3, 4C129, 4L300, AK3934 |
| Bearing Type | Ball |
| Dimension Q (In.) | 7/16 |
| CFM @ 8.000-In. SP | 317 @3700 RPM |
| Discharge Width (In.) | 3-1/2 |
| Max. Inlet Temp. (Deg. F) | 180 |
| Wheel Material | Aluminum |
| Rotation | CW |
| Dimension M (In.) | 7-5/8 |
| Dimension T (In.) | 14 |
| Dimension H (In.) | 7-1/4 |
| Housing Finish | Gray Polyester Epoxy |
| Motor Enclosure | Totally Enclosed Fan Cooled |
| Max. Blower RPM | 3,700 RPM |
| CFM @ 1.000-In. SP | 648 @3100 RPM |
| Dimension N (In.) | 17-3/4 |
| Dimension A (In.) | 12-7/8 |
| Stock No. | 4C129 |
| Max. Ambient Temp. (F) | 104 |
| Dimension V (In.) | 20 9/16 in |
| Dimension R (In.) | 2-7/8 |
| Hz | 60 |
| Housing Width (In.) | 20 |
| CFM @ 6.000-In. SP | 427 @3500 RPM |
| Phase | 3 |
| dBA @ 5 Feet | 87 dBA |
| Dimension B (In.) | 13 |
| CFM @ 4.000-In. SP | 527 @3350 RPM |
| Housing Length (In.) | 16 |
| Motor Frame | 56 |
| Wheel Width (In.) | 3 |
| Motor RPM | 3,450 RPM |
| Dimension F (In.) | 10-3/4 |
| Motor Insulation | Class F |
| Full Load Amps | 3.0-2.8/1.4 |
| Dimension L (In.) | 8 |
| Dimension P (In.) | 6 |
| Dimension X (In.) | 17 |
| Inlet Dia. (In.) | 6 |
| CFM @ 2.000-In. SP | 614 @3200 RPM |
| CFM @ 7.000-In. SP | 378 @3600 RPM |
| Discharge Height (In.) | 4 |
| Dimension D (In.) | 3-1/2 |
| Dimension J (In.) | 6-1/2 |
| CFM @ 3.000-In. SP | 579 @3300 RPM |
| Housing Material | Steel |
| Housing Height (In.) | 21 |
| Dimension E (In.) | 14-1/4 |
| Shaft Dia. (In.) | 3/4 |
| CFM @ 5.000-In. SP | 471 @3400 RPM |
| Dimension C (In.) | 4 |
| Motor Speed | 3,475 rpm |
| Motor Horsepower | 1 HP |
| Number of Inlets | 1 |
| Housing Depth | 16 in |
| Housing Height | 21 in |
| Inlet Diameter | 6 in |
| Application | Industrial |
| Maximum Static Pressure | 8 in wc |
| Motor Insulation Class | F |
| Airflow @ 10.00 in SP | Not Applicable |
| Motor Duty Class | Continuous |
| Frequency | 60 Hz |
| Wheel Diameter | 10-5/8 in |
| Wheel Width | 3 in |
| Airflow @ 7.000 in SP | 378 cfm |
| Housing Material Finish | Gray Polyester Epoxy |
| Airflow @ 11.00 in SP | Not Applicable |
| Manufacturer Warranty Length | 1 yr (Limited) |
| Outlet Height | 4 in |
| Maximum Ambient Temperature | 104 deg F |
| Airflow @ 13.00 in SP | Not Applicable |
| Airflow @ 4.000 in SP | 527 cfm |
| Overall Height | 20-9/16 in |
| Drive Type | Belt Drive |
| Market | Industrial |
| Standards | CE Compliant, CSA Certified, UL Listed |
| Includes Motor | Yes |
| Overall Depth | 16 in |
| Maximum Inlet Air Temperature | 180 deg F |
| Housing Material Gauge | 16 ga |
| Airflow @ 9.000 in SP | Not Applicable |
| Wheel Type | Radial |
| Shaft Diameter | 3/4 in |
| Outlet Width | 3-1/2 in |
| Minimum Fan Speed | 3,100 rpm |
| Airflow @ 8.000 in SP | 317 cfm |
| Airflow @ 6.000 in SP | 427 cfm |
| Airflow @ 3.000 in SP | 579 cfm |
| Maximum Fan Speed | 3,700 rpm |
| Nameplate Voltage | 230/460V AC |
| Assembly | Unassembled |
| Airflow @ 12.00 in SP | Not Applicable |
| Motor Frame Designation | 56 |
| Housing Width | 20 in |
| Includes Drive Package | Yes |
| Airflow @ 1.000 in SP | 648 cfm |
| Flange Type | Non-Flanged |
| Overall Width | 12-7/8 in |
| Flange Size | Not Applicable |
| Current | 2.8/1.4 A |
| Outlet Shape | Rectangular |
| Sound Level | 87 dBA @ 5 ft |
| Airflow @ 5.000 in SP | 471 cfm |
| Airflow @ 2.000 in SP | 614 cfm |
| Housing Color | Gray |
| Features | Comes Complete with Weatherproof Drive Cover and Dynamically Balanced, Heavy-Duty Die-Cast Aluminum Wheels, Self-Aligning Ball Bearing Pillow Blocks |
| Outlet Diameter | Not Applicable |
| Number of Speeds | 1 |
| Resistance Properties | For Damp Environments |
| OEM Replacement | No |
| Country of Origin (subject to change) | Multiple |
| Package Quantity | 1 |
