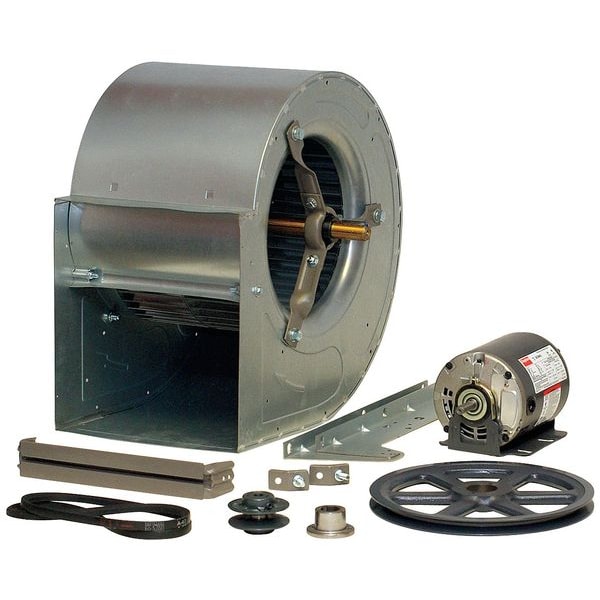

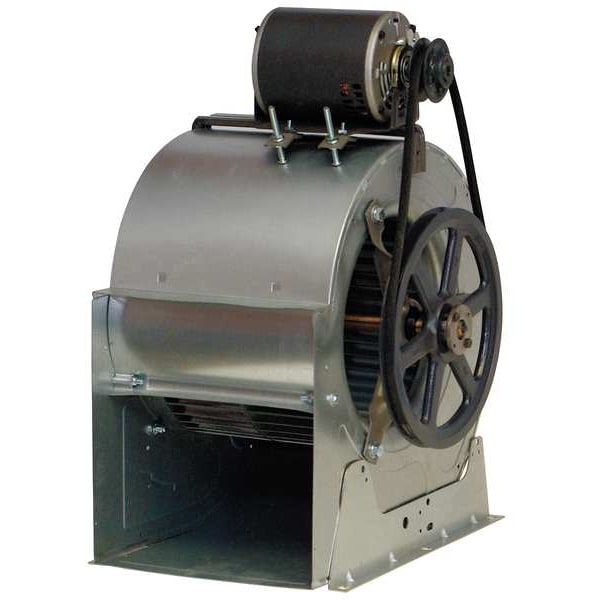

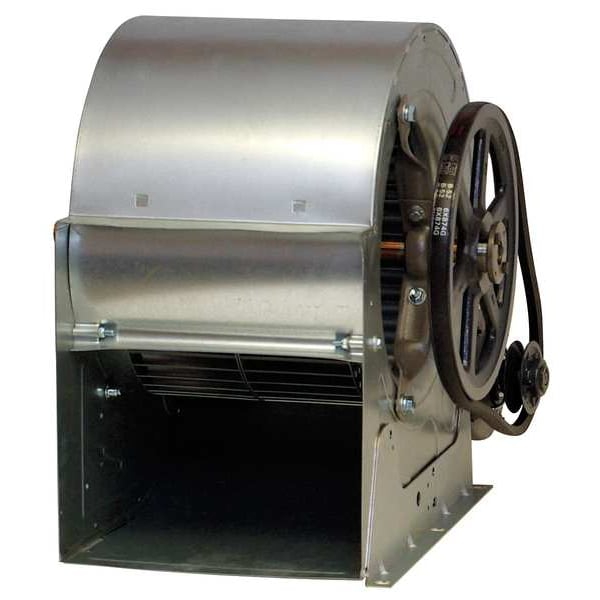

Blower w/ Dr Pkg, 11-1/8 In, 115/208-230V
| Wheel Dia. | 11-1/8 in |
|---|---|
| Item | Blower with Motor and Drive Package |
| Type | Double Inlet Forward Curve |
| Wheel Width (In.) | 10-1/8 |
| Voltage | 115/208-230 |
| Motor HP | 0.75 |
| Discharge Height | 7 in |
| Mounting | Multiposition |
| Discharge Width | 13-1/8 in |
| CFM @ 0.250-In. SP | # |
| CFM @ 0.500-In. SP | 2,450 cfm |
| Assembled/Unassembled | Unassembled |
| Motor Enclosure | Open Dripproof |
| Includes | Isolation Grommet, Mounting Hardware |
| CFM Range | 2450 to 1620 @ 0.500-in SP to 0.750-in SP |
| Motor RPM | 1,725 RPM |
| Max. Inlet Temp. (Deg. F) | 150 |
| Housing Width (In.) | 13-1/8 |
| Max. Ambient Temp. (F) | 104 |
| Housing Material | Steel |
| Motor Type | Split Phase |
| Hz | 60 Hz |
| Speed | 1 |
| Housing Finish | None |
| CFM @ 0.125-In. SP | # |
| Housing Height (In.) | 18-13/16 |
| Blower RPM | 857 RPM |
| CFM @ 0.625-In. SP | 2,050 cfm |
| CFM @ 0.375-In. SP | # |
| Drive Type | Belt Drive |
| Speed Controllable | No |
| Phase | 1 |
| Bearing Type | Ball |
| Footnotes | # Motor Overload Condition |
| Full Load Amps | 11.6/5.9-5.8 |
| Housing Depth (In.) | 16-9/16 |
| CFM @ 0.750-In. SP | 1,620 cfm |
| Wheel Material | Steel |
| Wheel Type | Forward-Curved |
| Maximum Ambient Temperature | 104 deg F |
| Airflow @ 1.000 in SP | Not Applicable |
| Manufacturer Warranty Length | 1 yr (Limited) |
| Airflow @ 3.500 in SP | Not Applicable |
| Wheel Width | 10-1/8 in |
| Flange Size | Not Applicable |
| Airflow @ 0.125 in SP | Not Applicable |
| Assembly | Unassembled |
| Airflow @ 13.00 in SP | Not Applicable |
| Maximum Inlet Air Temperature | 150 deg F |
| Maximum Static Pressure | 0.75 in wc |
| Features | Variable-Pitch Motor Sheave, Precision-Ground Shafting with Both Keyways and Flats for a Wide Range of Drives and Hp |
| Airflow @ 0.500 in SP | 2,450 cfm |
| Maximum Fan Speed | 857 RPM |
| Number of Inlets | 2 |
| Standards | CSA Certified, UL Listed |
| Motor Speed | 1,725 rpm |
| Airflow @ 1.250 in SP | Not Applicable |
| Outlet Width | 13-1/8 in |
| Airflow @ 0.750 in SP | 1,620 cfm |
| Airflow @ 2.000 in SP | Not Applicable |
| Airflow @ 5.000 in SP | Not Applicable |
| Housing Depth | 16-1/2 in |
| Outlet Height | 7 in |
| Airflow @ 6.000 in SP | Not Applicable |
| Includes Motor | Yes |
| Airflow @ 0.400 in SP | Not Applicable |
| Airflow @ 7.000 in SP | Not Applicable |
| Motor Duty Class | Continuous |
| Housing Width | 13-1/8 in |
| Nameplate Voltage | 115/208-230V AC |
| Airflow @ 2.500 in SP | Not Applicable |
| Number of Speeds | 1 |
| Frequency | 60 Hz |
| Mount Type | Multiposition |
| Outlet Shape | Rectangular |
| Outlet Diameter | Not Applicable |
| Motor Horsepower | 0.75 HP |
| Airflow @ 8.000 in SP | Not Applicable |
| Airflow @ 11.00 in SP | Not Applicable |
| Airflow @ 10.00 in SP | Not Applicable |
| Current | 11.2/5.6 A |
| Airflow @ 1.500 in SP | Not Applicable |
| Airflow @ 0.375 in SP | Not Applicable |
| Airflow @ 0.250 in SP | Not Applicable |
| Includes Drive Package | Yes |
| Inlet Diameter | 9-1/8 in |
| Housing Material Finish | Galvanized |
| Includes Mounting Hardware | Yes |
| Motor Insulation Class | B |
| Housing Height | 18-3/4 in |
| Motor Frame Designation | 56 |
| Airflow @ 3.000 in SP | Not Applicable |
| Airflow @ 9.000 in SP | Not Applicable |
| Wheel Diameter | 11-1/8 in |
| Flange Type | Non-Flanged |
| Airflow @ 4.500 in SP | Not Applicable |
| Airflow @ 0.100 in SP | Not Applicable |
| Airflow @ 4.000 in SP | Not Applicable |
| Airflow @ 0.000 in SP | Not Applicable |
| Airflow @ 12.00 in SP | Not Applicable |
| OEM Replacement | No |
| Country of Origin (subject to change) | Multiple |
| Package Quantity | 1 |
