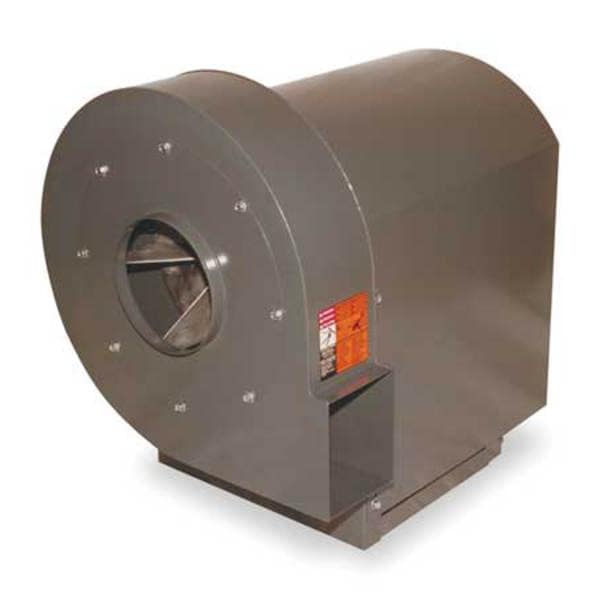

Blower, w/ Dr Pkg, 13 1/2 Dia, 208-230/460V
| Item | High Pressure Blower |
|---|---|
| Type | With Drive Package |
| Wheel Dia. (In.) | 13-1/2 |
| Voltage | 208-230/460 |
| Motor HP | 2 |
| Max. Ambient Temp. (F) | 104 |
| Discharge Height (In.) | 7-1/8 |

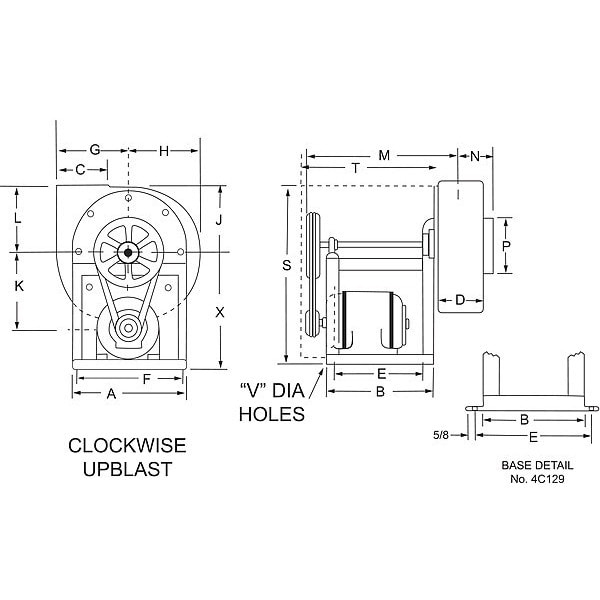

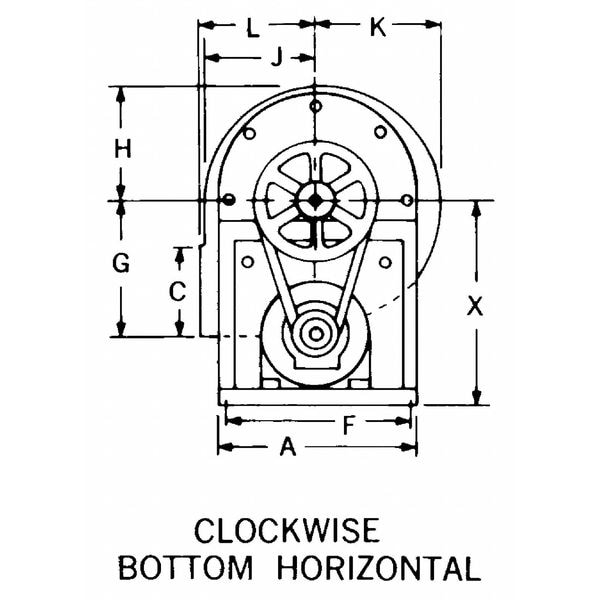

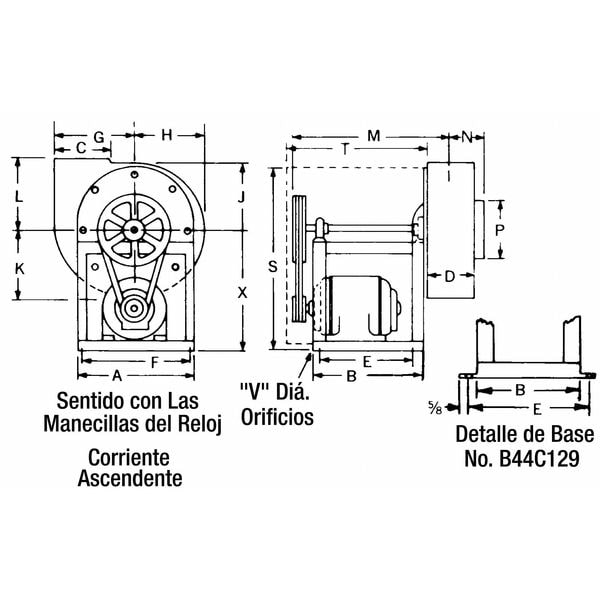

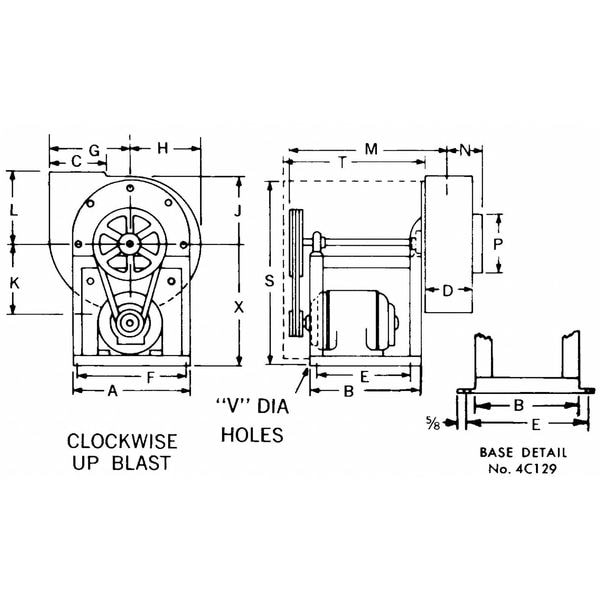

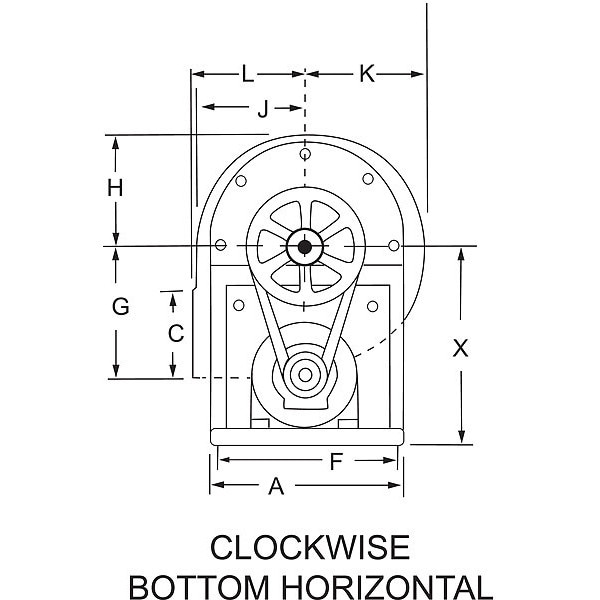

| Dimension V (In.) | 25 7/8 in |
| Dimension H (In.) | 10-1/2 |
| CFM @ 6.000-In. SP | 884 @2750 |
| Dimension R (In.) | 4 |
| Dimension G (In.) | 11-1/2 |
| Dimension L (In.) | 11-3/8 |
| Motor Enclosure | Totally Enclosed Fan Cooled |
| Dimension B (In.) | 15 |
| Max. Blower RPM | 2,920 RPM |
| CFM @ 7.000-In. SP | 785 @2850 RPM |
| Wheel Width (In.) | 4-3/8 |
| Stock No. | 4C131 |
| Dimension A (In.) | 17-5/8 |
| Full Load Amps | 5.9-5.3/2.7 |
| CFM @ 8.000-In. SP | 579 @2920 RPM |
| Housing Material | Steel |
| Dimension M (In.) | 11 |
| CFM @ 2.000-In. SP | 1236 @2450 RPM |
| Housing Width (In.) | 25 |
| Dimension N (In.) | 21 |
| Dimension P (In.) | 8 |
| Phase | 3 |
| Housing Height (In.) | 26 |
| Dimension Q (In.) | 9/16 |
| Hz | 60 |
| Housing Finish | Gray Polyester Epoxy |
| CFM @ 1.000-In. SP | 1321 @2400 RPM |
| Dimension F (In.) | 16 |
| Shaft Dia. (In.) | 1 |
| Max. Inlet Temp. (Deg. F) | 180 |
| Wheel Material | Aluminum |
| CFM @ 3.000-In. SP | 1144 @2500 RPM |
| Dimension C (In.) | 7-1/8 |
| dBA @ 5 Feet | 89 dBA |
| Motor Insulation | Class F |
| Motor RPM | 3,495 RPM |
| Discharge Width (In.) | 5-3/4 |
| Dimension X (In.) | 20 |
| Dimension E (In.) | 13-1/2 |
| Motor Frame | 145T |
| Housing Length (In.) | 23 |
| Dimension T (In.) | 17 |
| Rotation | CW |
| Motor Type | Capacitor-Start Capacitor-Run |
| CFM @ 5.000-In. SP | 987 @2670 RPM |
| Bearing Type | Ball |
| Includes | 1VP4478, 2NKY1, 4C131, 4L330, AK461 |
| Inlet Dia. (In.) | 8 |
| CFM @ 4.000-In. SP | 1084 @2600 RPM |
| Dimension D (In.) | 5-3/4 |
| Dimension J (In.) | 9-5/8 |
| Current | 4.8/2.4 A |
| Inlet Diameter | 8 in |
| Motor Horsepower | 2 HP |
| Airflow @ 5.000 in SP | 987 cfm |
| Standards | CSA Certified, UL Listed |
| Motor Duty Class | Continuous |
| Drive Type | Belt Drive |
| Airflow @ 11.00 in SP | Not Applicable |
| Outlet Diameter | Not Applicable |
| Airflow @ 12.00 in SP | Not Applicable |
| Airflow @ 13.00 in SP | Not Applicable |
| Market | Industrial |
| Airflow @ 4.000 in SP | 1,084 cfm |
| Overall Width | 17-5/8 in |
| Features | Comes Complete with Weatherproof Drive Cover and Dynamically Balanced, Heavy-Duty Die-Cast Aluminum Wheels, Self-Aligning Ball Bearing Pillow Blocks |
| Overall Height | 25-7/8 in |
| Airflow @ 6.000 in SP | 884 cfm |
| Number of Inlets | 1 |
| Number of Speeds | 1 |
| Wheel Diameter | 13-1/2 in |
| Housing Color | Gray |
| Outlet Width | 5-3/4 in |
| Sound Level | 89 dBA @ 5 ft |
| Airflow @ 7.000 in SP | 785 cfm |
| Airflow @ 8.000 in SP | 579 cfm |
| Assembly | Unassembled |
| Shaft Diameter | 1 in |
| Flange Size | Not Applicable |
| Manufacturer Warranty Length | 1 yr (Limited) |
| Motor Frame Designation | 145T |
| Airflow @ 2.000 in SP | 1,236 cfm |
| Nameplate Voltage | 230/460V AC |
| Includes Drive Package | Yes |
| Wheel Type | Radial |
| Maximum Static Pressure | 8 in wc |
| Motor Insulation Class | F |
| Airflow @ 9.000 in SP | Not Applicable |
| Airflow @ 10.00 in SP | Not Applicable |
| Maximum Ambient Temperature | 104 deg F |
| Maximum Inlet Air Temperature | 180 deg F |
| Housing Material Finish | Gray Polyester Epoxy |
| Flange Type | Non-Flanged |
| Minimum Fan Speed | 2,400 rpm |
| Wheel Width | 4-3/8 in |
| Outlet Height | 7-1/8 in |
| Maximum Fan Speed | 2,920 rpm |
| Outlet Shape | Rectangular |
| Housing Material Gauge | 16 ga |
| Airflow @ 1.000 in SP | 1,321 cfm |
| Overall Depth | 23 in |
| Application | Industrial |
| Frequency | 50/60 Hz |
| Housing Height | 26 in |
| Motor Speed | 3,505 rpm |
| Includes Motor | Yes |
| Housing Depth | 23 in |
| Housing Width | 25 in |
| Airflow @ 3.000 in SP | 1,144 cfm |
| Resistance Properties | For Damp Environments |
| OEM Replacement | No |
| Country of Origin (subject to change) | Multiple |
| Package Quantity | 1 |
