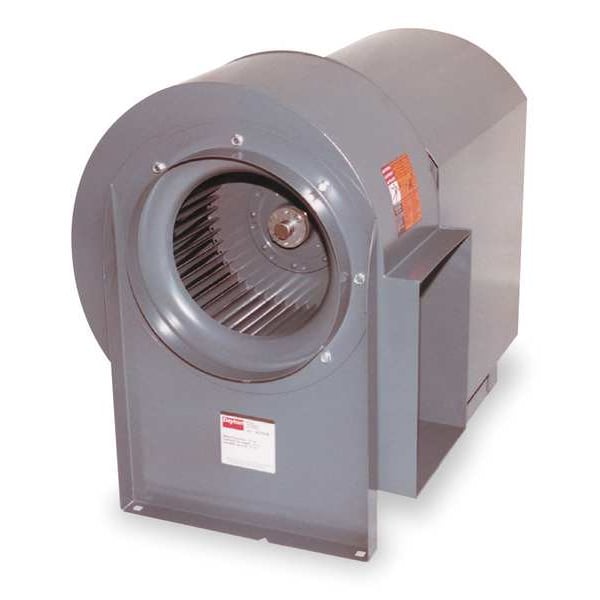

Blower, W/Drive Pkg, 115/230, TEFC, 1725, 56H
| Item | Blower |
|---|---|
| Wheel Dia. (In.) | 12-1/4 |
| Type | With Drive Package |
| Wheel Width (In.) | 6-1/2 |
| Voltage | 208-230/460 |
| Motor HP | 2 |
| CFM @ 0.250-In. SP | # |
| CFM @ 0.500-In. SP | # |
| Assembled/Unassembled | Unassembled |
| Motor Enclosure | Totally Enclosed Fan Cooled |
| Rotation | CW |
| Max. Inlet Temp. (Deg. F) | 250 |
| Max. Ambient Temp. (F) | 104 |
| CFM @ 0.750-In. SP | # |
| CFM @ 0.375-In. SP | # |
| Hz | 60 |
| Includes | Weatherproof Drive Cover |
| CFM @ 1.500-In. SP | # |
| Wheel Material | Steel |
| Discharge Width (In.) | 9-5/8 |
| Inlet Dia. (In.) | 13-1/4 |
| Housing Material | Steel |
| Full Load Amps | 6.6-6.6/3.3 |
| dBA @ 5 Feet | 68 dBA |
| Motor Frame | 56 H |
| Depth (In.) | 22 |
| CFM @ 2.000-In. SP | # |
| Blower RPM | 1,372 RPM |
| Phase | 1 |
| CFM @ 2.500-In. SP | 2,440 cfm |
| Width (In.) | 30 |
| Bearing Type | Ball |
| Footnotes | # Motor Overload Condition |
| Housing Finish | Gray Baked Polyester Epoxy |
| Discharge Height (In.) | 13-1/4 |
| Shaft Dia. (In.) | 1 |
| Height (In.) | 27 |
| Motor Type | Capacitor-Start |
| CFM @ 0.125-In. SP | # |
| CFM @ 1.250-In. SP | # |
| Motor RPM | 1,725 RPM |
| CFM @ 1.000-In. SP | # |
| Drive Type | Belt Drive |
| Wheel Type | Forward-Curved |
| Maximum Ambient Temperature | 104 deg F |
| Includes Motor | Yes |
| Nameplate Voltage | 115/208-230V AC |
| Airflow @ 0.100 in SP | Not Applicable |
| Airflow @ 0.750 in SP | Not Applicable |
| Airflow @ 4.500 in SP | Not Applicable |
| Includes Drive Package | Yes |
| Airflow @ 5.000 in SP | Not Applicable |
| Airflow @ 0.375 in SP | Not Applicable |
| Airflow @ 0.400 in SP | Not Applicable |
| Assembly | Unassembled |
| Airflow @ 9.000 in SP | Not Applicable |
| Airflow @ 11.00 in SP | Not Applicable |
| Airflow @ 3.000 in SP | Not Applicable |
| Number of Speeds | 1 |
| Flange Type | Non-Flanged |
| Airflow @ 0.500 in SP | Not Applicable |
| Airflow @ 3.500 in SP | Not Applicable |
| Airflow @ 1.250 in SP | Not Applicable |
| Motor Frame Designation | 56 H |
| Overall Width | 30 in |
| Outlet Height | 13-1/4 in |
| Current | 18.9/10.3-9.4 A |
| Airflow @ 1.500 in SP | Not Applicable |
| Airflow @ 0.250 in SP | Not Applicable |
| Motor Insulation Class | B |
| Motor Horsepower | 2 HP |
| Outlet Diameter | Not Applicable |
| Airflow @ 2.000 in SP | Not Applicable |
| Inlet Diameter | 13-1/4 in |
| Housing Material Finish | Baked Enamel |
| Sound Level | 68 dBA @ 5 ft |
| Wheel Diameter | 12-1/4 in |
| Airflow @ 10.00 in SP | Not Applicable |
| Flange Size | Not Applicable |
| Shaft Diameter | 1 in |
| Motor Duty Class | Continuous |
| Manufacturer Warranty Length | 1 yr (Limited) |
| Standards | CSA Certified, UL Listed |
| Airflow @ 8.000 in SP | Not Applicable |
| Airflow @ 12.00 in SP | Not Applicable |
| Housing Color | Gray |
| Airflow @ 0.125 in SP | Not Applicable |
| Maximum Fan Speed | 1,372 rpm |
| Wheel Width | 6-1/2 in |
| Airflow @ 7.000 in SP | Not Applicable |
| Maximum Static Pressure | 2.5 in wc |
| Maximum Inlet Air Temperature | 250 deg F |
| Airflow @ 13.00 in SP | Not Applicable |
| Outlet Width | 9-5/8 in |
| Airflow @ 6.000 in SP | Not Applicable |
| Overall Height | 27 in |
| Airflow @ 0.000 in SP | Not Applicable |
| Frequency | 60 Hz |
| Housing Depth | 22 in |
| Airflow @ 4.000 in SP | Not Applicable |
| Number of Inlets | 1 |
| Features | Extra-Quiet, Efficient Blowers Provide High Volume Performance |
| Motor Speed | 1,725 rpm |
| Airflow @ 1.000 in SP | Not Applicable |
| Outlet Shape | Rectangular |
| Housing Height | 27 in |
| Overall Depth | 22 in |
| Airflow @ 2.500 in SP | 2,440 cfm |
| Number of Discharge Positions | 8 |
| Housing Width | 30 in |
| OEM Replacement | No |
| Country of Origin (subject to change) | Multiple |
| Package Quantity | 1 |
