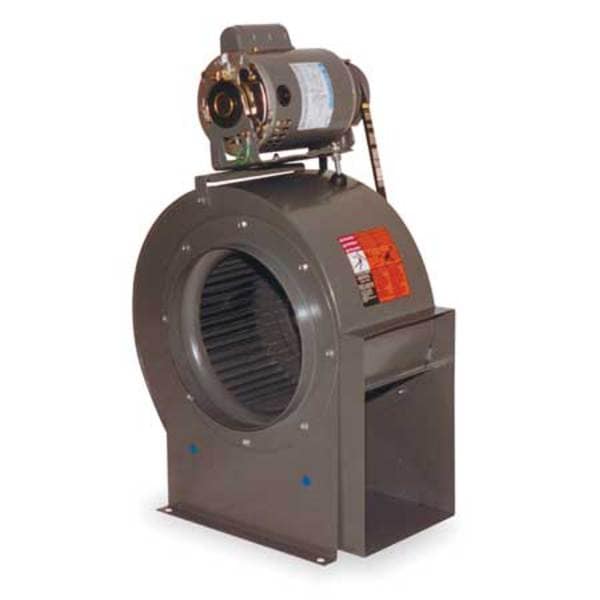

Blower, Wheel Dia 10 5/8 In, 115/208-230 V
| Item | Blower |
|---|---|
| Wheel Dia. (In.) | 10-5/8 |
| Wheel Width (In.) | 5-1/4 |
| Type | With Drive Package |
| Voltage | 115/208-230 |
| Motor HP | 0.5 |
| CFM @ 0.250-In. SP | 1600 |
| CFM @ 0.500-In. SP | 1370 |
| Assembled/Unassembled | Unassembled |
| Motor Enclosure | Totally Enclosed Fan Cooled |
| Full Load Amps | 8.0/4.0-4.0 |
| CFM @ 0.750-In. SP | 1,140 cfm |
| Housing Finish | Gray Baked Polyester Epoxy |
| Shaft Dia. (In.) | 3/4 |
| Blower RPM | 1,000 RPM |
| Max. Ambient Temp. (F) | 104 |
| Hz | 60 |
| Discharge Height (In.) | 11-3/4 |
| Width (In.) | 12 |
| Phase | 1 |
| Motor Type | Capacitor-Start |
| Discharge Width (In.) | 8 |
| CFM @ 0.375-In. SP | 1,480 |
| Inlet Dia. (In.) | 10 |
| Motor Frame | 56 |
| Wheel Material | Steel |
| Rotation | CW |
| CFM @ 0.125-In. SP | 1690 |
| Depth (In.) | 18 |
| Motor RPM | 1,725 RPM |
| dBA @ 5 Feet | 51 dBA |
| Max. Inlet Temp. (Deg. F) | 180 |
| Height (In.) | 19 |
| Housing Material | Steel |
| Bearing Type | Ball |
| Drive Type | Belt Drive |
| Wheel Type | Forward-Curved |
| Number of Inlets | 1 |
| Outlet Width | 8 in |
| Airflow @ 11.00 in SP | Not Applicable |
| Airflow @ 0.125 in SP | 1,690 cfm |
| Motor Horsepower | 0.5 HP |
| Housing Material Finish | Baked Enamel |
| Housing Depth | 18 in |
| Airflow @ 0.250 in SP | 1,600 cfm |
| Manufacturer Warranty Length | 1 yr (Limited) |
| Includes Drive Package | Yes |
| Current | 9.0/4.5-4.3 A |
| Flange Type | Non-Flanged |
| Airflow @ 6.000 in SP | Not Applicable |
| Maximum Static Pressure | 0.75 in wc |
| Outlet Height | 11-3/4 in |
| Shaft Diameter | 3/4 in |
| Airflow @ 13.00 in SP | Not Applicable |
| Airflow @ 3.500 in SP | Not Applicable |
| Housing Width | 10-1/2 in |
| Standards | CSA Certified, UL Listed |
| Airflow @ 2.000 in SP | Not Applicable |
| Outlet Diameter | Not Applicable |
| Frequency | 60 Hz |
| Airflow @ 10.00 in SP | Not Applicable |
| Motor Insulation Class | B |
| Motor Duty Class | Continuous |
| Housing Color | Gray |
| Overall Depth | 18 in |
| Airflow @ 4.500 in SP | Not Applicable |
| Includes Motor | Yes |
| Sound Level | 51 dBA @ 5 ft |
| Overall Height | 19 in |
| Airflow @ 2.500 in SP | Not Applicable |
| Outlet Shape | Rectangular |
| Overall Width | 12 in |
| Airflow @ 5.000 in SP | Not Applicable |
| Airflow @ 8.000 in SP | Not Applicable |
| Motor Speed | 1,725 rpm |
| Airflow @ 7.000 in SP | Not Applicable |
| Nameplate Voltage | 115/208-230V AC |
| Wheel Diameter | 10-5/8 in |
| Motor Frame Designation | 56 |
| Maximum Ambient Temperature | 104 deg F |
| Airflow @ 9.000 in SP | Not Applicable |
| Features | Easily Altered to Required Discharge Position by Drilling New Motor Mounting Holes, Rotating Blower Housing on Base, and Bolting in Position, High Volume at Low Velocity, Motor is Resilient-Mounted and Automatic Reset Thermal-Protected |
| Thermal Overload Protection | Yes |
| Inlet Diameter | 10 in |
| Airflow @ 1.500 in SP | Not Applicable |
| Airflow @ 0.375 in SP | 1,480 cfm |
| Assembly | Unassembled |
| Number of Speeds | 1 |
| Airflow @ 0.750 in SP | 1,140 cfm |
| Airflow @ 1.000 in SP | Not Applicable |
| Airflow @ 3.000 in SP | Not Applicable |
| Housing Height | 19 in |
| Wheel Width | 5-1/4 in |
| Maximum Fan Speed | 1,000 rpm |
| Airflow @ 4.000 in SP | Not Applicable |
| Maximum Inlet Air Temperature | 180 deg F |
| Airflow @ 12.00 in SP | Not Applicable |
| Discharge Position | Bottom Horizontal |
| Airflow @ 0.500 in SP | 1,370 cfm |
| Airflow @ 1.250 in SP | Not Applicable |
| OEM Replacement | No |
| Country of Origin (subject to change) | Multiple |
| Package Quantity | 1 |
