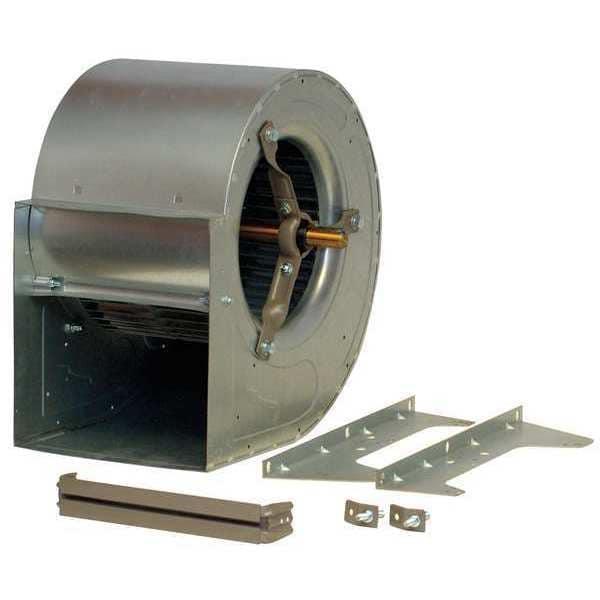

Blwr, 15-1/16in, BD, Less Mtr, Whl 10-15/16w
| Wheel Dia. (In.) | 15-1/16 |
|---|---|
| Item | Blower |
| Type | Double Inlet Forward Curve, Belt Drive, Less Motor |
| Wheel Width (In.) | 10-15/16 |
| Mounting | Multipostion |
| Discharge Height (In.) | 9-11/16 |
| Housing Depth (In.) | 22-11/16 |
| Shaft Dia. | 1 in |
| Bearing Type | Ball |
| Housing Width (In.) | 14-11/16 |
| Housing Height (In.) | 25-3/4 |
| Housing Finish | None |
| Includes | Isolation Grommet, Motor Mounting Bracket, Mounting Hardware |
| Housing Material | Steel |
| Max. Ambient Temp. (F) | 104 |
| Max. Inlet Temp. (Deg. F) | 150 |
| Discharge Width (In.) | 14-11/16 |
| Wheel Material | Steel |
| Drive Type | Belt Drive |
| Rotation | CW, CCW |
| Application | Air Conditioning, Exhausting, General Ventilation, Heating |
| Speed Controllable | No |
| Wheel Type | Forward-Curved |
| Overall Height | 24 in |
| Features | It Offers Precision-Ground Shafting with Both Keyways and Flats for a Wide Range of Drives and Hp, This Blower Has Prelubricated, Sealed Ball Bearings with Rubber Isolators and a Dynamically Balanced Forward Curved Wheel |
| Standards | Not Applicable |
| Overall Width | 20-3/8 in |
| Mounting Orientation | Multiposition |
| Mount Type | Multiposition |
| Compatible Speed Control | Not Applicable |
| Inlet Diameter | 12-3/8 in |
| Number of Inlets | 2 |
| Maximum Inlet Air Temperature | 150 deg F |
| Motor Frame Designation | Not Applicable |
| Outlet Diameter | Not Applicable |
| Assembly | Unassembled |
| Hazardous Location Application | No |
| Minimum Motor Speed | Not Applicable |
| Wheel Material Finish | Galvanized |
| Includes Drive Package | No |
| Wheel Bore Diameter | 1 in |
| Includes Mounting Hardware | Yes |
| Electrical Connection | Not Applicable |
| Outlet Width | 5-7/8 in |
| Shaft Diameter | 1 in |
| Outlet Shape | Rectangular |
| Hazardous Location Specification | Not Applicable |
| Wheel Diameter | 15 in |
| For High-Static Pressure Applications | Yes |
| Housing Material Gauge | 1.5 mm |
| Flange Type | Non-Flanged |
| Housing Depth | 22.8 in |
| For Air Type | General/Clean |
| Corrosion Resistant | Yes |
| OEM Replacement | Not Applicable |
| Housing Material Finish | Galvanized |
| Housing Color | Silver |
| Sound Level | Not Rated |
| Frequency | Not Applicable |
| Overall Depth | 22-3/8 in |
| AMCA Fan Class | Not Rated |
| For Ventilation Type | Exhaust, Make-Up, Return, Supply |
| Thermal Overload Protection | Not Applicable |
| Outlet Height | 15-7/8 in |
| Resistance Properties | Corrosion Resistant |
| Discharge Position | Bottom Horizontal; Down Blast; Top Horizontal; Up Blast |
| Housing Height | 24 in |
| Manufacturer Warranty Length | 1 yr (Limited) |
| Market | Commercial, Residential |
| Chemical Resistant | No |
| Minimum Ambient Temperature | -4 deg F |
| For Location | Indoor |
| Includes Motor | No |
| Spark Resistant Construction Type | Not Applicable |
| Wheel Width | 11 in |
| Minimum Airflow | 2,810 cfm |
| Housing Material Grade | DC51 |
| Brake Horsepower | Not Applicable |
| Motor Location | Not Applicable |
| Maximum Ambient Temperature | 104 deg F |
| Maximum Motor Horsepower | 3 HP |
| Housing Width | 14.6 in |
| Flange Size | Not Applicable |
| Replacement For | Not Applicable |
| Number of Discharge Positions | 4 |
| Current | Not Applicable |
| Maximum Motor Speed | Not Applicable |
| Maximum Fan Speed | 837 RPM |
| Minimum Motor Horsepower | 0.5 HP |
| Maximum Static Pressure | 1.5 in wc |
| Minimum Fan Speed | 402 RPM |
| Maximum Airflow | 5,960 cfm |
| Country of Origin (subject to change) | China |
| Package Quantity | 1 |
