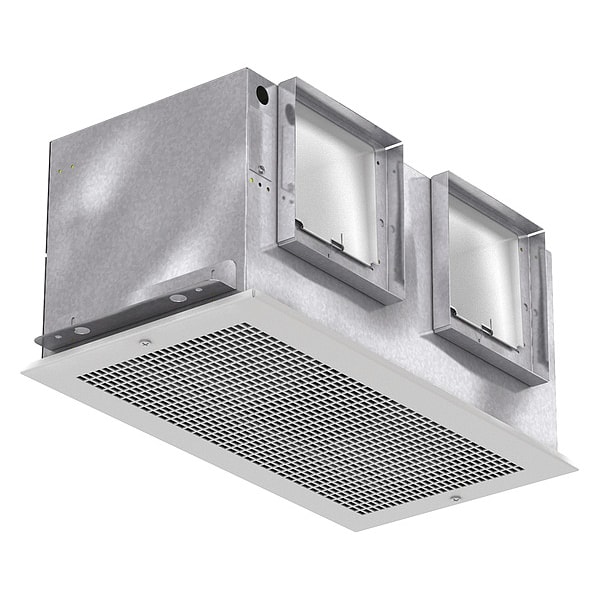

BthExh Fn, 8In Duct, Galv Steel, 115 V
| Includes | Backdraft Damper, Designer Grille, Mounting Brackets |
|---|---|
| Phase | 1 |
| Housing Material | Steel |
| Number of Speeds | 1 |
| Lighted | Without Light |
| Heater | Without Heater |
| Grille Color | White |
| Grille Length | 25 in |
| Standards | AMCA, UL/cUL 507 |
| Grille Width | 13-3/8 in |
| Grille Material | Aluminum |
| Item | Bath Exhaust Fan |
| Noise Level @ 0.000 in SP @ 5 ft | 10.5 sones |
| Wattage | 818 W |
| Overall Depth | 23-3/4 in |
| Exhaust Airflow @ 0.250 in SP | 1,506 cfm |
| Duct Shape | Rectangular |
| Exhaust Airflow @ 0.100 in SP | 1,518 cfm |
| Maximum Airflow | 1,607 cfm |
| For Cut-Out Width | 14-3/4 in |
| Overall Width | 14-3/8 in |
| Full Load Current | 8.6 A |
| Exhaust Airflow @ 0.000 in SP | 1,607 cfm |
| Overall Height | 14-1/2 in |
| Profile Width Family | Double-Wide |
| Blower Wheel Material | Polypropylene |
| Blower Wheel Curve | Forward |
| Includes Grill | Yes |
| Motor Speed | 1,695 RPM |
| Noise Level @ 0.125 in SP @ 5 ft | 10 sones |
| Noise Level @ 0.250 in SP @ 5 ft | 10 sones |
| Grille Finish | Enamel |
| Nameplate Voltage | 115 V AC |
| For Cut-Out Length | 24 in |
| Discharge Direction | Horizontal, Vertical |
| Vent Design | Ducted |
| Includes Light Bulbs | No |
| Mounting Orientation | Horizontal |
| Noise Level @ 0.100 in SP @ 5 ft | 11 sones |
| Sensor Type | None |
| Maximum Noise Level | 13 sones |
| Housing Finish | Galvanized |
| Profile Height Family | High |
| Country of Origin (subject to change) | United States |
| Package Quantity | 1 |
