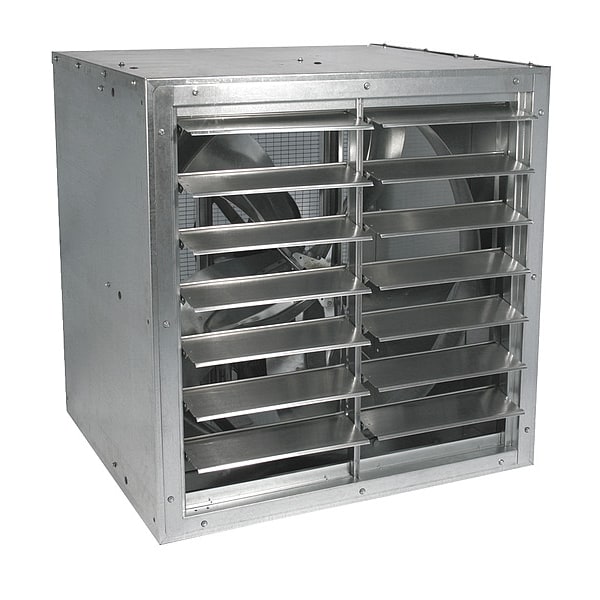

Cabinet Exhaust Fan, 24 In, 115/208-230 V
| Item | Cabinet Exhaust Fan |
|---|---|
| CFM @ 0.250-In. SP | 3,100 cfm |
| Mounting Position | Horizontal |
| Max. Ambient Temp. | 104 Degrees F |
| Dimension B | 34-1/8 in |
| Drive Package Included | Yes |
| Hz | 60 |
| Drive Package With Motor Included | Yes |
| Includes | (4) Wall Mounting Angles |
| Exhaust/Supply Fan Motor HP | 1/2 hp |
| Frame Material | Steel |
| Propeller Material | Fabricated Steel |
| Assembled/Unassembled | Assembled |
| Bearing Type | Regreasable Cast Pillow Block |
| Max. Inlet Temp. | 104 Degrees F |
| Phase | 1 |
| Motor Insulation | Class B |
| Motor Enclosure | Totally Enclosed Air Over |
| Housing Material | Steel |
| Width | 28-1/4 in |
| Drive Type | Belt Drive |
| Fan Voltage | 115/208-230V AC |
| Max. BHP | 0.5721 |
| Full Load Amps | 8.0/4.0-4.0 |
| Sones @ 0.125-In. SP @ 5 Ft. | 12.9 |
| CFM @ 0.125-In. SP | 4,097 cfm |
| Standards | AMCA, CSA Certified Motor, UL/cUL 705 |
| Max. Depth | 34-1/8 in |
| Exhaust/Supply Fan Item | Exhaust Fan |
| Dimension A | 28-1/4 in |
| Number of Blades | 5 |
| Height | 28-1/4 in |
| Motor RPM | 1,725 RPM |
| CFM @ 0.000-In. SP | 5,056 cfm |
| Blade Dia. | 24 in |
| Motor Type | Single Phase |
| Fan RPM | 765 |
| Overall Width | 28-1/4 in |
| Overall Height | 28-1/4 in |
| Voltage | 115/208-230 |
| Frame Finish | Zinc Plated |
| Blade Diameter | 24 in |
| Mounting Orientation | Vertical |
| Housing Finish | Galvanized |
| Guard Type | None |
| Blade Material | Steel |
| Full Load Current | 8 A |
| Number of Speeds | 1 |
| Frequency | 60 Hz |
| Nameplate Voltage | 115/208-230V AC |
| For Cut-Out Length | 29-1/4 in |
| Ventilation Type | Exhaust |
| Vent Design | Ductless |
| Motor Speed | 1,725 rpm |
| Duct Diameter | Not Applicable |
| Guard Material | Steel |
| Assembled | Assembled |
| Guard Finish | Galvanized |
| Includes Dehumidistat | No |
| Exhaust Airflow @ 0.250 in SP | 3,100 cfm |
| Duct Shape | Not Applicable |
| Duct Width | Not Applicable |
| Maximum Inlet Temperature | 104 Degrees F |
| Exhaust Airflow @ 0.000 in SP | 5,056 cfm |
| Maximum Airflow | 5,056 cfm |
| Fan Style | Cabinet |
| Damper Type | Gravity |
| Overall Depth | 34-1/8 in |
| Shaft Diameter | 3/4 in |
| Duct Height | Not Applicable |
| Speed Controllable | No |
| Motor Horsepower | 0.5 HP |
| Includes Grill | No |
| Noise Level @ 0.000 in SP @ 5 ft | 16.1 sones |
| Maximum Ambient Operating Temperature | 104 Degrees F |
| Manufacturer Warranty Length | 1 yr |
| Maximum Noise Level | 16.1 sones |
| Noise Level @ 0.125 in SP @ 5 ft | 13 sones |
| Exhaust Airflow @ 0.125 in SP | 4,097 cfm |
| Includes Motor | Yes |
| Number of Fans | 1 |
| For Cut-Out Width | 29-1/4 in |
| For Cut-Out Height | 29-1/4 in |
| Country of Origin (subject to change) | Mexico |
| Package Quantity | 1 |
