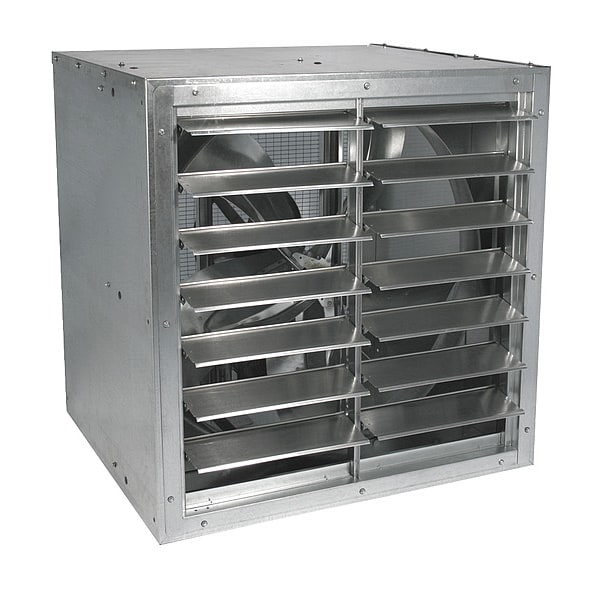

Cabinet Exhaust Fan, 42 In, 115/208-230 V
| Item | Cabinet Exhaust Fan |
|---|---|
| Mounting Position | Horizontal |
| Fan RPM | 422 |
| Bearing Type | Regreasable Cast Pillow Block |
| CFM @ 0.250-In. SP | 7,848 cfm |
| CFM @ 0.000-In. SP | 14,346 cfm |
| Dimension B | 34-5/8 in |
| Phase | 1 |
| Full Load Amps | 13.0/7.0-7.0 |
| Height | 46-1/4 in |
| Motor RPM | 1,725 RPM |
| Max. BHP | 1.1343 |
| Max. Depth | 34-5/8 in |
| Frame Material | Steel |
| Max. Ambient Temp. | 104 Degrees F |
| Number of Blades | 5 |
| Exhaust/Supply Fan Item | Exhaust Fan |
| Drive Type | Belt Drive |
| Max. Inlet Temp. | 104 Degrees F |
| Motor Enclosure | Totally Enclosed Air Over |
| Fan Voltage | 115/208-230V AC |
| Motor Type | Single Phase |
| Blade Dia. | 42 in |
| Dimension A | 46-1/4 in |
| Exhaust/Supply Fan Motor HP | 1 hp |
| Housing Material | Steel |
| Assembled/Unassembled | Assembled |
| CFM @ 0.125-In. SP | 12,157 cfm |
| Drive Package With Motor Included | Yes |
| Sones @ 0.125-In. SP @ 5 Ft. | 17.5 |
| Width | 46-1/4 in |
| Propeller Material | Fabricated Steel |
| Standards | AMCA, CSA Certified Motor, UL/cUL 705 |
| Hz | 60 |
| Includes | (4) Wall Mounting Angles |
| Motor Insulation | Class B |
| Drive Package Included | Yes |
| Voltage | 115/208-230 |
| Overall Height | 46-1/4 in |
| Overall Width | 46-1/4 in |
| Frame Finish | Zinc Plated |
| Mounting Orientation | Vertical |
| Exhaust Airflow @ 0.000 in SP | 14,346 cfm |
| Nameplate Voltage | 115/208-230V AC |
| Blade Material | Steel |
| Guard Type | None |
| Maximum Ambient Operating Temperature | 104 Degrees F |
| Housing Finish | Galvanized |
| Ventilation Type | Exhaust |
| Maximum Inlet Temperature | 104 Degrees F |
| Speed Controllable | No |
| Number of Fans | 1 |
| Duct Diameter | Not Applicable |
| Includes Grill | No |
| Fan Style | Cabinet |
| Motor Speed | 1,725 rpm |
| Guard Material | Steel |
| Number of Speeds | 1 |
| Full Load Current | 12 A |
| Duct Width | Not Applicable |
| Exhaust Airflow @ 0.250 in SP | 7,848 cfm |
| Duct Shape | Not Applicable |
| Motor Horsepower | 1 HP |
| Noise Level @ 0.125 in SP @ 5 ft | 18 sones |
| Blade Diameter | 42 in |
| Includes Dehumidistat | No |
| Includes Motor | Yes |
| Manufacturer Warranty Length | 1 yr |
| Overall Depth | 34-5/8 in |
| Frequency | 60 Hz |
| Exhaust Airflow @ 0.125 in SP | 12,157 cfm |
| Vent Design | Ductless |
| For Cut-Out Width | 47-1/4 in |
| Maximum Noise Level | 19.7 sones |
| Noise Level @ 0.000 in SP @ 5 ft | 19.7 sones |
| Assembled | Assembled |
| Maximum Airflow | 14,347 cfm |
| Shaft Diameter | 1-1/4 in |
| Duct Height | Not Applicable |
| For Cut-Out Height | 47-1/4 in |
| Damper Type | Gravity |
| Guard Finish | Galvanized |
| For Cut-Out Length | 47-1/4 in |
| Country of Origin (subject to change) | United States |
| Package Quantity | 1 |
