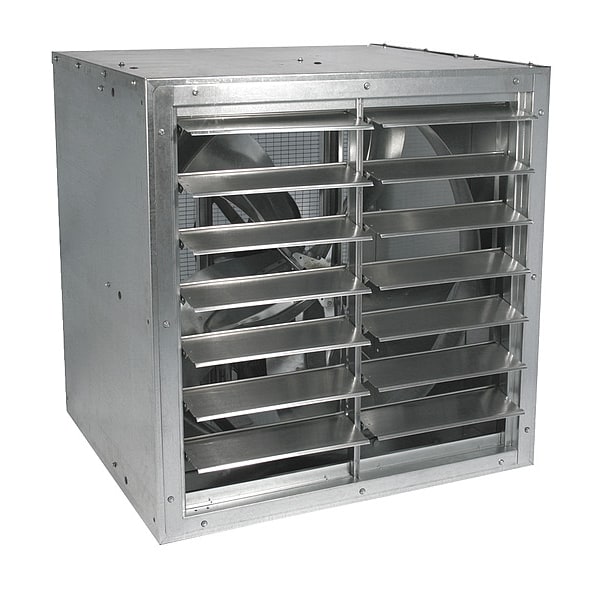

Cabinet Exhaust Fan, 48 In, 208-230/460 V
| Item | Cabinet Exhaust Fan |
|---|---|
| Exhaust/Supply Fan Motor HP | 2 hp |
| Assembled/Unassembled | Assembled |
| CFM @ 0.500-In. SP | 7,140 cfm |
| Standards | AMCA, CSA Certified Motor, UL/cUL 705 |
| Max. Depth | 36-5/8 in |
| Propeller Material | Fabricated Steel |
| Width | 54-1/4 in |
| Dimension A | 54-1/4 in |
| CFM @ 0.125-In. SP | 19,870 cfm |
| Phase | 3 |
| CFM @ 0.375-In. SP | 11,025 cfm |
| CFM @ 0.000-In. SP | 23,174 cfm |
| Max. BHP | 2.2784 |
| Motor Enclosure | Totally Enclosed Air Over |
| Fan Voltage | 208-230/460V AC |
| Max. Inlet Temp. | 104 Degrees F |
| Frame Material | Steel |
| Max. Ambient Temp. | 104 Degrees F |
| Fan RPM | 445 |
| Motor Insulation | Class F |
| Full Load Amps | 6.0-5.6/2.9 |
| Height | 54-1/4 in |
| Mounting Position | Horizontal |
| Number of Blades | 5 |
| Motor RPM | 1,725 RPM |
| CFM @ 0.250-In. SP | 15,154 cfm |
| Motor Type | 3-Phase |
| Sones @ 0.125-In. SP @ 5 Ft. | 20 |
| Drive Type | Belt Drive |
| Green Environmental Attribute | Product Contributes To Reducing Energy Consumption |
| Exhaust/Supply Fan Item | Exhaust Fan |
| Drive Package Included | Yes |
| Drive Package With Motor Included | Yes |
| Housing Material | Steel |
| Includes | (4) Wall Mounting Angles |
| Green Certification or Other Recognition | NEMA Premium Rated |
| Blade Dia. | 48 in |
| Hz | 60 |
| Dimension B | 36-5/8 in |
| Bearing Type | Regreasable Cast Pillow Block |
| Voltage | 208-230/460 |
| Overall Width | 54-1/4 in |
| Overall Height | 54-1/4 in |
| Frame Finish | Zinc Plated |
| Assembled | Assembled |
| For Cut-Out Height | 55-1/4 in |
| Maximum Ambient Operating Temperature | 104 Degrees F |
| Duct Height | Not Applicable |
| Shaft Diameter | 1-1/4 in |
| Number of Speeds | 1 |
| Exhaust Airflow @ 0.250 in SP | 15,154 cfm |
| Number of Fans | 1 |
| Noise Level @ 0.000 in SP @ 5 ft | 19.7 sones |
| Exhaust Airflow @ 0.375 in SP | 11,025 cfm |
| Exhaust Airflow @ 0.125 in SP | 19,870 cfm |
| Maximum Airflow | 23,174 cfm |
| Vent Design | Ductless |
| Ventilation Type | Exhaust |
| Duct Shape | Not Applicable |
| Motor Horsepower | 2 HP |
| Exhaust Airflow @ 0.500 in SP | 7,140 cfm |
| Duct Diameter | Not Applicable |
| Frequency | 60 Hz |
| Includes Grill | No |
| Duct Width | Not Applicable |
| Mounting Orientation | Vertical |
| Exhaust Airflow @ 0.000 in SP | 23,174 cfm |
| Includes Dehumidistat | No |
| Full Load Current | 4.6 A |
| Housing Finish | Galvanized |
| Maximum Noise Level | 19.7 sones |
| Includes Motor | Yes |
| Guard Finish | Galvanized |
| Maximum Inlet Temperature | 104 Degrees F |
| For Cut-Out Length | 55-1/4 in |
| Motor Speed | 1,725 rpm |
| Blade Diameter | 48 in |
| Nameplate Voltage | 208-230/460V AC |
| Blade Material | Steel |
| Speed Controllable | No |
| Manufacturer Warranty Length | 1 yr |
| Guard Type | None |
| Guard Material | Steel |
| Fan Style | Cabinet |
| Overall Depth | 36-5/8 in |
| For Cut-Out Width | 55-1/4 in |
| Damper Type | Gravity |
| Noise Level @ 0.125 in SP @ 5 ft | 20 sones |
| Country of Origin (subject to change) | United States |
| Package Quantity | 1 |
