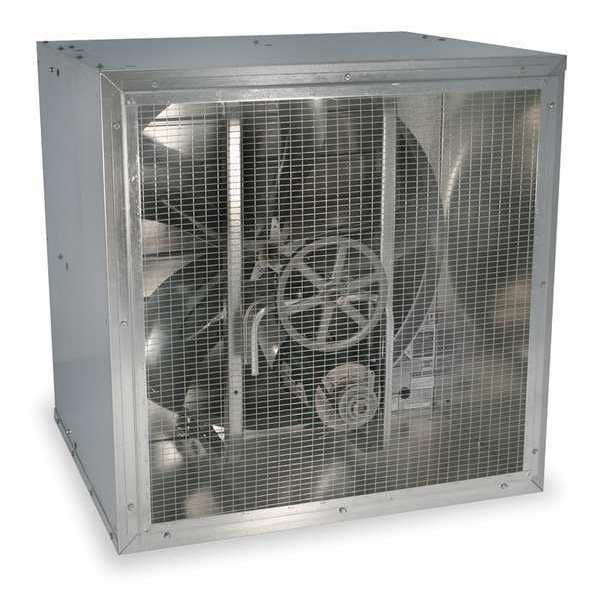

Cabinet Supply Fan, 36 In, 208-230/460 V
| Item | Cabinet Supply Fan |
|---|---|
| Max. BHP | 1.7063 |
| Frame Material | Steel |
| Exhaust/Supply Fan Motor HP | 1 1/2 hp |
| Assembled/Unassembled | Assembled |
| Mounting Position | Horizontal |
| Fan RPM | 619 |
| Phase | 3 |
| CFM @ 0.375-In. SP | 6,637 cfm |
| Hz | 60 |
| Max. Depth | 34-5/8 in |
| Motor Insulation | Class F |
| CFM @ 0.000-In. SP | 13,913 cfm |
| Width | 40-1/4 in |
| Includes | (4) Wall Mounting Angles |
| Fan Voltage | 208-230/460V AC |
| Max. Ambient Temp. | 104 Degrees F |

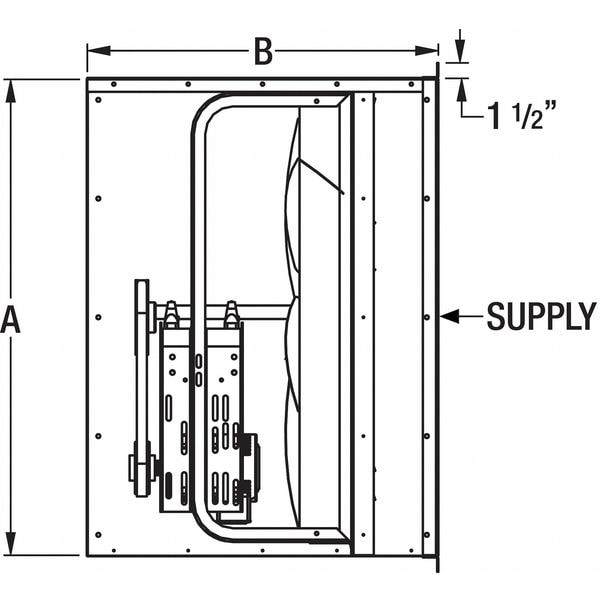

| Dimension A | 40-1/4 in |
| Drive Package Included | Yes |
| CFM @ 0.125-In. SP | 12,435 cfm |
| Drive Package With Motor Included | Yes |
| Motor RPM | 1,725 RPM |
| Sones @ 0.125-In. SP @ 5 Ft. | 21 |
| Motor Type | 3-Phase |
| Motor Enclosure | Totally Enclosed Air Over |
| Full Load Amps | 4.6-4.2/2.1 |
| Max. Inlet Temp. | 104 Degrees F |
| Drive Type | Belt Drive |
| Number of Blades | 5 |
| Height | 40-1/4 in |
| Standards | AMCA, CSA Certified Motor, UL/cUL 705 |
| Green Environmental Attribute | Product Contributes To Reducing Energy Consumption |
| Green Certification or Other Recognition | NEMA Premium Rated |
| Bearing Type | Regreasable Cast Pillow Block |
| CFM @ 0.250-In. SP | 10,110 cfm |
| Dimension B | 34-5/8 in |
| Exhaust/Supply Fan Item | Supply Fan |
| Propeller Material | Fabricated Steel |
| Blade Dia. | 36 in |
| Housing Material | Steel |
| Overall Width | 40-1/4 in |
| Overall Height | 40-1/4 in |
| Voltage | 208-230/460 |
| Flange Width | 40-1/4 in |
| Frame Finish | Zinc Plated |
| Maximum Inlet Temperature | 104 Degrees F |
| Motor Horsepower | 1.5 HP |
| Housing Finish | Galvanized |
| For Cut-Out Length | 41-1/4 in |
| Frequency | 60 Hz |
| Exhaust Airflow @ 0.250 in SP | 10,110 cfm |
| Maximum Ambient Operating Temperature | 104 Degrees F |
| Exhaust Airflow @ 0.125 in SP | 12,435 cfm |
| Supply Airflow @ 0.125 in SP | 12,435 cfm |
| Duct Shape | Not Applicable |
| Manufacturer Warranty Length | 1 yr |
| Blade Material | Steel |
| Ventilation Type | Supply |
| Duct Width | Not Applicable |
| Blade Diameter | 36 in |
| Noise Level @ 0.000 in SP @ 5 ft | 23 sones |
| Shaft Diameter | 1 in |
| Mounting Orientation | Vertical |
| Noise Level @ 0.125 in SP @ 5 ft | 21 sones |
| Overall Depth | 34-5/8 in |
| Duct Diameter | Not Applicable |
| Supply Airflow @ 0.000 in SP | 13,913 cfm |
| Vent Design | Ductless |
| For Cut-Out Height | 41-1/4 in |
| Duct Height | Not Applicable |
| Nameplate Voltage | 208-230/460V AC |
| Maximum Noise Level | 23 sones |
| Speed Controllable | No |
| Supply Airflow @ 0.375 in SP | 6,637 cfm |
| Includes Motor | Yes |
| Exhaust Airflow @ 0.000 in SP | 13,913 cfm |
| Maximum Airflow | 1,391 cfm |
| Number of Fans | 1 |
| Supply Airflow @ 0.250 in SP | 10,110 cfm |
| Number of Speeds | 1 |
| Includes Grill | No |
| Includes Dehumidistat | No |
| Assembled | Assembled |
| Exhaust Airflow @ 0.375 in SP | 6,637 cfm |
| For Cut-Out Width | 41-1/4 in |
| Motor Speed | 1,725 rpm |
| Fan Style | Cabinet |
| Full Load Current | 4.6 A |
| Country of Origin (subject to change) | United States |
| Package Quantity | 1 |
