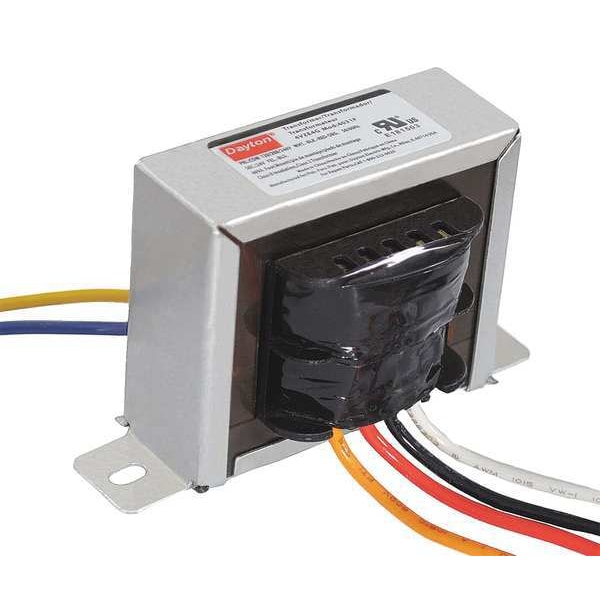

Class 2 Transformer, 40 VA, Not Rated, 65°C, 24V AC, 120/208/240V AC
| Item | Class 2 Transformer |
|---|---|
| Input Voltage - Transformer | 120/208/240V AC |
| Mounting - Transformer | Foot |
| Hz - Electrical | 50/60 Hz |
| VA Rating - Transformer | 40 VA |
| Enclosure Rating | Not Rated |
| Standards | cURus, UL File No. E181503 |
| Protective Device | Primary Fuse |
| Width | 3.7 in |
| Secondary Connection | Wire Leads |
| Primary Connection | Leads |
| Enclosure Style - Transformer | Open |
| Enclosure Finish | No Finish |
| Enclosure Type | Frame |
| Output Voltage - Transformer | 24V AC |
| Temp. Rise | 65 deg C |
| Height | 2.2 in |
| Includes | 2A 130 Degrees C 250V AC Primary Thermal Breaker |
| Depth | 2.1 in |
| Phase - Electrical | 1 |
| Connection - Primary | Wire Lead |
| Connection - Secondary | Wire Lead |
| Package Quantity | 1 |
