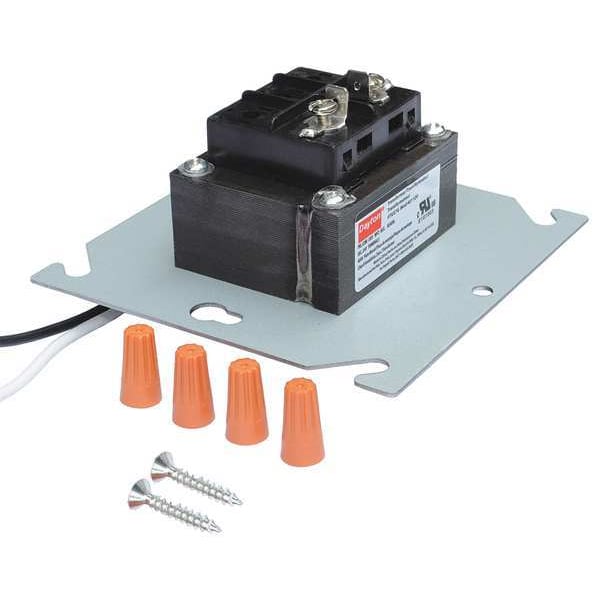

Class 2 Transformer, 40 VA, Not Rated, 65°C, 24V AC, 120V AC
| Item | Class 2 Transformer |
|---|---|
| Input Voltage - Transformer | 120V AC |
| Mounting - Transformer | Plate |
| Hz - Electrical | 50/60 Hz |
| Phase - Electrical | 1 |
| Enclosure Finish | No Finish |
| VA Rating - Transformer | 40 VA |
| Standards | cURus, UL File No. E181503 |
| Enclosure Rating | Not Rated |
| Enclosure Style - Transformer | Open |
| Includes | 2A 130 Degrees C 250V AC Primary Thermal Breaker |
| Depth | 4.1 in |
| Width | 4.1 in |
| Temp. Rise | 65 deg C |
| Output Voltage - Transformer | 24V AC |
| Height | 2.1 in |
| Protective Device | Circuit Breaker |
| Primary Connection | Leads |
| Secondary Connection | Screw Terminals |
| Connection - Primary | Wire Lead |
| Connection - Secondary | Screw Terminal |
| Wire Lead Length - Secondary | Not Applicable |
| Package Quantity | 1 |
