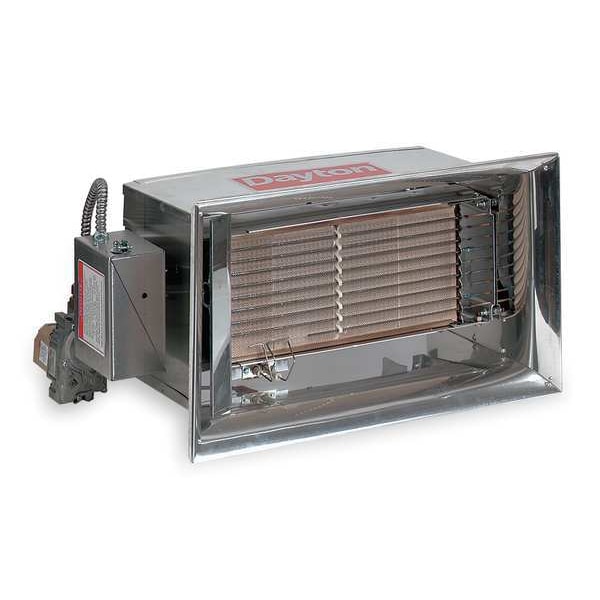

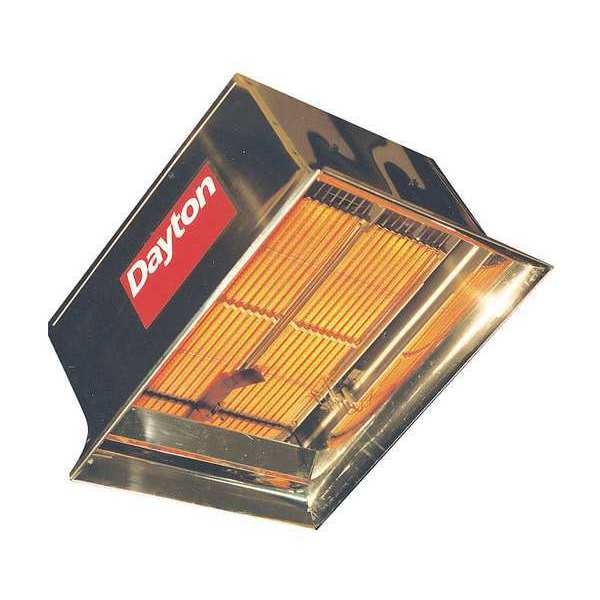

Commercial Infrared Heater, LP, 60,000 BtuH Input, 22 1/2 in H x
| Item | Gas Infrared Flat Panel Heater |
|---|---|
| Width | 19-1/8 in |
| Gas Type | LP |
| BtuH Input | 60,000 |
| Height | 22 1/2 in |
| Depth | 15-1/4 in |
| Floor Dia. @ Mounting H | 21-26 ft @ 14-17 ft |
| Hz | 60 |
| Heater Voltage | 24 V AC |
| Clearance to Combustibles Below/Front | 72 in |
| Includes | Chain Hanging Set |
| Typical Sq. Ft. Coverage @ Mtg. Ht. | 325-400 @ 14-16 ft |
| Gas Inlet | 1/2 in NPT |
| Clearance to Combustibles Top | 40 in |
| Radiant Surface | 170 sq in |
| Clearance to Combustibles Behind | 18 in |
| Clearance to Combustibles Side | 32 in |
| Heating Area | 324 sq ft |
| Ignition Type | Direct Spark |
| Standards | CSA Certified |
| Overall Width | 19-1/8 in |
| Overall Height | 22 1/2 in |
| Floor Coverage @ Minimum Mounting Height | 16 ft x 16 ft |
| Fuel Type | Propane |
| Mounting Location | Ceiling |
| Heating Capacity Input | 60,000 BtuH |
| Mounting Height | 14 to 16 ft |
| For Use Outdoors | Indoor Use Only |
| Venting | Vent-Free |
| Gas Connection Size | 1/2 in |
| Frequency | 60 Hz |
| Fuel Consumption | 0.62 gph |
| Min. Mounting Height | 12 to 14 ft |
| Reflector Material | Highly Polished Aluminum |
| Thermostat Included | No |
| Element Type | Ceramic Tile |
| Control Voltage | 24 V AC |
| Heat Output | 60,000 BtuH |
| Overall Depth | 15 1/4 in |
| Gas Connection Type | NPT |
| Operating Temperature | 1,780 Degrees F |
| Typical Coverage @ Mounting Height | 18 ft x 18 ft |
| Heating Method | Infrared |
| Radiant Surface Area | 170 sq in |
| Clearance to Combustibles - Top x Below x Sides | 40 in x 72 in x 32 in |
| Product Type | Suspended Infrared Flat Panel Heater |
| Overall Dimensions - H x W x D | 22 1/2 in x 19 1/8 in x 15 1/4 in |
| For Use Indoors/Outdoors | Indoor Use Only |
| Country of Origin (subject to change) | United States |
| Package Quantity | 1 |
