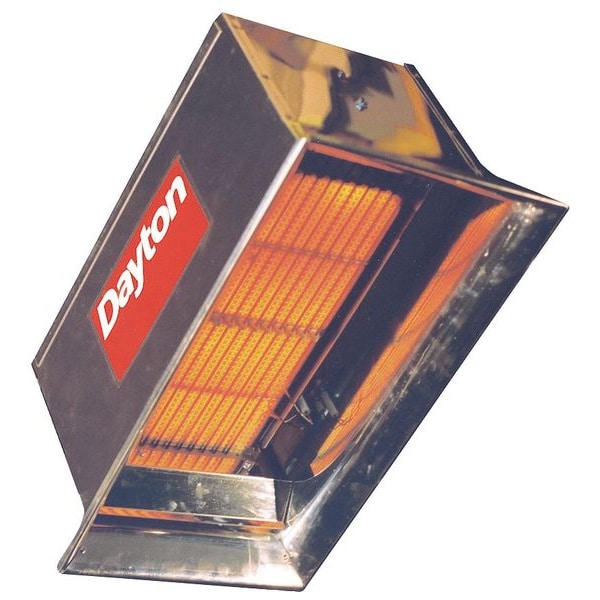

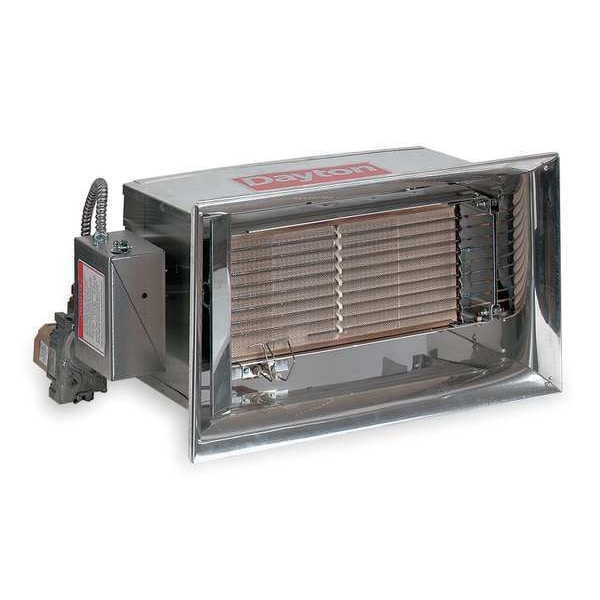

Commercial Infrared Heater, NG, 30,000 BtuH Input, 22 1/2 in H x
| Item | Gas Infrared Flat Panel Heater |
|---|---|
| Width | 12-3/4 in |
| Gas Type | NG |
| BtuH Input | 30,000 |
| Height | 22 1/2 in |
| Depth | 14-1/4 in |
| Clearance to Combustibles Below/Front | 72 in |
| Hz | 60 |
| Radiant Surface | 85 sq in |
| Includes | Chain Hanging Set |
| Clearance to Combustibles Side | 30 in |
| Gas Inlet | 1/2 in NPT |
| Heater Voltage | 24 V AC |
| Typical Sq. Ft. Coverage @ Mtg. Ht. | 145-200 @ 12-14 ft |
| Clearance to Combustibles Behind | 18 in |
| Floor Dia. @ Mounting H | 10-14 ft @ 12-14 ft |
| Clearance to Combustibles Top | 28 in |
| Heating Area | 144 sq ft |
| Ignition Type | Direct Spark |
| Overall Width | 12-3/4 in |
| Overall Height | 22 1/2 in |
| Standards | CSA Certified |
| Thermostat Included | No |
| Frequency | 60 Hz |
| Floor Coverage @ Minimum Mounting Height | 10 ft x 10 ft |
| Overall Dimensions - H x W x D | 22 1/2 in x 12 3/4 in x 15 1/4 in |
| Gas Connection Type | NPT |
| Heating Method | Infrared |
| Gas Connection Size | 1/2 in |
| Heating Capacity Input | 30,000 BtuH |
| Radiant Surface Area | 85 sq in |
| Fuel Type | Natural Gas |
| Mounting Height | 10 to 12 ft |
| For Use Outdoors | Indoor Use Only |
| Control Voltage | 24 V AC |
| Clearance to Combustibles - Top x Below x Sides | 28 in x 72 in x 30 in |
| Product Type | Suspended Infrared Flat Panel Heater |
| Fuel Consumption | 0.288 thm/hr |
| Heat Output | 30,000 BtuH |
| Element Type | Ceramic Tile |
| Overall Depth | 15 1/4 in |
| Venting | Vent-Free |
| Operating Temperature | 1,780 Degrees F |
| Min. Mounting Height | 9 to 10 ft |
| Typical Coverage @ Mounting Height | 12 ft x 12 ft |
| Reflector Material | Highly Polished Aluminum |
| Mounting Location | Ceiling |
| For Use Indoors/Outdoors | Indoor Use Only |
| Country of Origin (subject to change) | United States |
| Package Quantity | 1 |
