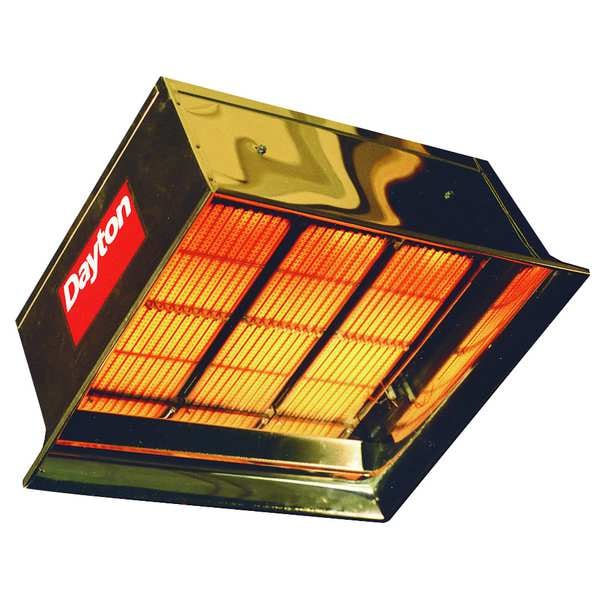

Commercial Infrared Heater, NG, 90,000 BtuH Input, 22 1/2 in H x
| Item | Gas Infrared Flat Panel Heater |
|---|---|
| Width | 26-5/8 in |
| Gas Type | NG |
| BtuH Input | 90,000 |
| Height | 22 1/2 in |
| Depth | 15-1/4 in |
| Includes | Chain Hanging Set |
| Radiant Surface | 255 sq in |
| Clearance to Combustibles Side | 48 in |
| Floor Dia. @ Mounting H | 20-28 ft @ 16-18 ft |
| Hz | 60 |
| Clearance to Combustibles Behind | 30 in |
| Typical Sq. Ft. Coverage @ Mtg. Ht. | 575-785 @ 16-18 ft |
| Heater Voltage | 24 V AC |
| Gas Inlet | 1/2 in NPT |
| Clearance to Combustibles Top | 42 in |
| Clearance to Combustibles Below/Front | 98 in |
| Heating Area | 576 sq ft |
| Ignition Type | Direct Spark |
| Standards | CSA Certified |
| Overall Height | 22 1/2 in |
| Overall Width | 26-5/8 in |
| Heat Output | 90,000 BtuH |
| Gas Connection Type | NPT |
| Product Type | Suspended Infrared Flat Panel Heater |
| Radiant Surface Area | 255 sq in |
| Overall Dimensions - H x W x D | 22 1/2 in x 26 5/8 in x 15 1/4 in |
| Venting | Vent-Free |
| Clearance to Combustibles - Top x Below x Sides | 42 in x 98 in x 48 in |
| Floor Coverage @ Minimum Mounting Height | 20 ft x 20 ft |
| Thermostat Included | No |
| Frequency | 60 Hz |
| Fuel Consumption | 0.865 thm/hr |
| Overall Depth | 15 1/4 in |
| Control Voltage | 24 V AC |
| Mounting Height | 18 to 20 ft |
| Typical Coverage @ Mounting Height | 24 ft x 24 ft |
| Fuel Type | Natural Gas |
| Min. Mounting Height | 16 to 18 ft |
| Heating Capacity Input | 90,000 BtuH |
| Mounting Location | Ceiling |
| Element Type | Ceramic Tile |
| Heating Method | Infrared |
| Reflector Material | Highly Polished Aluminum |
| For Use Outdoors | Indoor Use Only |
| Gas Connection Size | 1/2 in |
| Operating Temperature | 1,780 Degrees F |
| For Use Indoors/Outdoors | Indoor Use Only |
| Country of Origin (subject to change) | United States |
| Package Quantity | 1 |
